Noctua Noctua NH-U14S TR5-SP6 - Prozessor-Luftkühler - (für: sTR5, SP6) CPU cooler + fan
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.

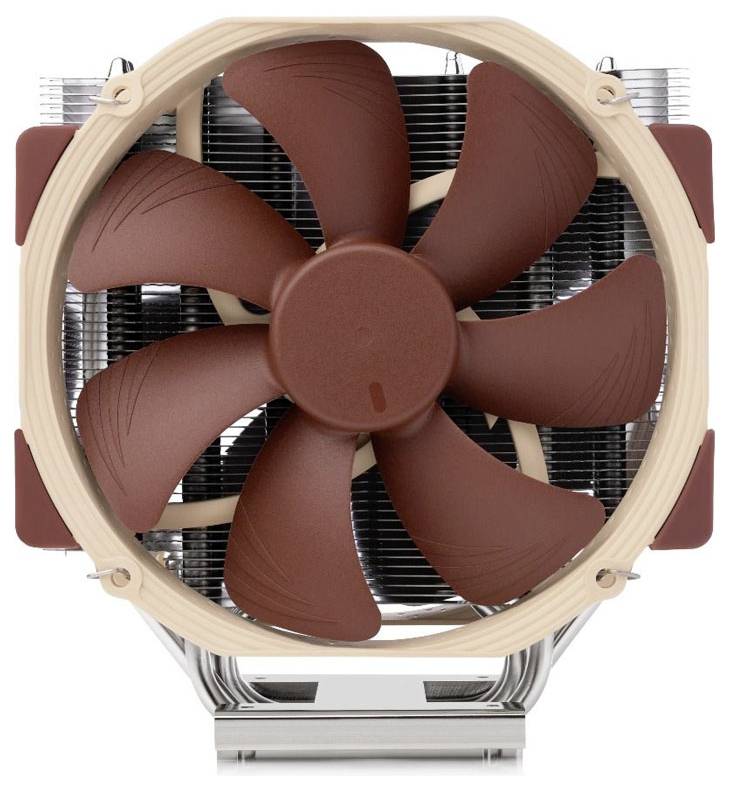

Noctua Noctua NH-U14S TR5-SP6 - Prozessor-Luftkühler - (für: sTR5, SP6) CPU cooler + fan
Technical specifications
- Dimensions - without fan 150 x 165 x 52 mm (W x H x D)
- Material: Nickel-plated copper (base plate, heat pipes), aluminum (lamellae)
- Heat pipes: 6x Ø 6 mm
- 2x 140 mm Noctua NF-A15 HS-PWM
- Power consumption 1.56 W
- Operating voltage 12 V.
- MTBF> 150,000 h
- Compatibility: AMD sTRX5, sWRX9, SP6
- Depth
111 mm
- Height
165 mm
- Width
150 mm
- Connection
4-pin PWM
- Fan dimensions
140 x 140 mm
- Features
Twin fan unit
Heat pipe
- Air discharge
140.2 m³/h
- Noise emission (max.)
24.6 dB
- Rotational speed (max.)
1200 U/min
- Weight
1136 g
- UKCA
yes
Description
The Noctua Noctua NH-U14S TR5-SP6 CPU-cooler is the ultimate cooling system for high-end systems, specially developed for AMD Ryzen Threadripper processors. With its design this air cooler offers an excellent cooling performance, which is impressive thanks to precise engineering and high-quality materials even under extreme loads.
Efficient cooling for high performance
Its four heat pipes in combination with a large heat sink ensure optimal heat dissipation, while specially adjusted fans ensure a constant air flow. The result is efficient cooling, even in the hottest moments of system operation.
Thanks to its remarkable compatibility, the NH-U14S fits seamlessly into systems. Its quiet performance, supported by proven Noctua technology, guarantees efficient cooling with minimum noise.
Easy installation, top quality and performance
The installation is straightforward, even for less experienced users – the NH-U14S TR5-SP6 offers an easy setup. This cooler sets new standards for high-performance systems and ensures optimum operating conditions, no matter how demanding your requirements are.
This text is machine translated.
Efficient cooling for high performance
Its four heat pipes in combination with a large heat sink ensure optimal heat dissipation, while specially adjusted fans ensure a constant air flow. The result is efficient cooling, even in the hottest moments of system operation.
Thanks to its remarkable compatibility, the NH-U14S fits seamlessly into systems. Its quiet performance, supported by proven Noctua technology, guarantees efficient cooling with minimum noise.
Easy installation, top quality and performance
The installation is straightforward, even for less experienced users – the NH-U14S TR5-SP6 offers an easy setup. This cooler sets new standards for high-performance systems and ensures optimum operating conditions, no matter how demanding your requirements are.
This text is machine translated.
Hints
Important: Please note that the NH-U14S TR5-SP6 4U is a special version for AMD TR5/SP6 (sTRX5/sWRX9) sockets. Due to the adjusted larger contact area, it cannot be used on smaller sockets and is not compatible with the Noctua mounting sets for this socket.
