Norma Connector piece 7027004020 Normaquick PS3 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

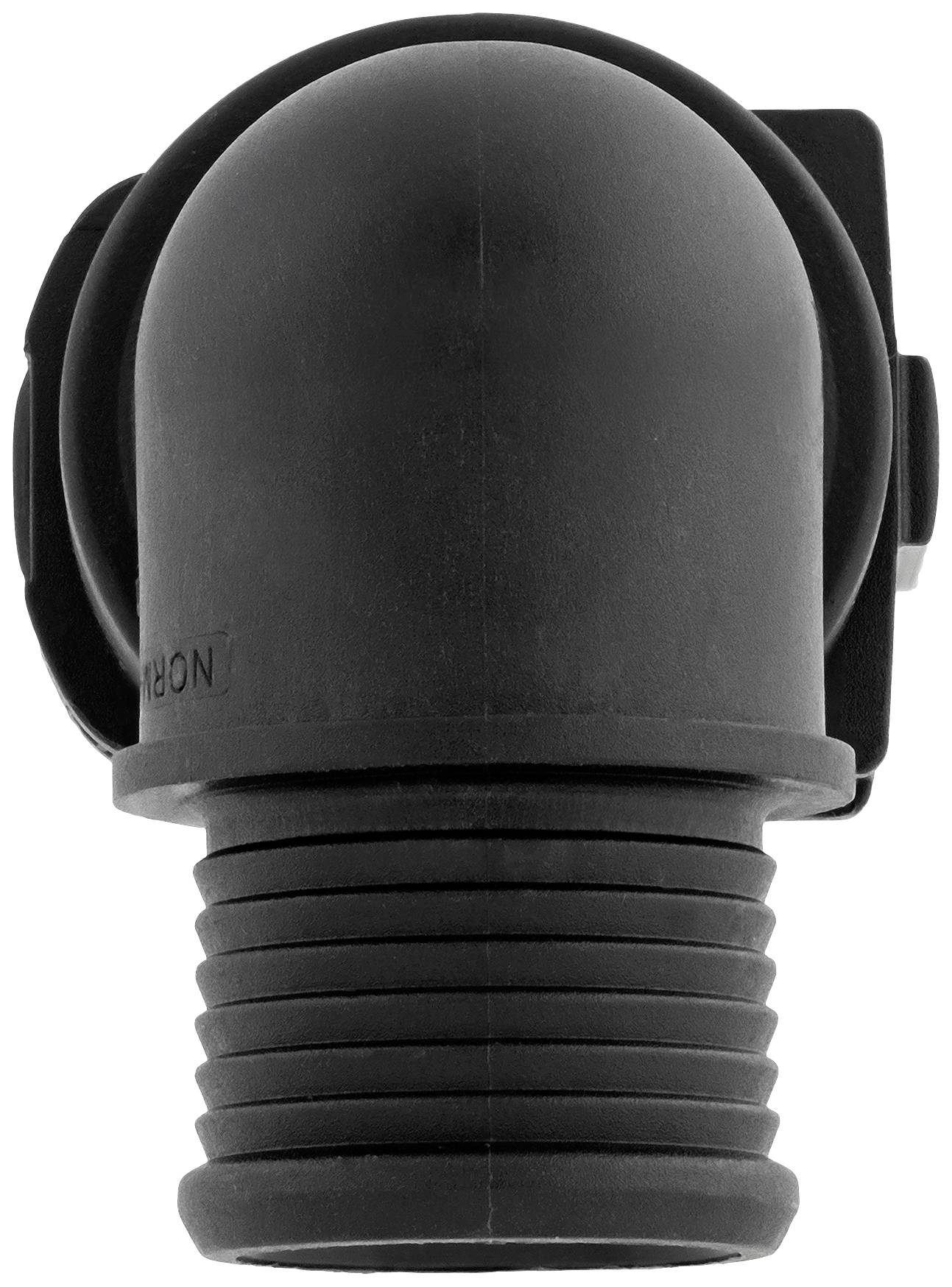

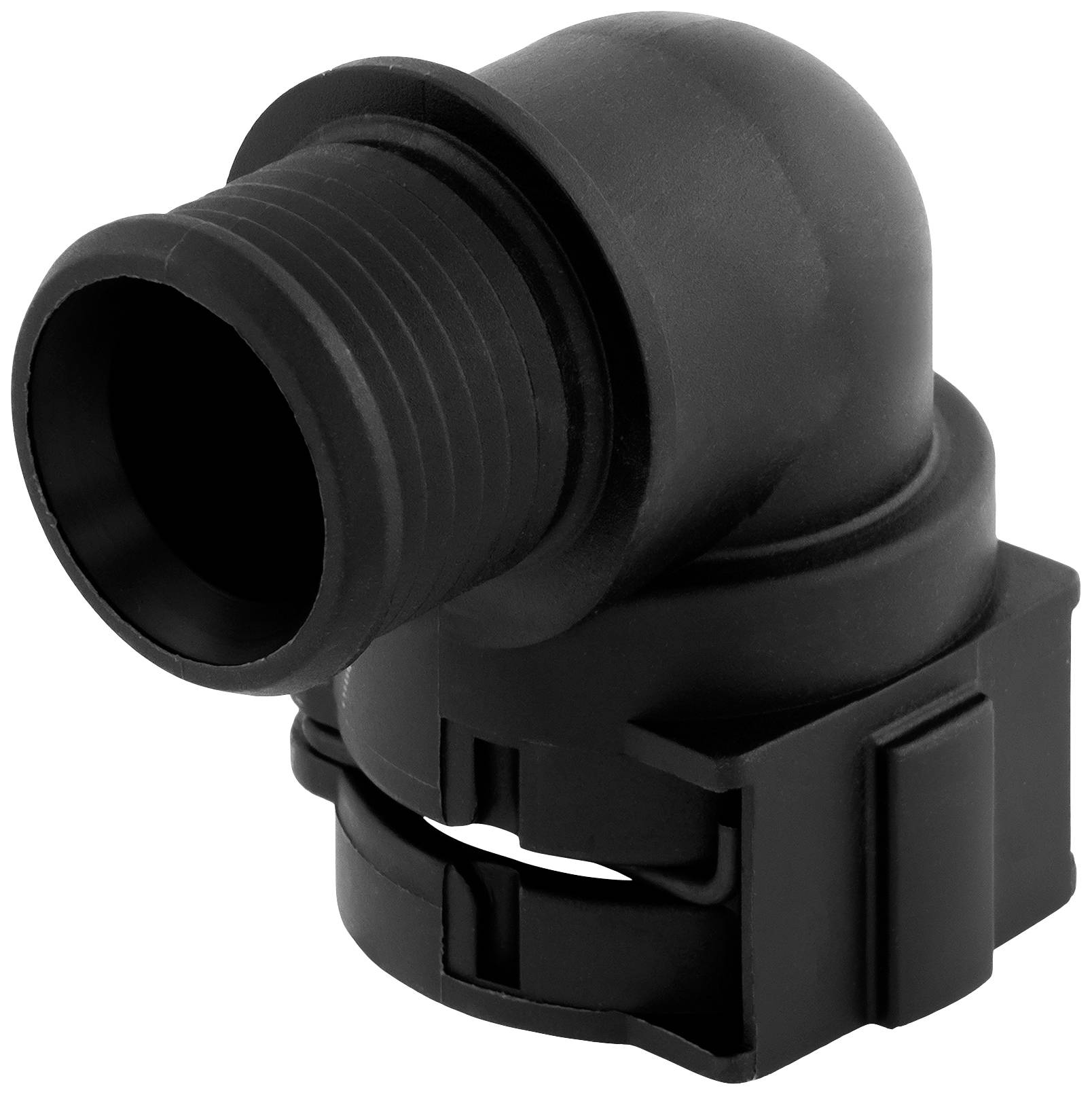

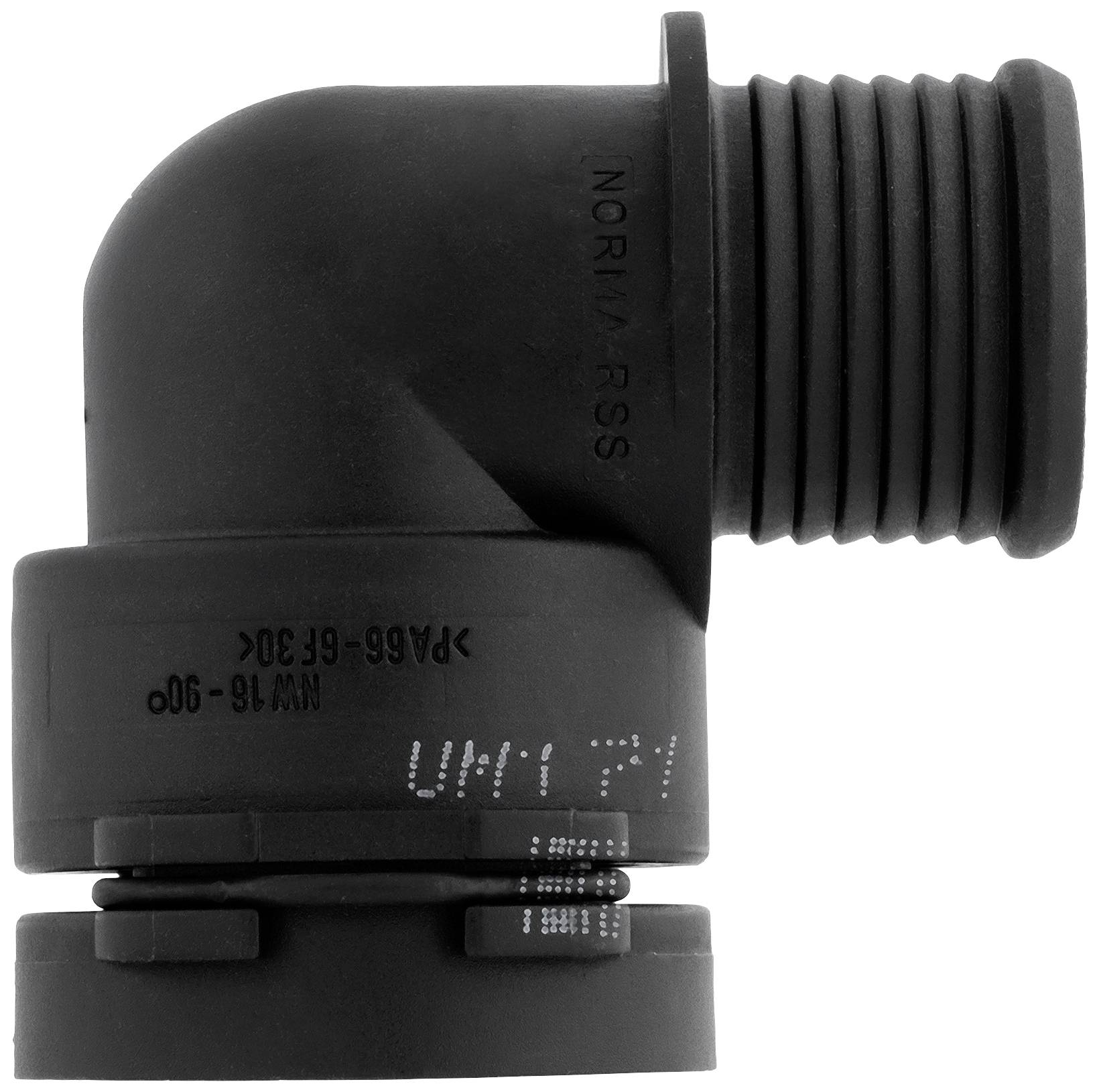

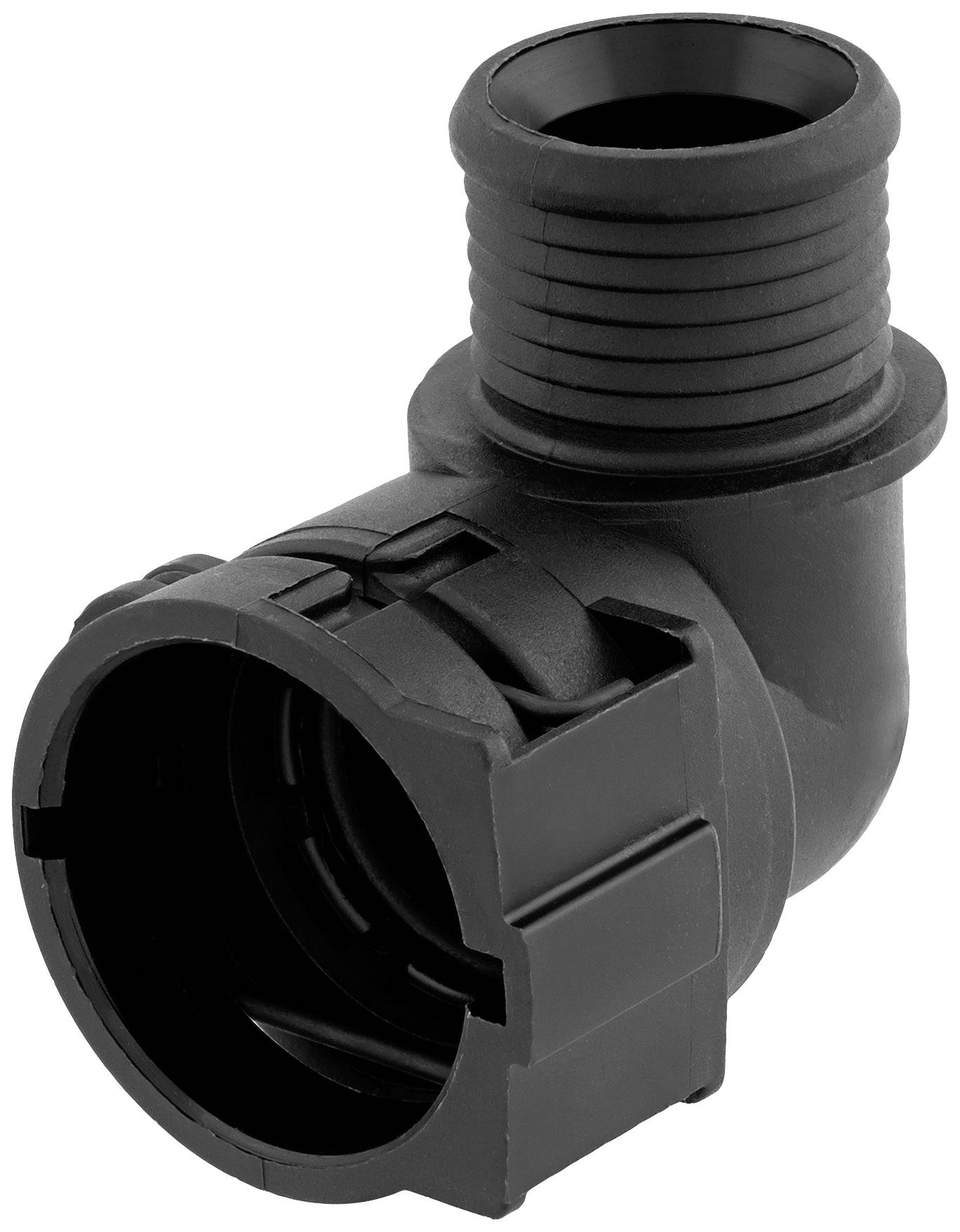

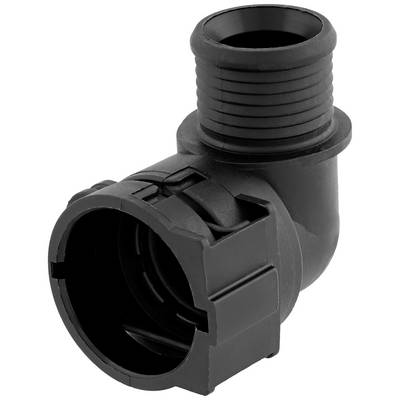

Normaquick PS3 NW 20, 90°
- Intended for mounting on standard connection supports according to the VDA guidelineResistance to the cooling medium thanks to an O-ring made from peroxidisically networked EPDMPA66 (housing and retaining ring GF30) stabilized for direct contact with coolant against heat and hydrolysis effects
Technical specifications
- Material housing: Polyamide 66 with 30% glass fiber reinforcedMaterial O-ring: EPDMMaterial retaining ring: Polyamide 66 with 30% glass fiber reinforced, stainless steel
- Product type
Connector piece
- Manufacturer part #
7027004020
- Type
90 degrees
- Operating medium
Kühlmittel
- Material
PA 66 GF 30
- Material properties
fibreglass-reinforced
- (Ø)
20 mm
Documents & Downloads
Datasheet
Datasheet 2827492 Norma Connector piece 7027004020 Normaquick PS3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2827492 Norma Connector piece 7027004020 Normaquick PS3 1 pc(s)
Description
Secure connection of cooling water and heating linesPS3 "Push & Seal" plug-in connectors made of plastic according to the VDA standard are suitable Ideal for safe connection of cooling water and heating pipes as well as for use in charging air systems.Application:PS3 plug-in connectors are used for the tight connection of cooling water or heating hoses in passenger cars and commercial vehicles.Benefits:Time and cost saving through tool-free rest mountingUse in the smallest of spaces thanks to the compact dimensionsIntegrated O-ring provides optimum sealing
