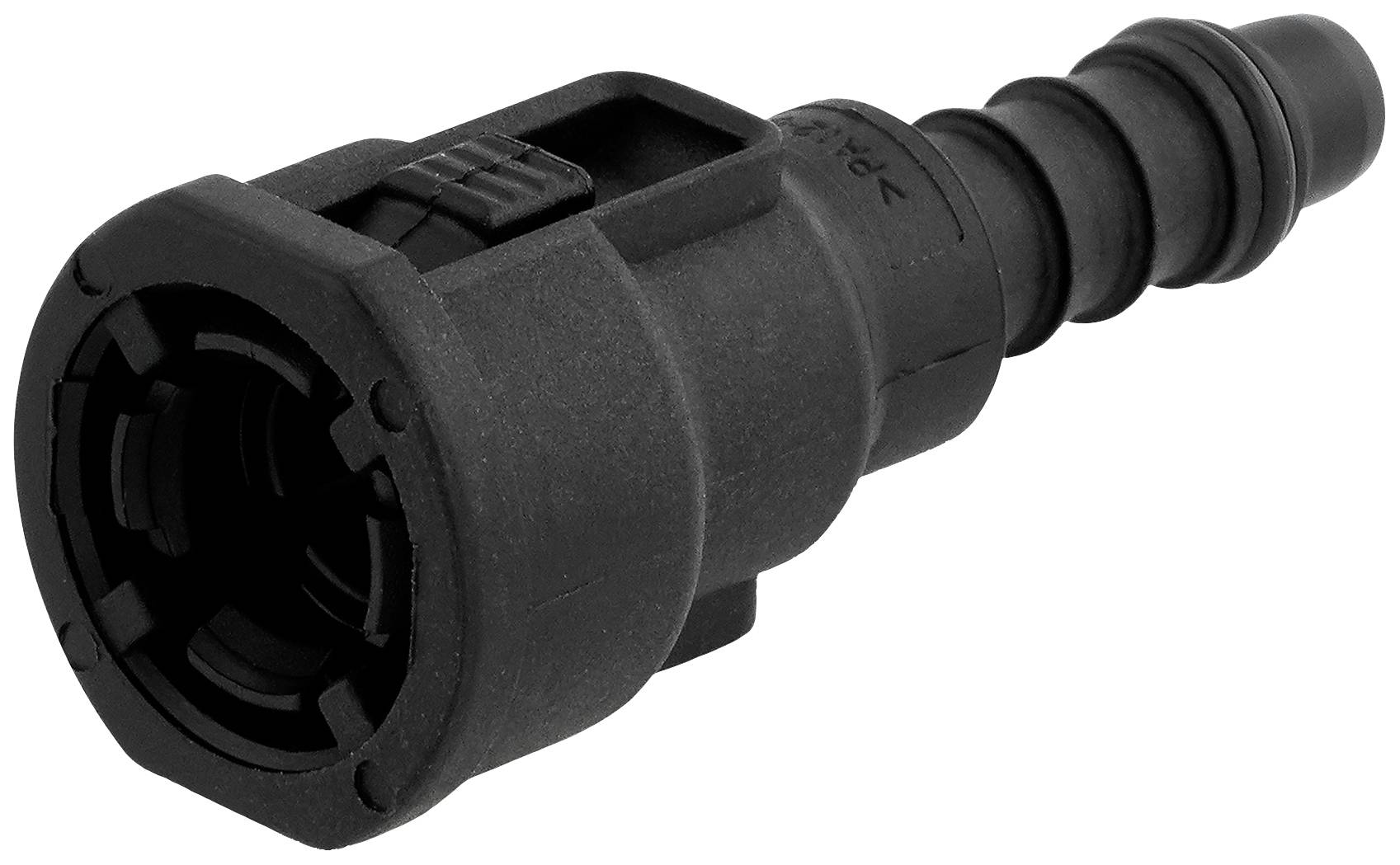

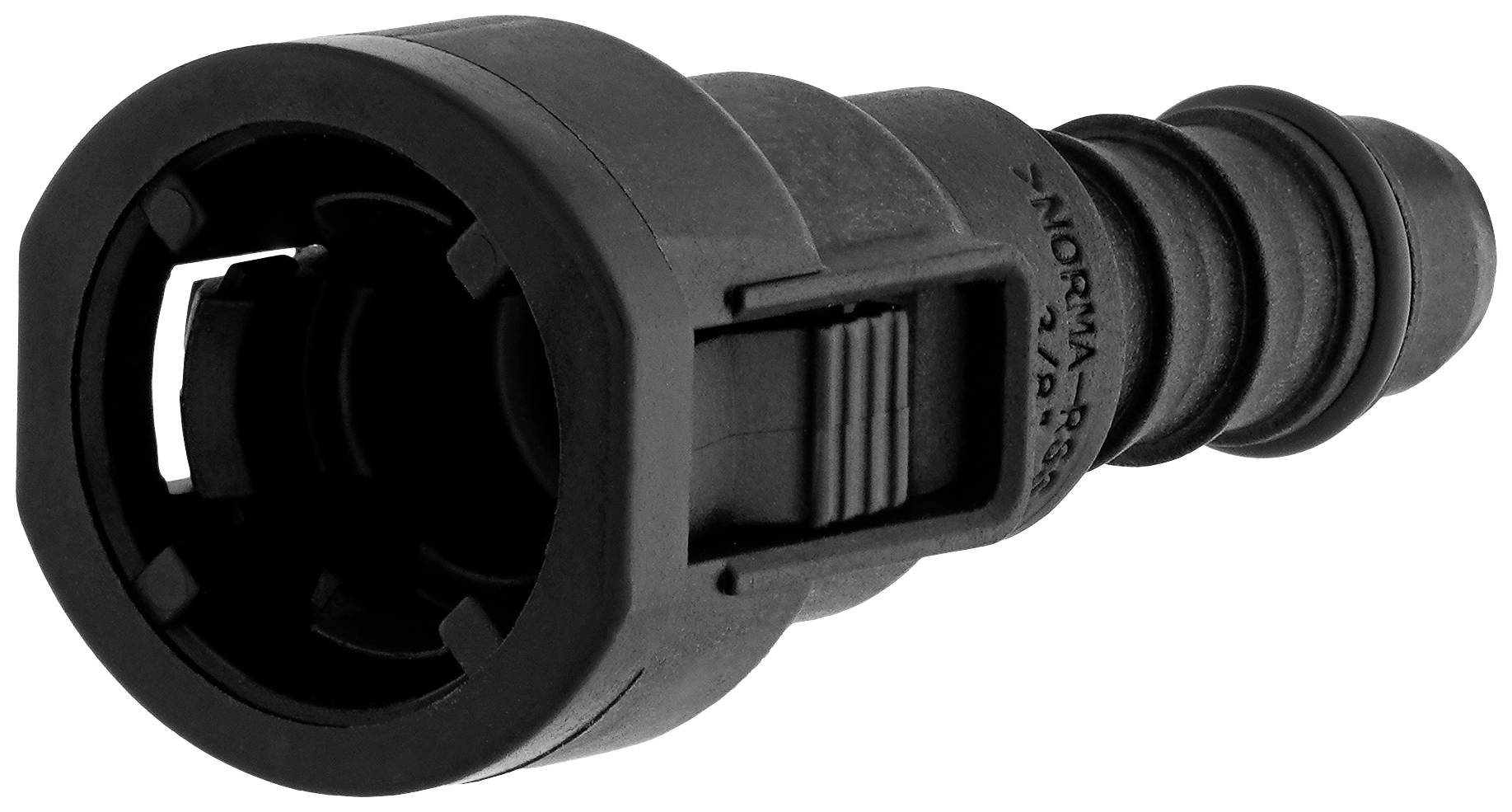

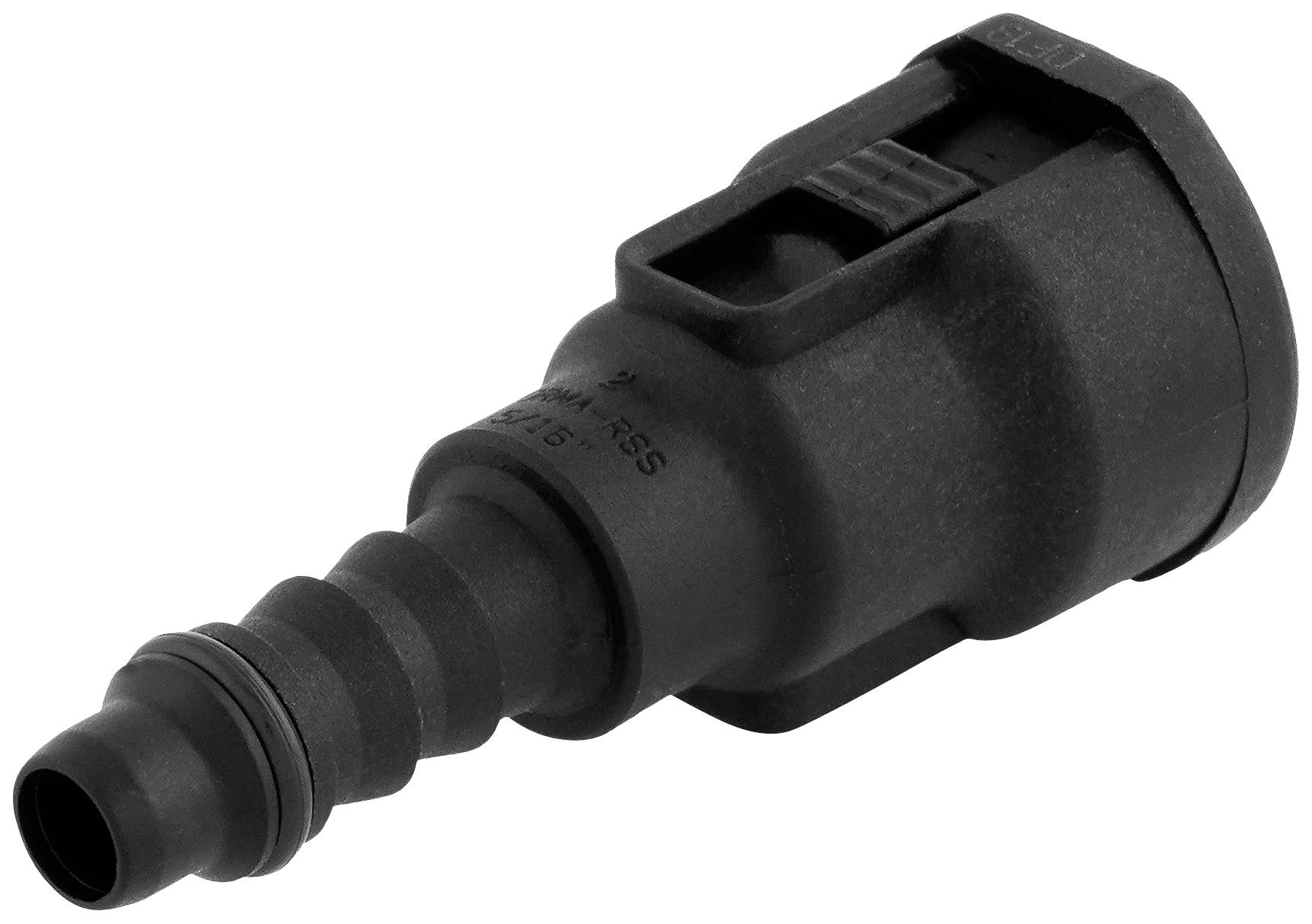

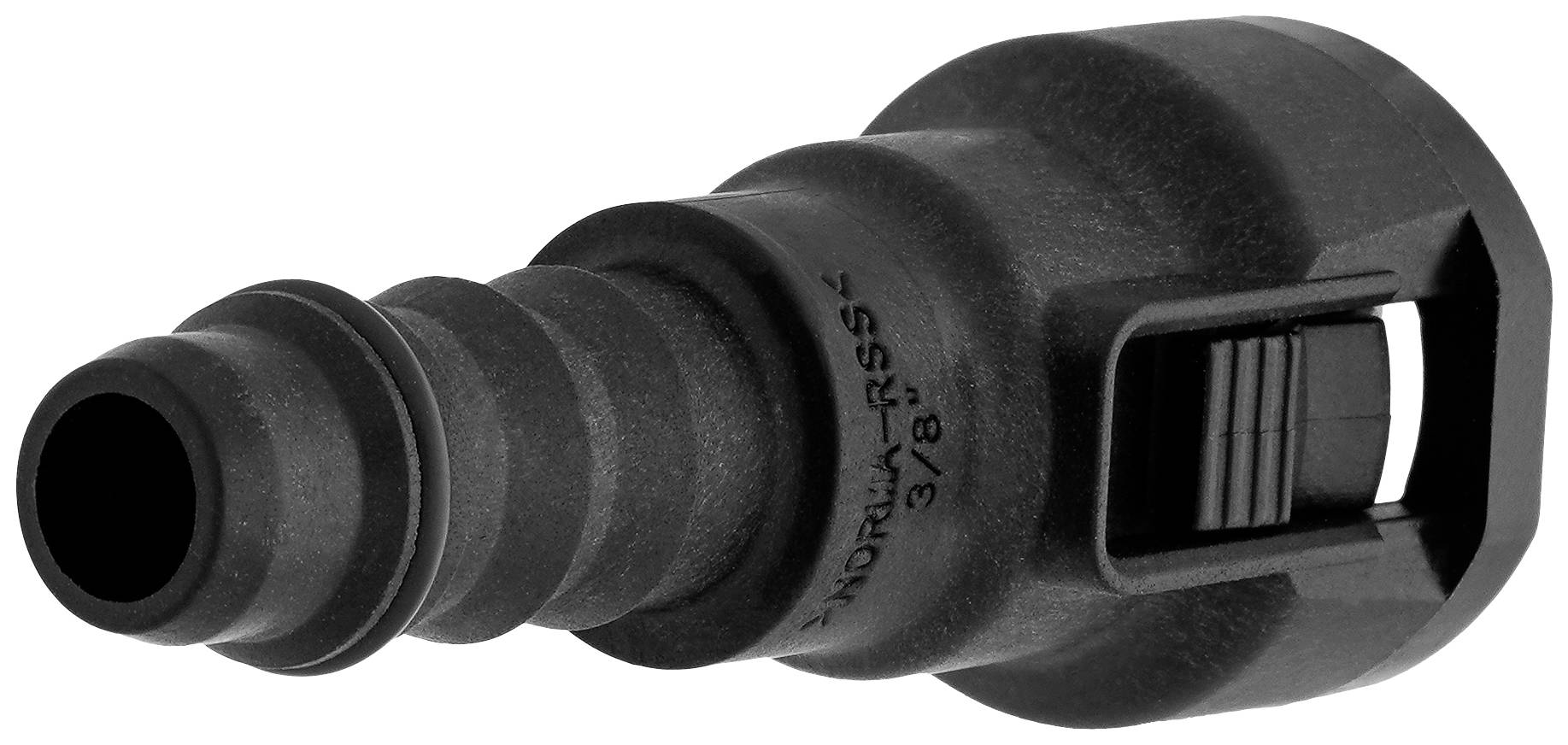

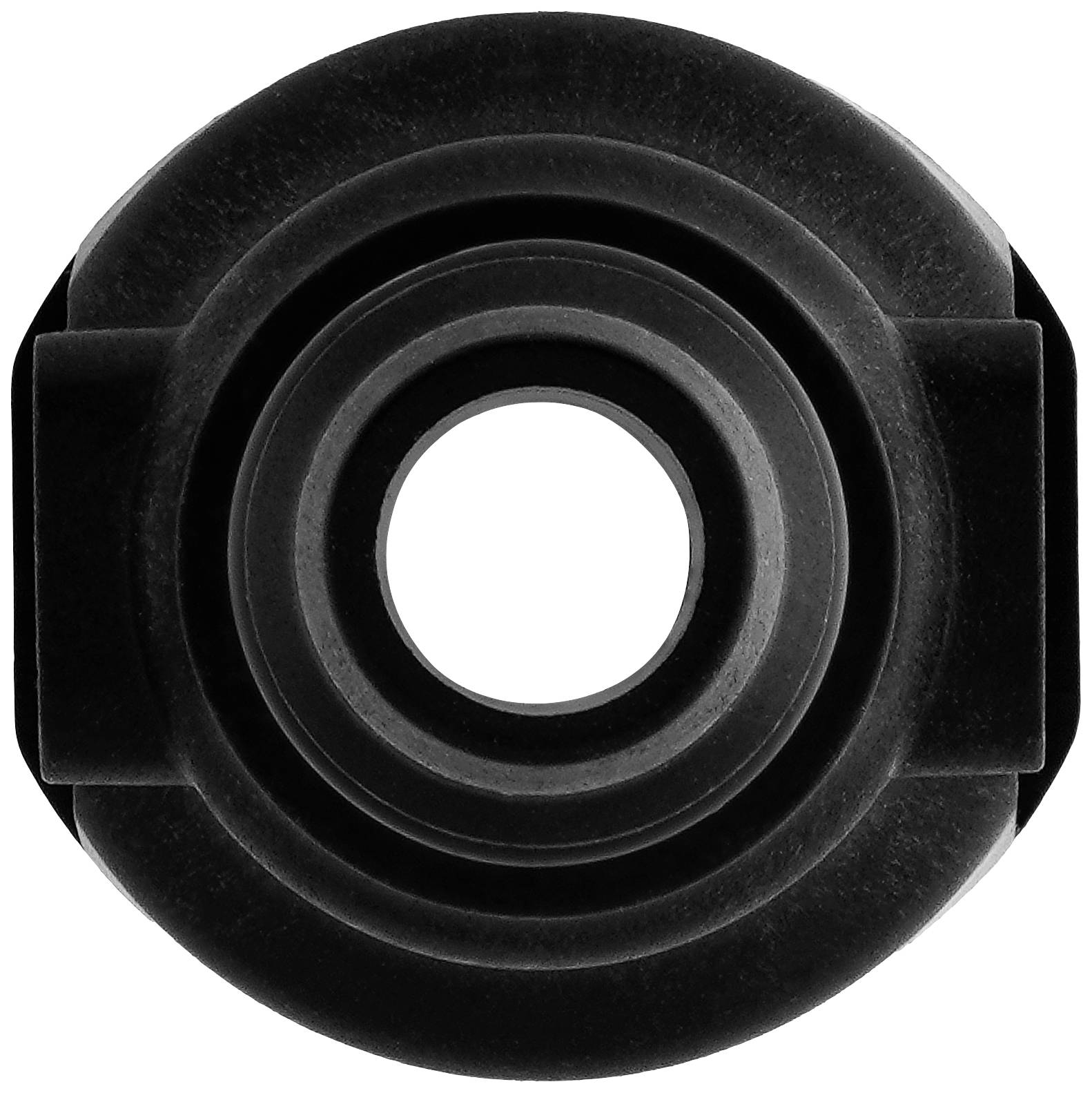

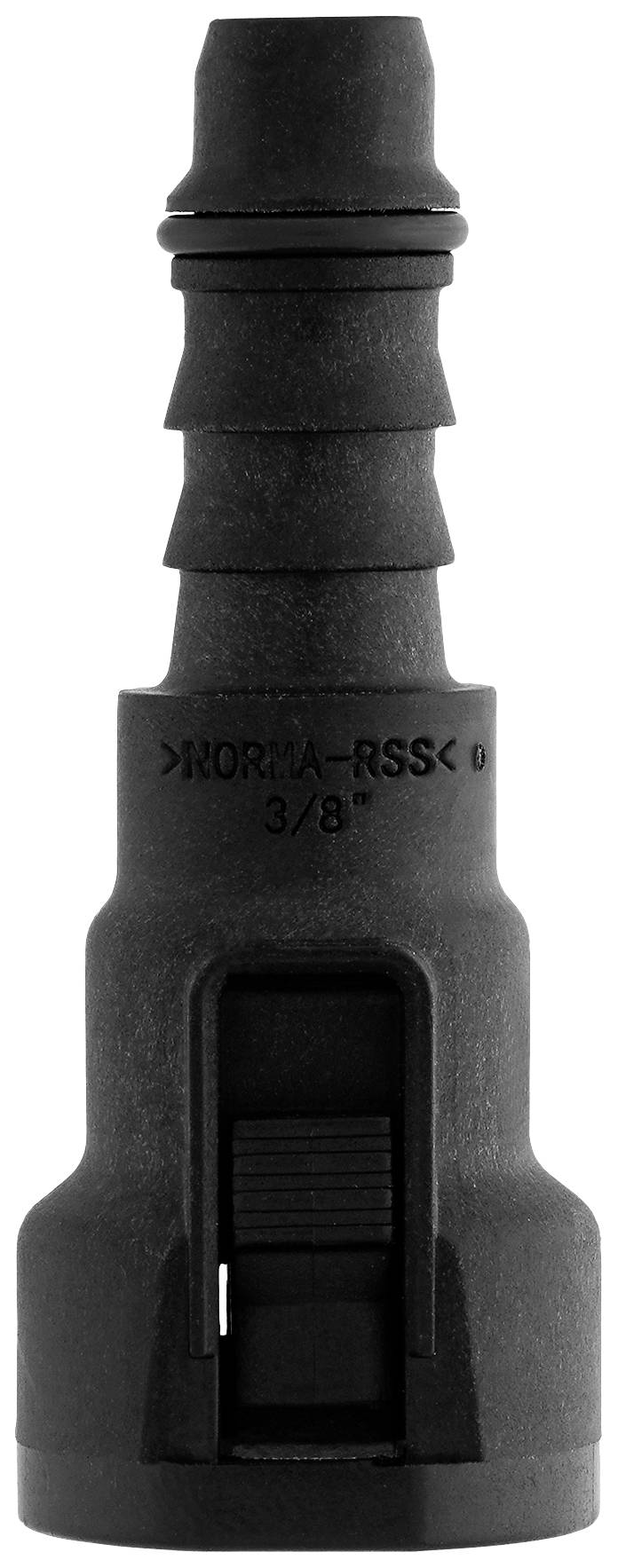

Norma Connector piece 7156002006 Normaquick S 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Normaquick S NW, 1/4", 0°
- Compact design makes it possible to install the device in confined spacesNo mounting tools are required
Technical specifications
- Material housing: Polyamide 12 with 50% glass fiber reinforcedMaterial O-Ring: Inner housing FPM & FVMQ, on fir tree profile FPMMaterial retaining ring: Polyamide 12 with 30% glass fiber reinforced
- Product type
Connector piece
- Manufacturer part #
7156002006
- Type
0 degrees
- Operating medium
Kraftstoffleitungssysteme und Tankbelüftungssysteme
- Material
PA 12 GF 50
- Material properties
fibreglass-reinforced
- (Ø)
6.35 mm
Documents & Downloads
Datasheet
Datasheet 2827469 Norma Connector piece 7156002006 Normaquick S 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2827469 Norma Connector piece 7156002006 Normaquick S 1 pc(s)
Description
High safety performanceS-connectors made of plastic according to the SAE standard are Ideal suitable for connecting media-leading lines in combustion engines. They have been developed especially for fuel applications and are characterized by the characteristic "click" during assembly as well as the fast and secure connection.Application:Fuel piping systems and tank ventilation systemsUrea Transport and Filter SystemsBenefits:Leak-free connection by sealing with two O-ringsCannot be opened under pressure thanks to two locking armsAcoustic signal ("click") confirms the locking of the adapter
