Novoflex Mini 1/4" Working height=16 - 134.5 cm Black, Grey
EAN:
Part number:
Item no:
Technical specifications
- Number of segments: 5
- Monopod: Yes
- Table stand: Yes
- Universal tripod: Yes
- Product type
Mini
- Factory colour
Black
Grey
- Operating height (max.)
134.5 cm
- Material
Carbon
- Max. load
8 kg
- Mount type
1/4"
- Working height (min.)
16 cm
- Dim. (add. text)
Min./Max.
- Height
134.5 cm
- (Ø)
21.9 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2367196 Novoflex Mini 1/4" Working height=16 - 134.5 cm Black, Grey
Description

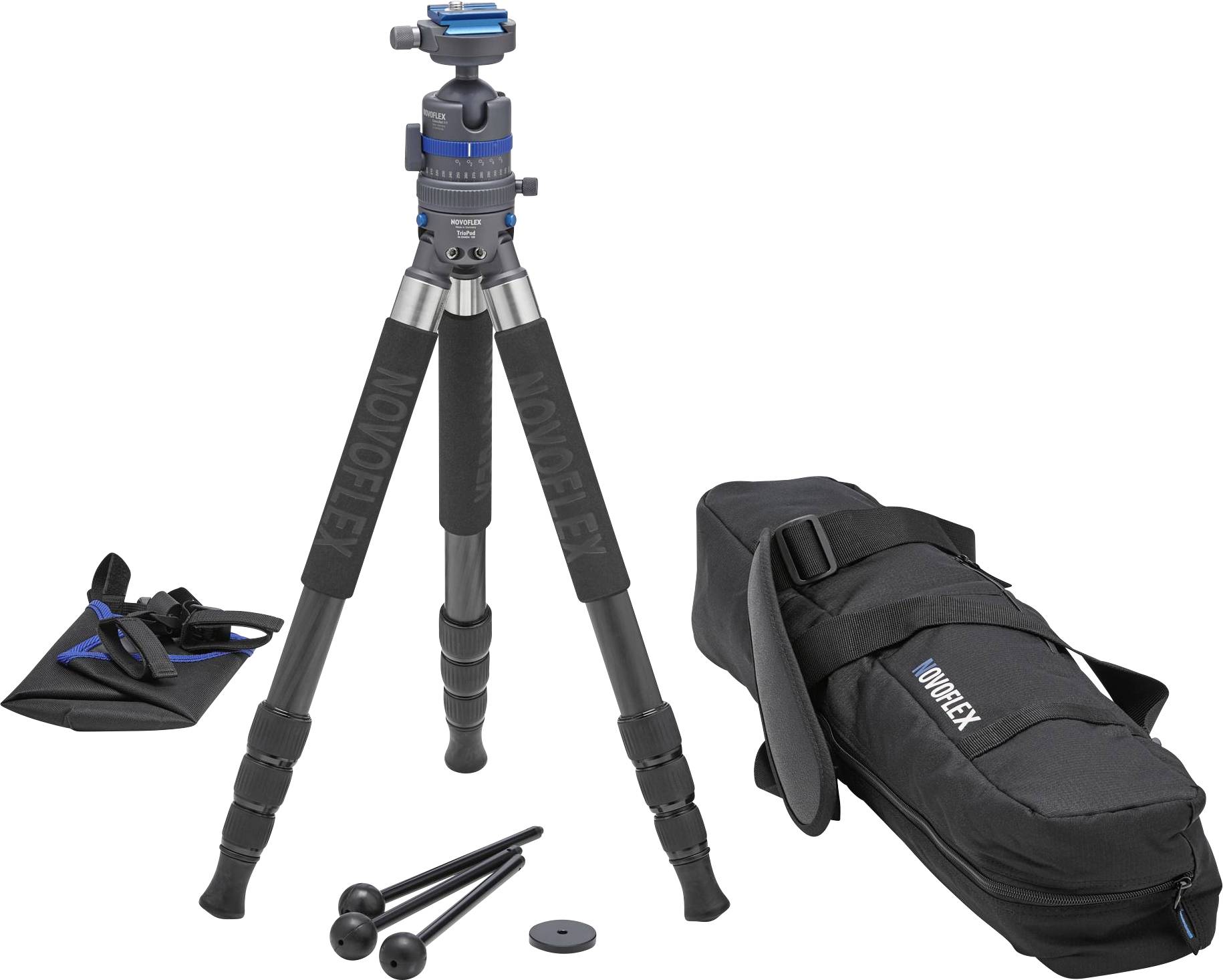

By the interchangeability of the legs, the set enables the flexible setup of the following stand variants: -3-leg stand, large -3-leg stand, mini-table stand or stand for working close to the ground -one-legged stand -Rejection stand - Use of 2 mini legs and a long leg Properties: -Steel spike below the rubber cap on the leg end -interchangeable mini-legs -coupling Q=MOUNT -QPL1 hot plate -triangular cloth TRIO-TC -5-segment carbon-bones -Max. Working height 134.5 cm -Min. Working height 16 cm -Max. Load: 8 kg -Top thread connection: 1/4", interchangeable with 3/8" -Side accessory connection: 1/4" and 3/8" -Snap angle of the leg connections: 20°, 40°, 60°, 87° -Diameter of the leg segments: 21.9 / 18.9 / 15.9 / 12.9 / 9.9 mm
