Nowax 1752104200 TPNS 500 Effluent sump pump PG connector 9000 l/h 7.5 m
EAN:
Part number:
Item no:
Highlights & Details

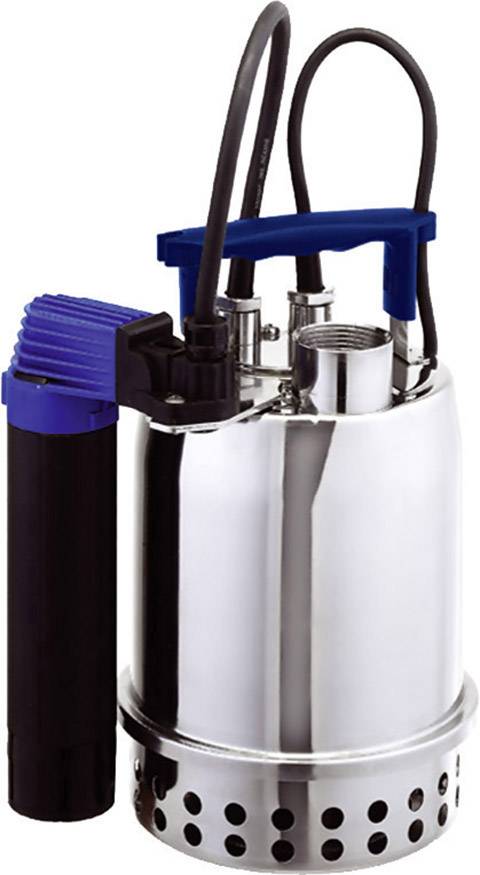

Stainless steel submersible pump TPNS 500
- All main components made of stainless steel
- Grain size up to Ø 10 mm
- Mechanical seal in Olvorlage (pump side)
Technical specifications
- Cable type: H05RN-F
- Grain size (max.): 10 mm
- Condenser: 8.0 µF.
- Product type
Effluent sump pump
- Features
PG connector
- Max. delivery head
7.5 m
- Max. feed rate
9000 l/h
- Max. discharge pressure
0.75 bar
- Operating voltage
230 V
- Power (P2)
430 W
- Pressure connection
39.0 mm (1 1/4") IT
- Type
Submersible pump for clear/dirty water
- Immersion depth
Max. 5 m
- Max. cable length
5 m
- Operating time (OT)
Non-stop
- Float switch
Yes
- Overload protection
Yes
- Width
167 mm
- Height
273 mm
- Dim
(W x H) 167 mm x 273 mm
- Weight
4.6 kg
IP68
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1606912 Nowax 1752104200 TPNS 500 Effluent sump pump PG connector 9000 l/h 7.5 m
User & Safety Instructions 1606912 Nowax 1752104200 TPNS 500 Effluent sump pump PG connector 9000 l/h 7.5 m
Information
Information 1606912 Nowax 1752104200 TPNS 500 Effluent sump pump PG connector 9000 l/h 7.5 m
Description
Application areas:
Disposal of clear and dirty water. Drying of cellars and garages. Emptying of pump shafts and containers for leachate and rain water. Disposal of gray water from washing machines, dishwashers and showers.
Main features:
Additional shaft sealing ring (motor side)
Ceramic-coated shaft protection sleeve
Permanent operation even in partially washed condition
suitable for narrow shafts
This text is machine translated.
Disposal of clear and dirty water. Drying of cellars and garages. Emptying of pump shafts and containers for leachate and rain water. Disposal of gray water from washing machines, dishwashers and showers.
Main features:
Additional shaft sealing ring (motor side)
Ceramic-coated shaft protection sleeve
Permanent operation even in partially washed condition
suitable for narrow shafts
This text is machine translated.
Scope of delivery
- Submersible motor pump
- 5 m power cord
- PG plug
- Magnetic float switch
