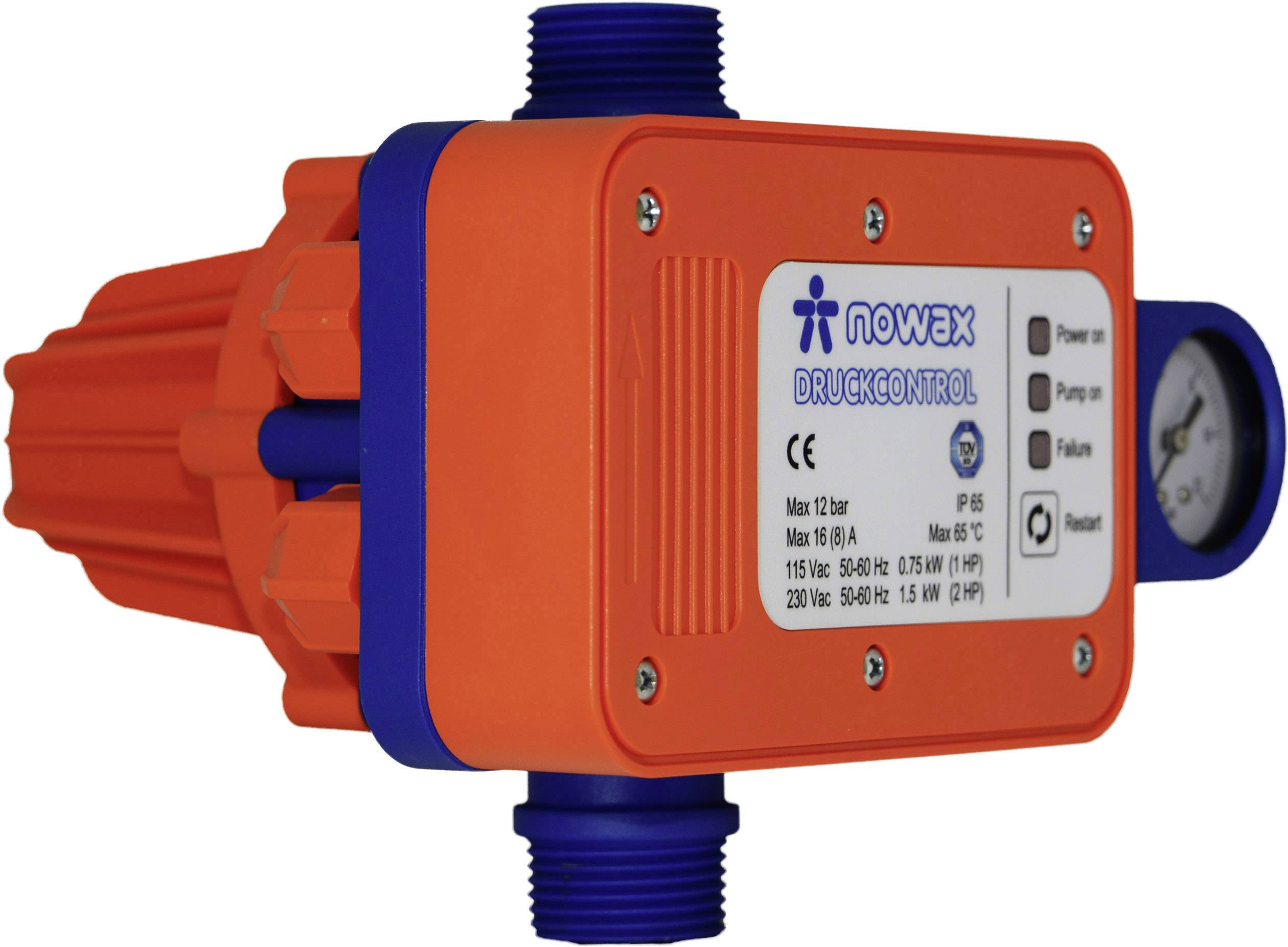

Nowax Water pressure switch 10 bar (max) 230 V / AC
EAN:
Part number:
Item no:
Highlights & Details
Pressure switch PRESSURE CONTROL
- Anti-blocking function
- Integrated non-return valve
- Pressure membrane made of EPDM
Technical specifications
- Motor power (max.): 1500 W
- Pressure gauge: 0-12 bar.
- Product type
Water pressure switch
- Operating voltage
230 V / AC
- Switching current (max.)
8 A
- Operating pressure (max.)
10 bar
- Operating pressure range
10 bar (max)
- Switch-on pressure
1.5 bar
- Internal thread
1"
- External thread
1"
- Connection
PG plug
- Cable length
1.50 m
- Flow (max.)
3500 l/h
IP65
- Dim
(L x W x H) 200 x 135 x 150 mm
- Length
200 mm
- Width
135 mm
- Height
150 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1606905 Nowax Water pressure switch 10 bar (max) 230 V / AC
Information
Information 1606905 Nowax Water pressure switch 10 bar (max) 230 V / AC
Description
A fully automatic switching on and off of the pump. Automatic switch-off of pumps with water shortage. Automatic restart in the event of an error (10 restart attempts within 24 hours). Form pressed, reinforced plastic body (flame resistant). Constant pressure with even pump operation. Space-saving compact design, easy installation-ready to plug as a retrofit package maintenance-free.
Suitable for fully automatic operation of pumps and water supply systems.
This text is machine translated.
Suitable for fully automatic operation of pumps and water supply systems.
This text is machine translated.
Scope of delivery
- Push button switches
- 1.5 m cable with earthing contact plug
- 0.5 m cable with coupling
- Pressure gauge.
