Buy NRG KICK 12501008 eMobility charging cable 5 m

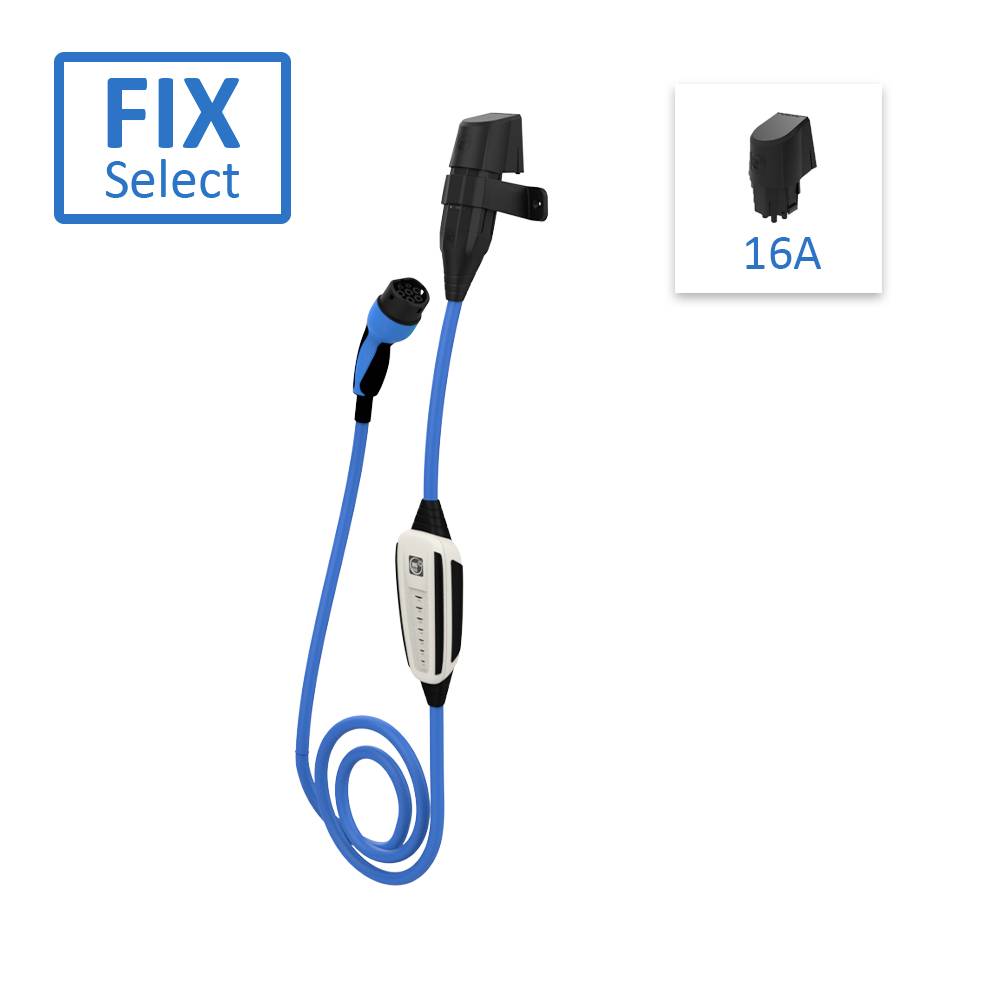

A blue electric vehicle charging cable with black connectors and a white control unit in the middle.

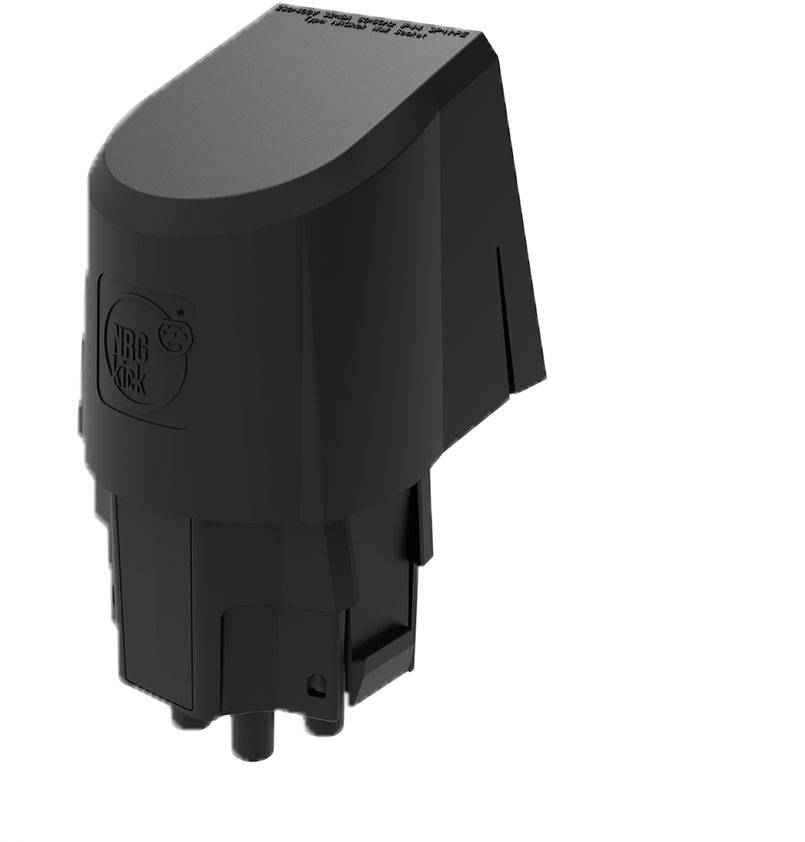

Black electric adapter with 'NRGkick' inscription on the top surface; used for connecting chargers to various power sockets.

NRG KICK 12501008 eMobility charging cable 5 m-2

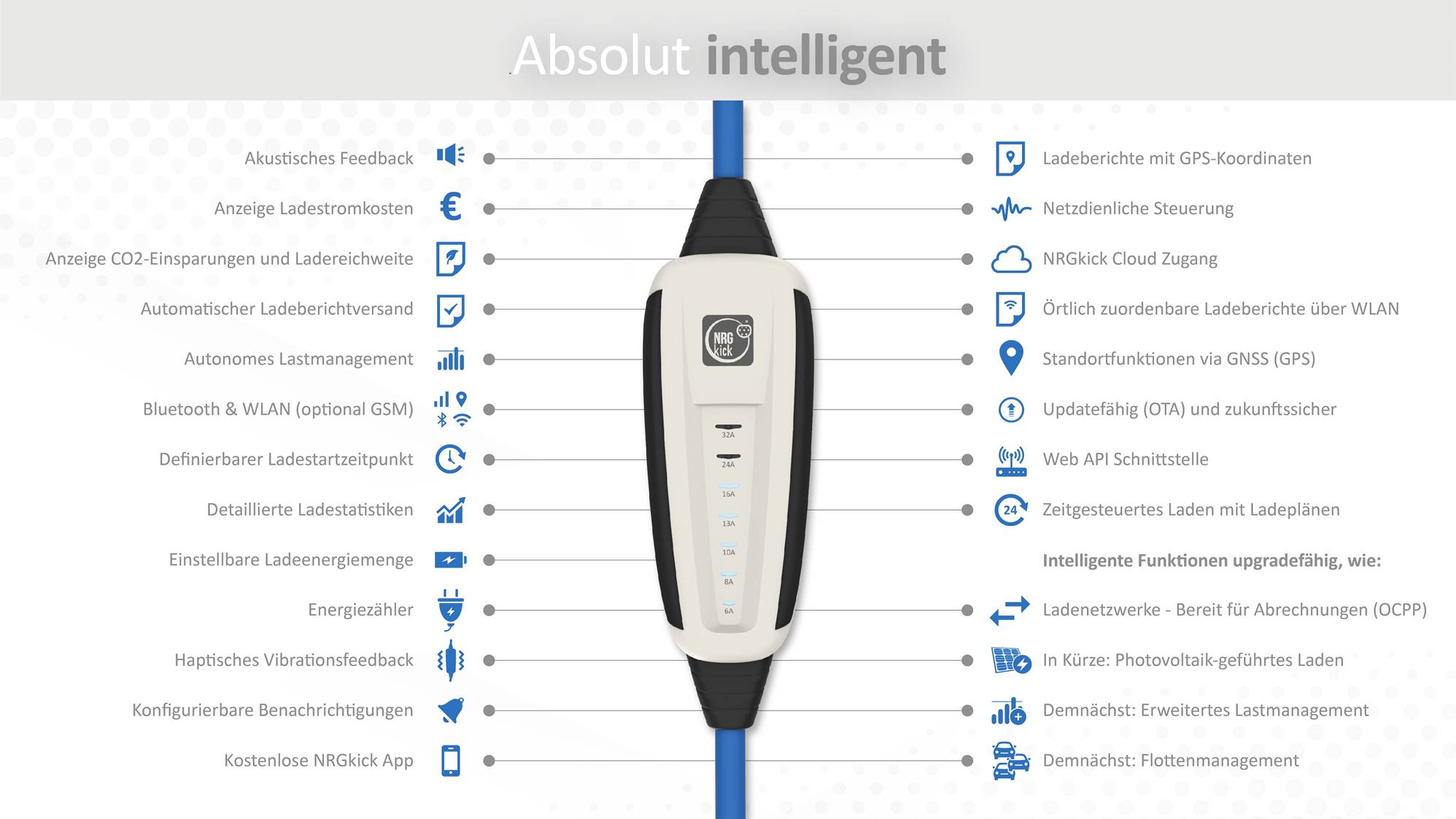

'Intelligent charging cable with GPS, acoustic feedback, CO2 saving, and monitoring. Features: Bluetooth, Wi-Fi, and app control.'

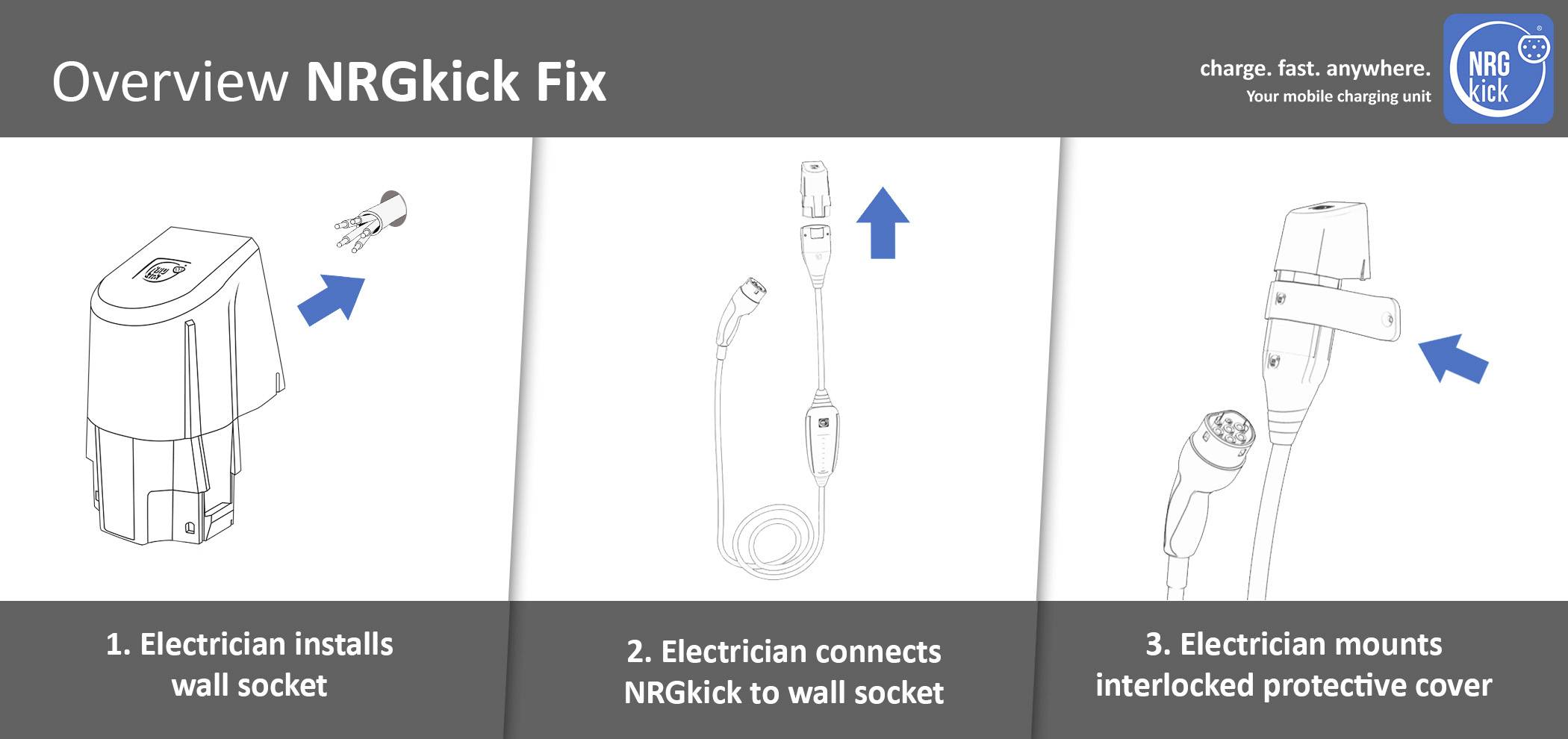

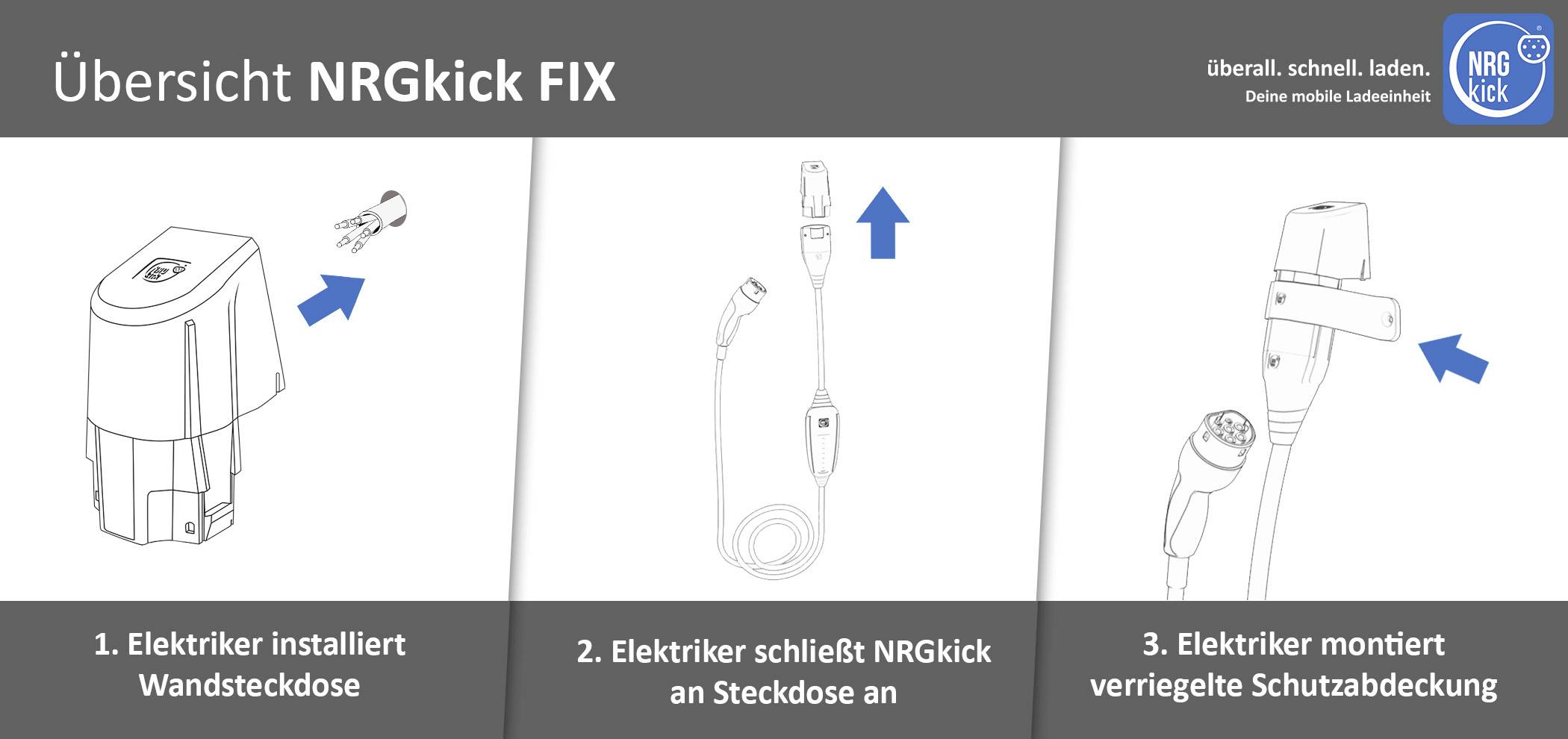

'Three Steps to Install the NRGkick FIX: 1. Electrician installs wall socket, 2. Connects NRGkick, 3. Fits lockable protective cover.'

NRG KICK 12501008 eMobility charging cable 5 m-5

1/6

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,079.83 / piece)

€

Report legal concerns

Highlights & Details

Charging cable NRGkick 32 A/22 kW, 5 m cable

Socket overheating protectionIncorrect connection testTemperature monitoring of all plug attachments at all phase pinsBlackout protection (protection against power failures)Antitheft

Technical specifications

Maximum charging power 22 kW
Fault current protection (AC) 30 mA
Fault current protection (DC): 6 mA
Charging mode: Mode 2 according to EN 62752; Mode 3 when using plug attachment type 2

No. of phases: 3-phase

Charging mode: Mode 2

Cable length: 5 m

Nominal voltage: 230 V
400 V

Nominal current: 32 A

Nominal current - rounded value: 32 A

: IK10
IP67

Min. temperature: -40 °C

Max. temperature: 70 °C

Height: 6.4 cm

Length: 21.6 cm

Width: 9 cm

No. of ports: 1 x

Authorisation: RFID

Charger connectors: Type 2

Wireless charging: No

Charging capacity: 22 kW

Weight: 4.08 kg

Product type: eMobility charging cable

Documents & Downloads

Datasheet

Datasheet 2390323 NRG KICK 12501008 eMobility charging cable 5 m

User & Safety Instructions

User & Safety Instructions 2390323 NRG KICK 12501008 eMobility charging cable 5 m

Description

Charging cable NRGkick 32 A/22 kW, 5 m cable, to the permanent connection with lockable wall socket 230 V AC / 16 A, type 2, WLAN + Bluetooth.The intelligent and secure charger for your E-car.

This text is machine translated.
