NRG KICK 12701061 eMobility charging cable 7.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,054.62 / piece)
€ 1,054.62
plus VAT.

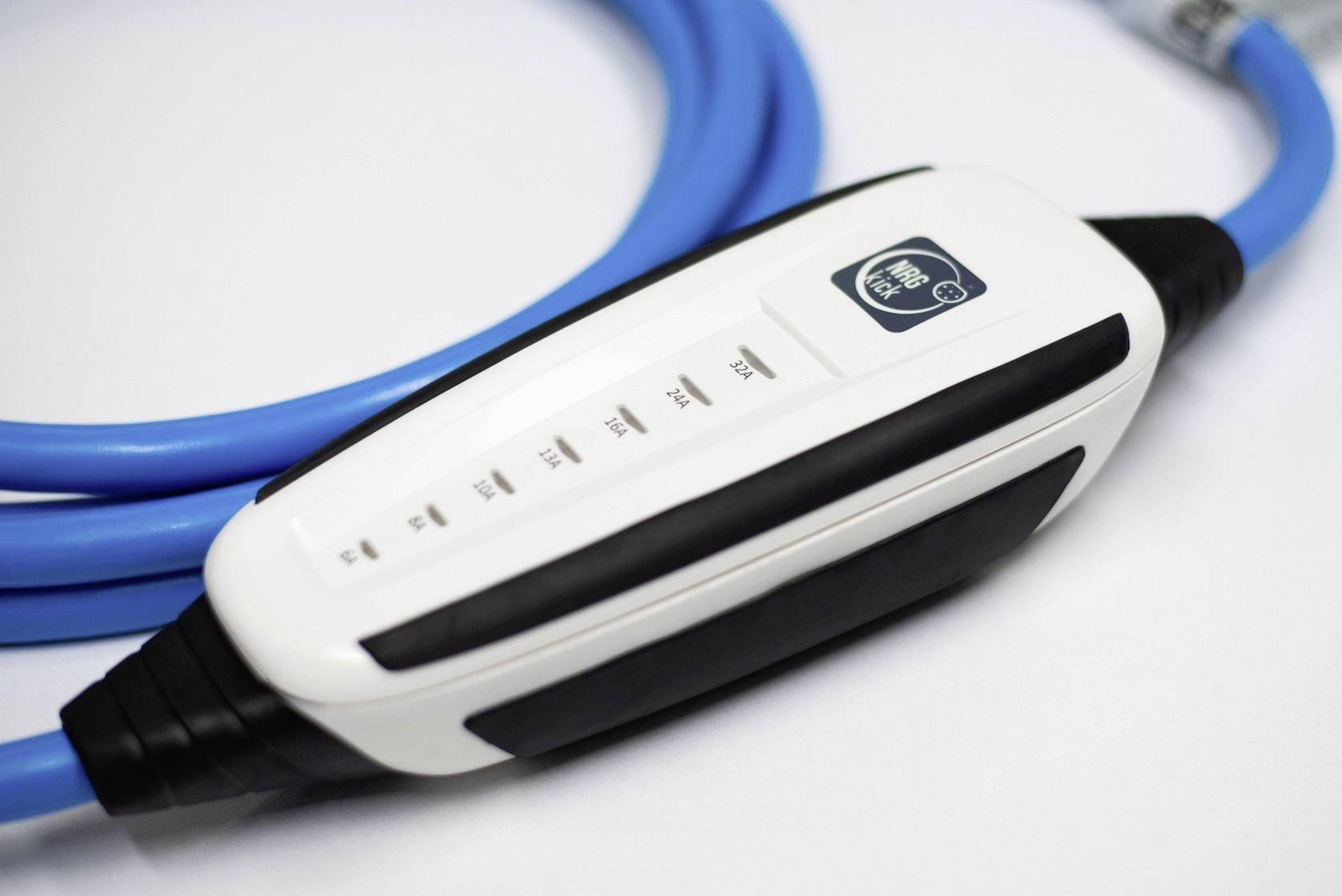

Mobile charging cable NRGkick 32 A/22 kW, set, 7.5 m cable
Highlights & Details
- Set for traveling
- With 7.5 m cable
- Various connector attachments
- Practical carrying case
Technical specifications
- Maximum charging power 22 kW
- Fault current protection (AC) 30 mA
- Fault current protection (DC): 6 mA
- Earthing contact: 1-phase, max. 13 A
- 32 A/5pol: 3-phase max. 22 kW
- 16 A/3pol: 1-phase max. 3.7
- 16 A/5pol: 3-phase max. 11 kW
- Product type
eMobility charging cable
- No. of phases
1- & 3-phase
- Charging mode
Mode 3
- Cable length
7.5 m
- Nominal voltage
230 V
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
IK10
IP67
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Charging capacity
22 kW
- Factory colour
Multicolour
- Height
6.4 cm
- Length
21.6 cm
- Width
9 cm
- No. of ports
1 x
- Authorisation
RFID
- Charger connectors
Type 2
- Wireless charging
No
- Weight
7.28 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2390326 NRG KICK 12701061 eMobility charging cable 7.5 m
User & Safety Instructions
User & Safety Instructions 2390326 NRG KICK 12701061 eMobility charging cable 7.5 m
Description
Mobile charging cable NRGkick 32 A/22 kW, set ideal for traveling, 7.5 m cable, type 2, WLAN + Bluetooth incl. plug attachment 32 A 5pol, 16 A 5pol, 16 A 3pol, type E+F "earthing contact" 13 A (EU) and carrying case.
The new NRGkick has a completely self-developed, patented safety plug system with removal detection and temperature monitoring on each plug attachment and phase pin and ensures that all E-cars with type 2 interface with up to 22 kW are safely charged.
This text is machine translated.
The new NRGkick has a completely self-developed, patented safety plug system with removal detection and temperature monitoring on each plug attachment and phase pin and ensures that all E-cars with type 2 interface with up to 22 kW are safely charged.
This text is machine translated.

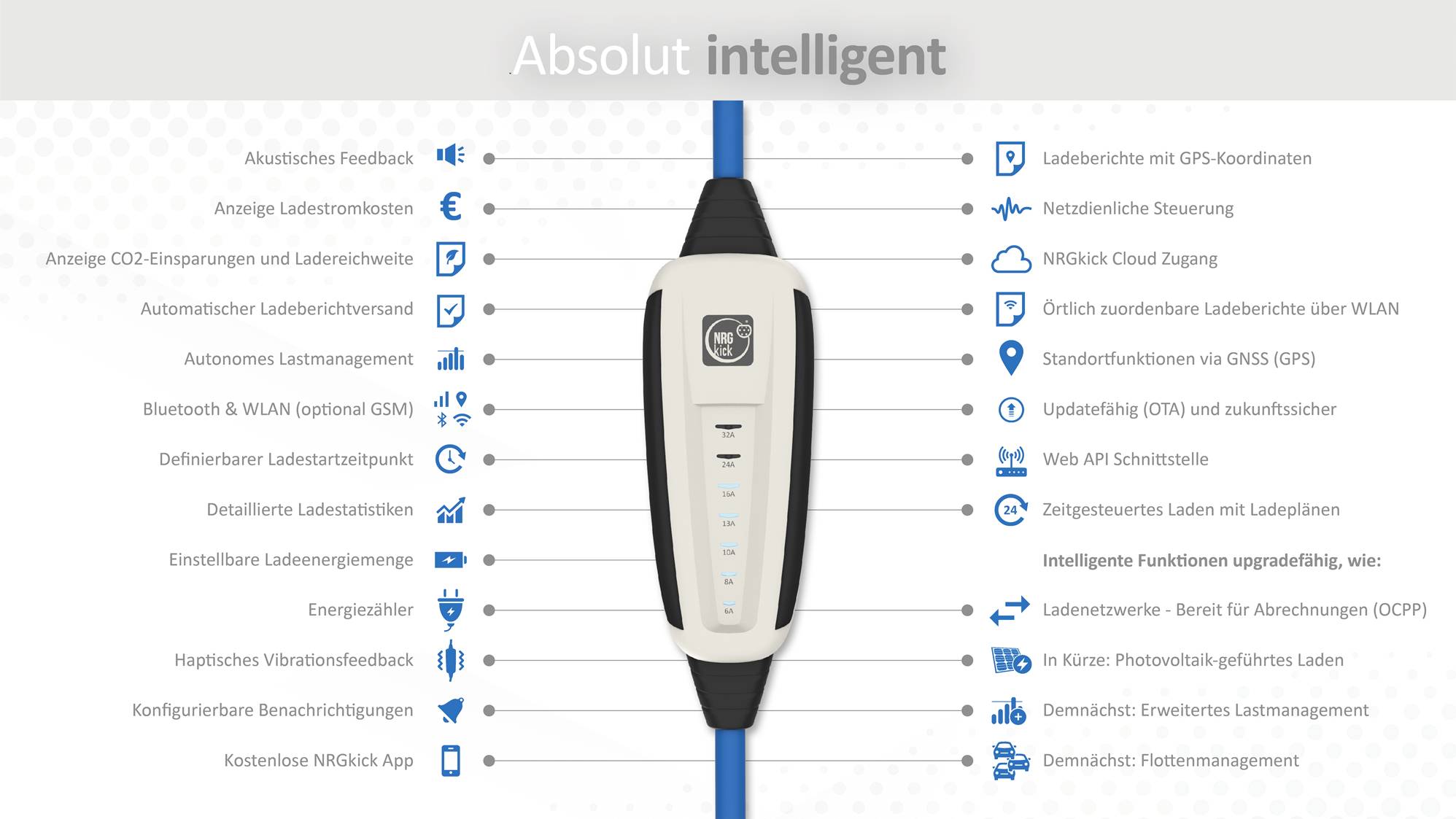

Features
- Socket overheating protection
- Removal detection with arc protection
- Protective conductor test by means of loop impedance measurement
- Thermo-Protect temperature management
- Incorrect connection test
- Temperature monitoring of all connector attachments on all phase pins
- Dual earthing contact overheating protection with monitoring of both pins
- Phase shift detection
- Blackout protection (protection against power outages)
- Energy counter
- Over and under voltage protection
- Safe to drive over
- Access to all information via NRGkick app.
Scope of delivery
- NRGkick 32 A

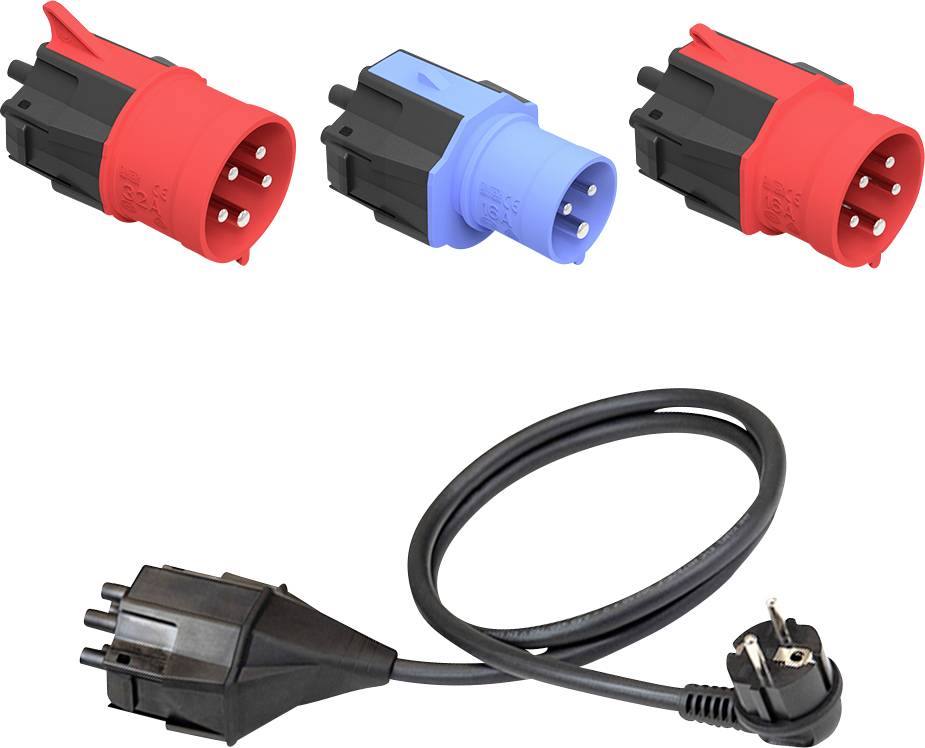

- Connector attachment 32 A 5pol, 16 A 5pol, 16 A 3pol, E+F "earthing contact"
- Carrying case.
System requirements
- SmartPhone
