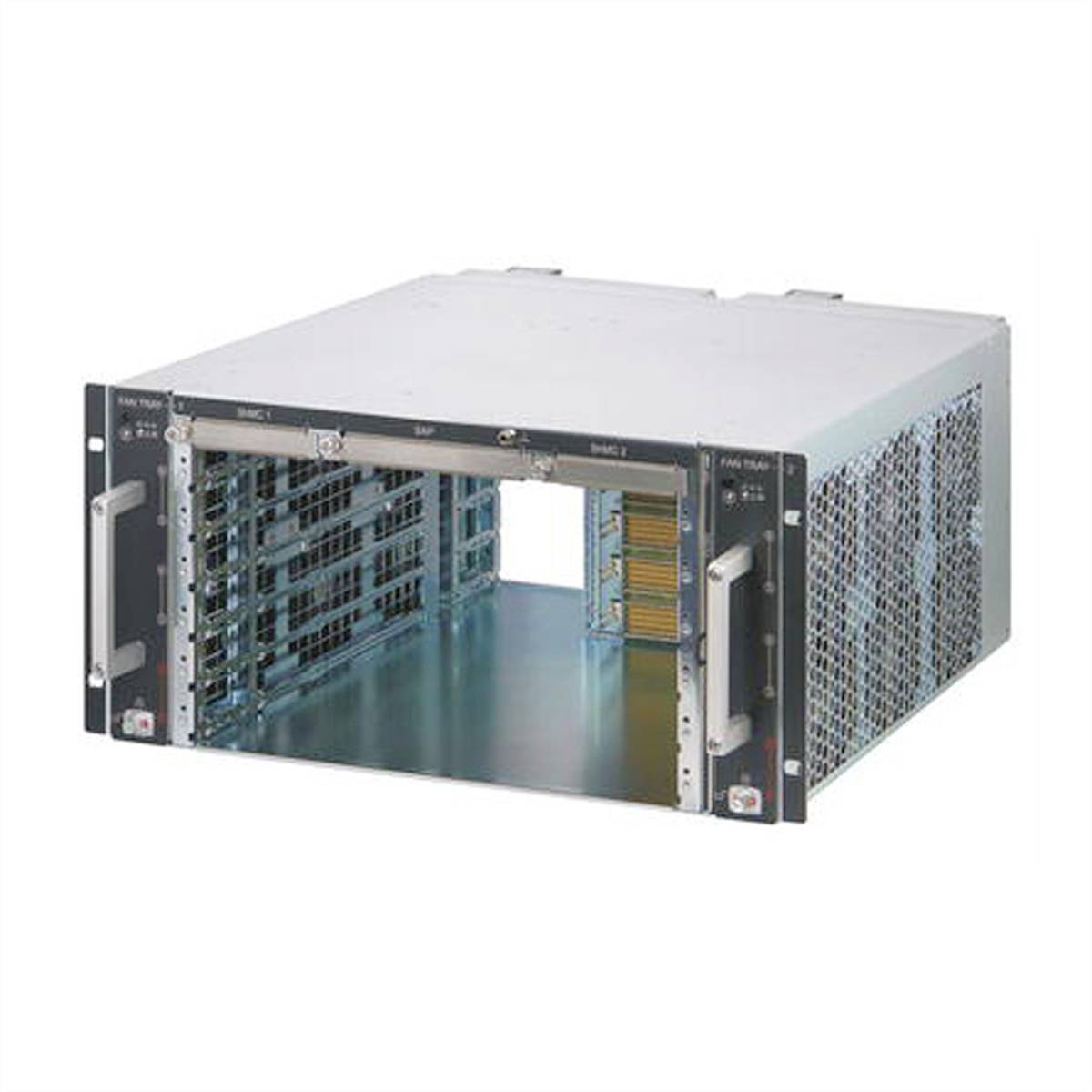

nVent SCHROFF 11596160 19" rack 222 x 464 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
19" rack
Height
222 mm
Features
6x
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
19" rack
- Features
6x
- Height
222 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Depth
464 mm
- Type
11596160
Documents & Downloads
Datasheet
Datasheet 3029584 nVent SCHROFF 11596160 19" rack 222 x 464 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3029584 nVent SCHROFF 11596160 19" rack 222 x 464 1 pc(s) Piece
Description
Features
- ATCA System 300/40 Series, 6 Slot, DC, Replicated Mesh, Bus-IPMB
- ATCA SYSTEM 5U 6S
- Compliant with AdvancedTCA specification PICMG 3.0 REV. 3.0 - 6 slot backplane with triple replicated mesh topology, 40 Gbps transfer rate (4 x 10 Gbps) - molded IPMI - Horizontal installation of 6 AdvancedTCA boards (front side) and 6 RTM boards (back side) - Two hot-swap fan slots (each with 6 fans) for cooling from right to left (push-/pull cooling); 350 W per board - power consumption per board 350 W - Prepared for two shelf managers with Pigeon Point ShMM 500 and one shelf alarm panel (SAP) - power supply -48 VDC/-60 VDC via two redundant power-entry modules (PEM) plugged into the back - power distribution to the backplane via two redundant power branches, Individually secured with 30 A circuit breakers
- This text is machine translated.
