nVent SCHROFF 20836220 10 inch Inset Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Inset
- Suitable for server rack cabinet (inch)
10 inch
- Rack unit
10 U
1000 W
- Factory colour
Multicolour
- Height
10 U
- Depth
456.5 mm
- Rack size
254 mm (10")
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2990184 nVent SCHROFF 20836220 10 inch Inset Multicolour
User & Safety Instructions
User & Safety Instructions 2990184 nVent SCHROFF 20836220 10 inch Inset Multicolour
Description

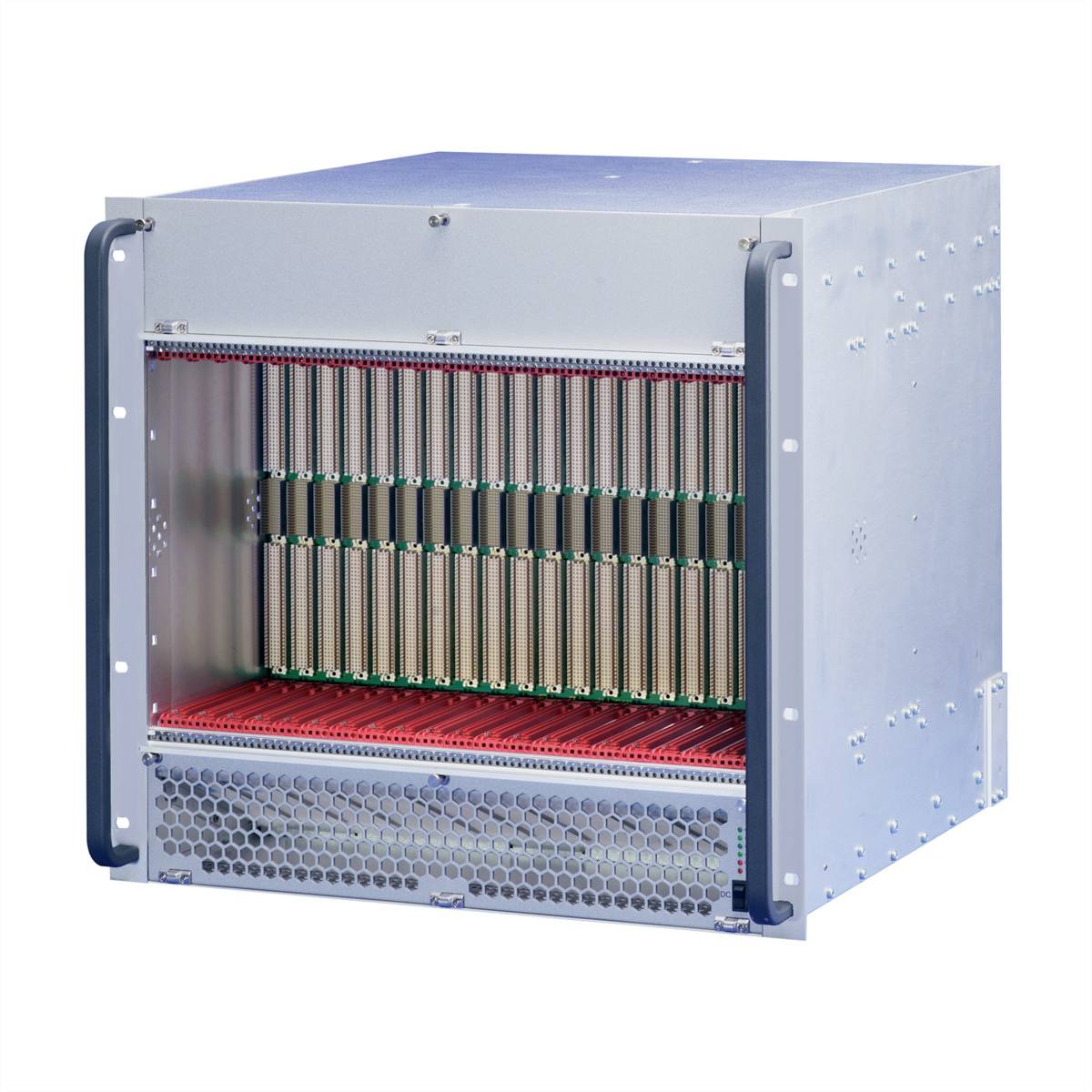

VME64x system, 10 HE, 21 slot, 2 Open-Frame power supply
SUBR 10U 84HP 21SL VME64X V2
System according to IEC 60297-3-101, -102, -103; IEEE 1101.1, 1101.10/11); Backplane conforms to VITA 1.1-1997
System for vertical mounting of cards with card formats
Front: 6 HE, 160 mm deep
Rear, rear I/O:6 HE, 80 mm deep
Backplane: VME64x21 slot, 6+1 HE, with P0-plug
Power supply, Open Frame, 1000 W
Thermal cooling with two fan units that can be pulled out from front to back; temperature monitored with Fan Control Module (FCM)
Display module for DC operating voltages, fan and temperature alarm
This text is machine translated.
