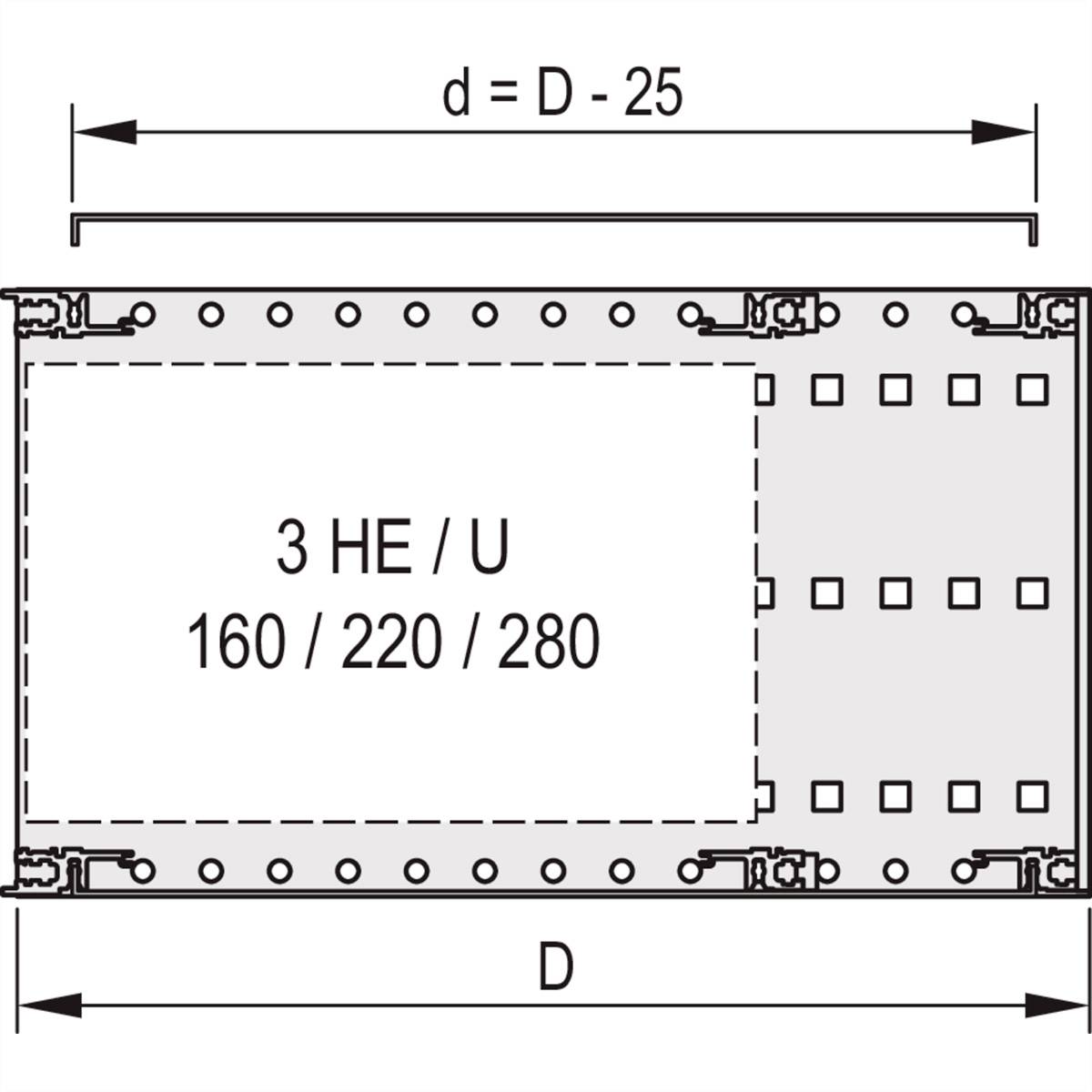

Technical drawing of an enclosure with dimensions. The width is D, height '3 HE/U', with measurements 160, 220, 280.

Technical drawing of an enclosure with dimensions. The width is D, height '3 HE/U', with measurements 160, 220, 280.

Technical drawing of a rectangular enclosure with dimensions: 3 HE/U, 160/220/280. Width is D, length is D-25.

1/2

Packaging type

Piece

Product type

Shield

Features

EMC

Material

Stainless steel

Factory colour

Multicolour

Datasheet (PDF)

Deutsch (Deutschland)

nVent SCHROFF

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SCHROFF cover plate, universal for special circuit board depths - COVER PLATE EMC 42TE 235T 2ST

Our service for you

Technical specifications

Packaging type: Piece

Product type: Shield

Features: EMC

Material: Stainless steel

Factory colour: Multicolour

TE: 42

Depth: 235 mm

Weight: 0.248

Content: 1 pc(s)

Type: 24560032

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2990717 nVent SCHROFF 24560032 Shield EMC 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2990717 nVent SCHROFF 24560032 Shield EMC 1 pc(s) Piece

Description

EuropacPro cover plate, universal, 42 TE, 235 mm
COVER PLATE EMC 42HP 235D 2PC
Use with all module rails possible
For variable positioning of the module rails with, for example, PCB with special formats
Shielding is done with optional EMC stainless steel seal, between cover plate and side wall
58% perforation degree
