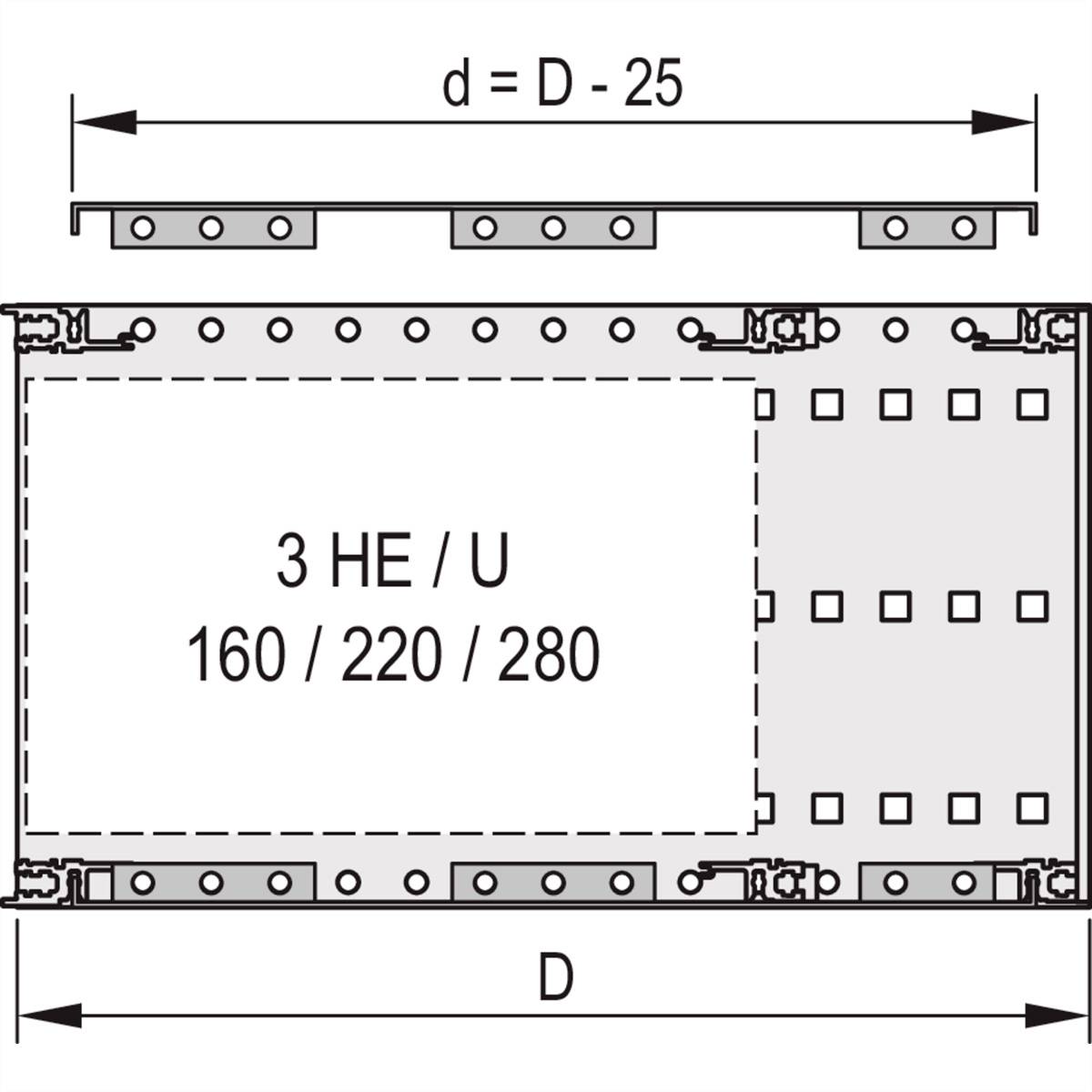

Diagram of a rack unit with the label '3 HE/U 160 / 220 / 280'. Shows arrangements for mounting height and depth of components.

Diagram of a rack unit with the label '3 HE/U 160 / 220 / 280'. Shows arrangements for mounting height and depth of components.

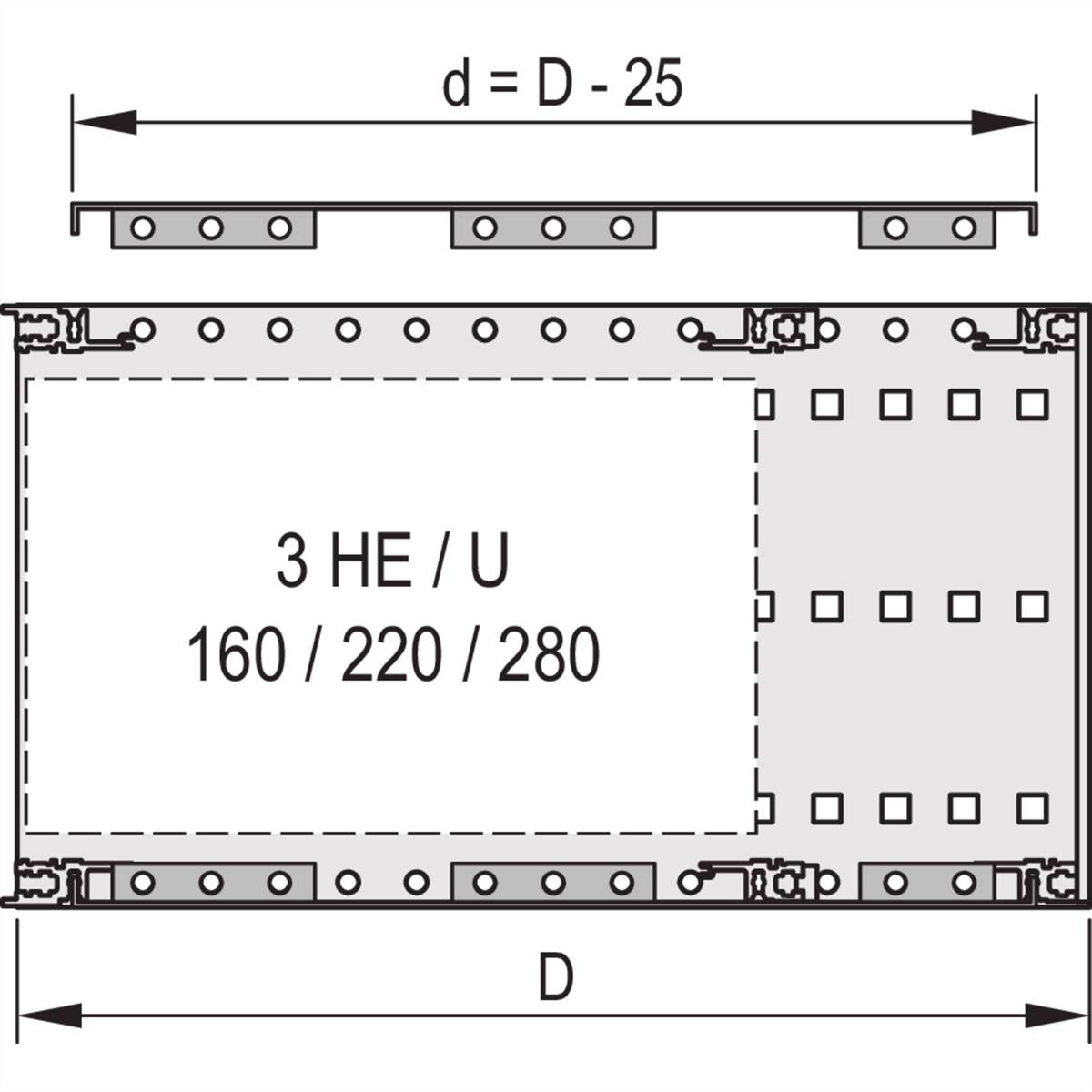

'Diagram of a 3U circuit board with dimensions 160/220/280. Width D, depth d=D-25.'

1/2

Packaging type

Piece

Product type

Shield

Features

wallmount option

Material

Stainless steel

Factory colour

Multicolour

Datasheet (PDF)

Deutsch (Deutschland)

nVent SCHROFF

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SCHROFF cover plate for screwing to the side wall - COVER PLATE EMC 63TE 235T 2pcs

Our service for you

Technical specifications

Packaging type: Piece

Product type: Shield

Features: wallmount option

Material: Stainless steel

Factory colour: Multicolour

TE: 63

Depth: 235 mm

Weight: 0.351

Content: 1 pc(s)

Type: 24560072

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2990734 nVent SCHROFF 24560072 Shield wallmount option 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2990734 nVent SCHROFF 24560072 Shield wallmount option 1 pc(s) Piece

Description

EuropacPro cover plate for screwing to the side panel, 63 TE, 235 mm
COVER PLATE EMC 63HP 235D 2PC
Use with all module rails possible
Cover plate for mounting 160 mm, 220 mm or 280 mm deep PCBs
Lateral fold-out for fixing the module rails in a depth of 160 mm or 220 mm
Shielding is done with optional EMC stainless steel seal, between cover plate and module rail
