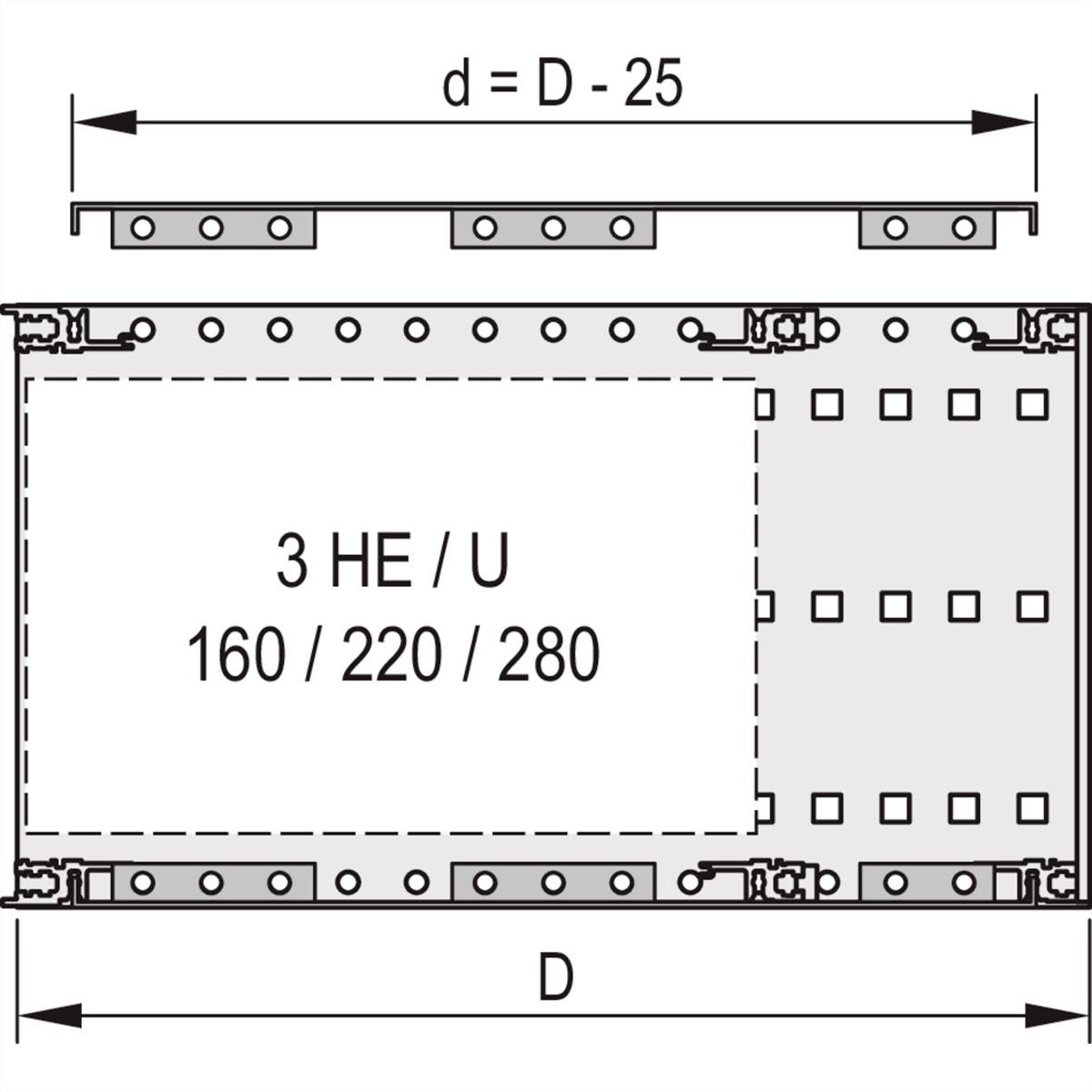

'3 HE/U, 160/220/280' in a rectangular frame with mounting holes. At the top it reads 'd = D - 25'. Indicates housing dimensions.

'3 HE/U, 160/220/280' in a rectangular frame with mounting holes. At the top it reads 'd = D - 25'. Indicates housing dimensions.

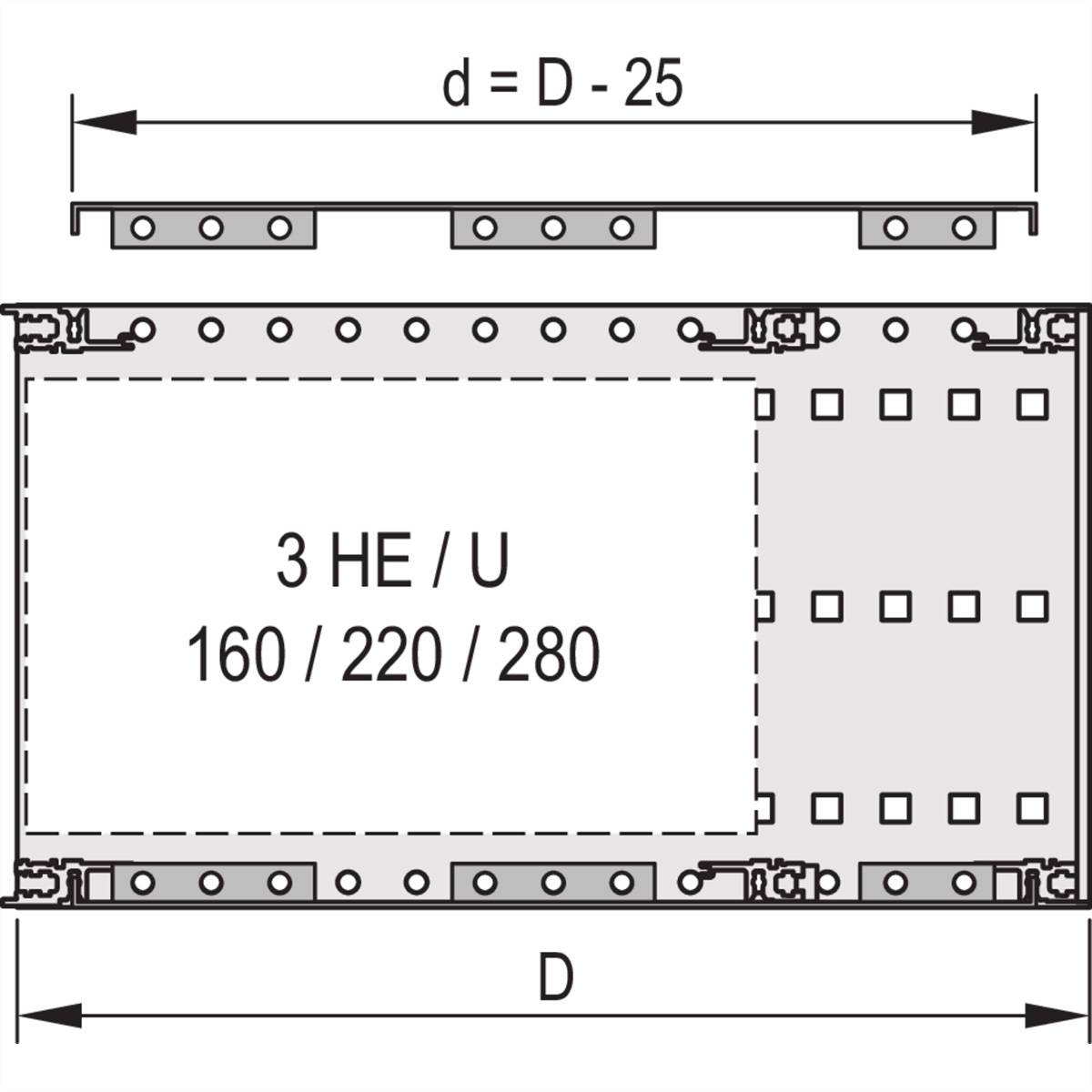

Diagram of an enclosure shows dimensions: depth is "D", upper depth "d = D - 25". Three height units '3 HE/U' with widths 160/220/280 mm.

1/2

Product type

Shield

Factory colour

Multicolour

Content

2 pc(s)

Type

24560080

RoHS-compliant

Yes

Datasheet (PDF)

Deutsch (Deutschland)

nVent SCHROFF

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SCHROFF cover plate for screwing to the side PANEL - COVER PLATE EMC 84TE 295T 2ST

Our service for you

Technical specifications

Product type: Shield

Factory colour: Multicolour

Content: 2 pc(s)

Type: 24560080

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2990738 nVent SCHROFF 24560080 Shield 2 pc(s)

User & Safety Instructions

User & Safety Instructions 2990738 nVent SCHROFF 24560080 Shield 2 pc(s)

Description

EuropacPro cover plate for screwing to the side panel, 84 TE, 295 mm
COVER PLATE EMC 84HP 295D 2PC
Use with all module rails possible
Cover plate for mounting 160 mm, 220 mm or 280 mm deep PCBs
Lateral fold-out for fixing the module rails in a depth of 160 mm or 220 mm
Shielding is done with optional EMC stainless steel seal, between cover plate and module rail
