nVent SCHROFF 24572607 Front panel 2 Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Product type
Front panel
Material
Aluminium
Height
2 U
Features
slotted
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Front panel
- Features
slotted
- Material
Aluminium
- Height
2 U
- Content
1 pc(s)
- Type
24572607
Documents & Downloads
Datasheet
Datasheet 3204742 nVent SCHROFF 24572607 Front panel 2 Aluminium 1 pc(s)
Datasheet 3204742 nVent SCHROFF 24572607 Front panel 2 Aluminium 1 pc(s)
Datasheet 3204742 nVent SCHROFF 24572607 Front panel 2 Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3204742 nVent SCHROFF 24572607 Front panel 2 Aluminium 1 pc(s)
Description
RatiopacPRO, EMC front panel / rear panel, plugged, shielded, 4 U, 28 TE

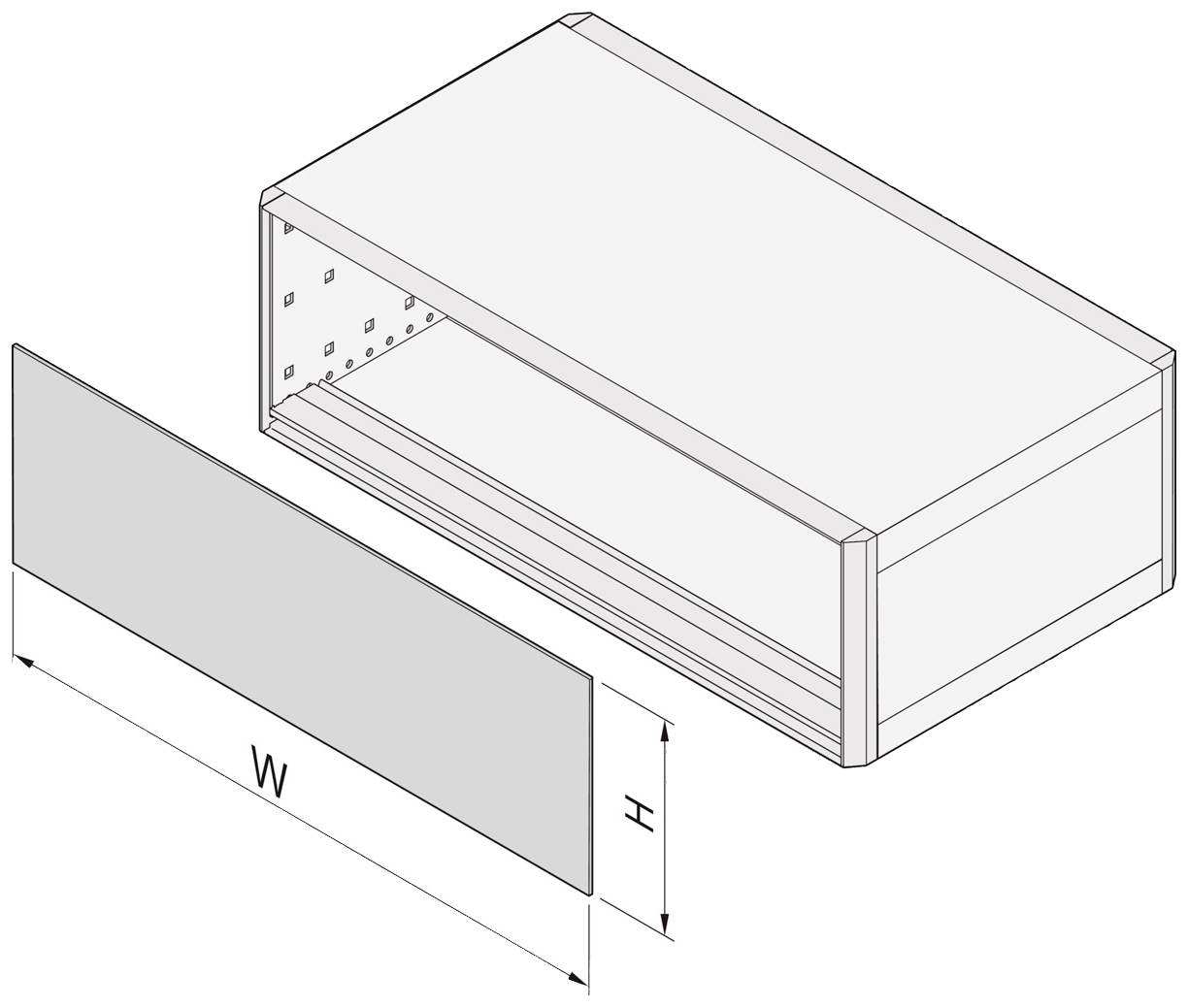

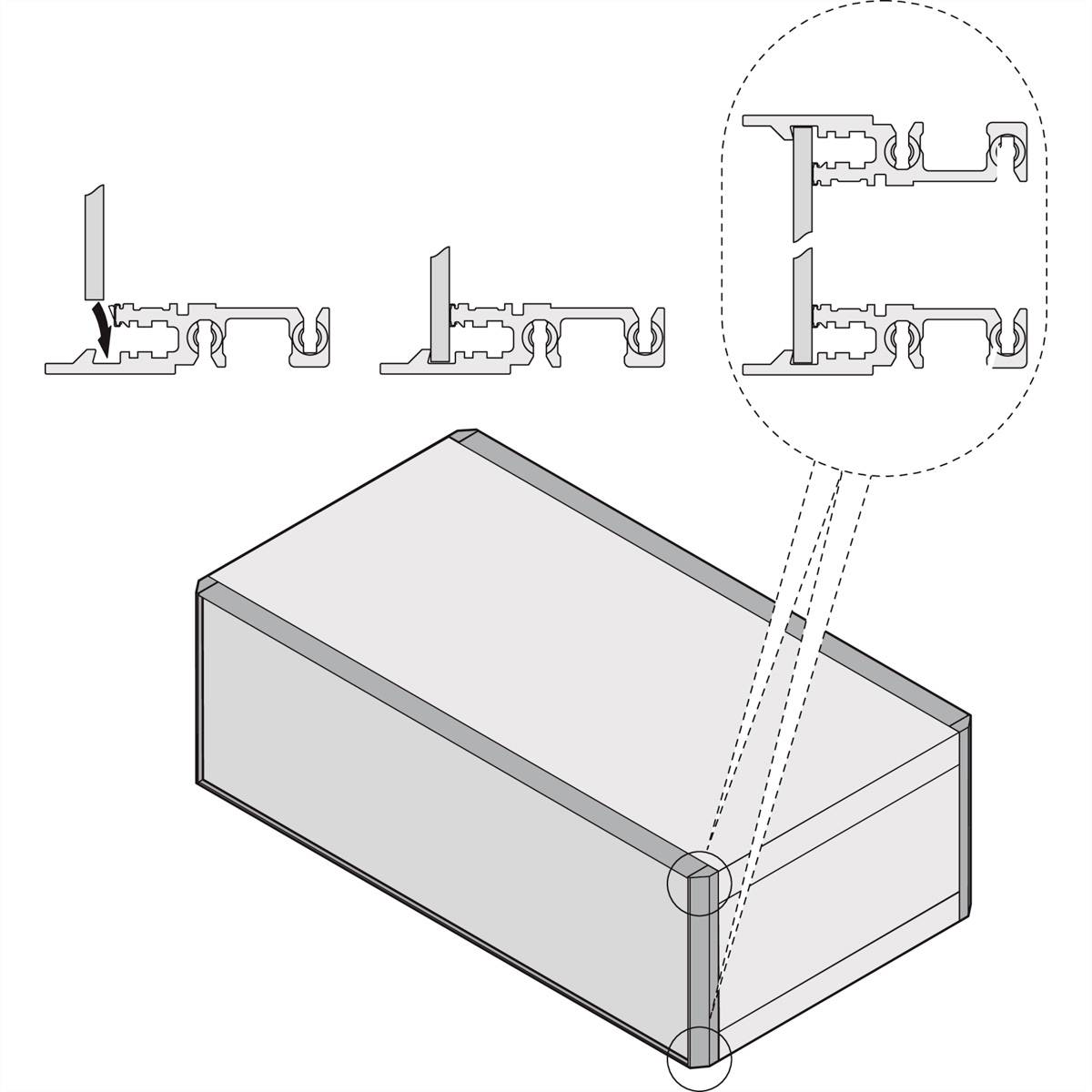

TERRATIO ACPRO EMC front panel, slotted (slotted), shielded, 2 HE, 84 TE, 2.5 mm, Al, anodized on the front, conductive on the rear; the EMC front plate can be inserted into special module rails with an increase. No screws are required for mounting. The design allows the user to use a front film. To obtain a shielded housing, all EMC seals must be installed (front panel/rear panel ‐ side panel; ‐ side panel; front panel/rear panel ‐ module rail; module rail ‐ module rail).
This text is machine translated.
TERRATIO ACPRO EMC front panel, slotted (slotted), shielded, 2 HE, 84 TE, 2.5 mm, Al, anodized on the front, conductive on the rear; the EMC front plate can be inserted into special module rails with an increase. No screws are required for mounting. The design allows the user to use a front film. To obtain a shielded housing, all EMC seals must be installed (front panel/rear panel ‐ side panel; ‐ side panel; front panel/rear panel ‐ module rail; module rail ‐ module rail).
This text is machine translated.
