nVent SCHROFF 24576107 19" rack chassis 363.7 x 155.5 x 326 Multicolour 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
19" rack chassis
Width
363.7 mm
Height
155.5 mm
Features
with air vents
Datasheet (PDF)
Highlights & Details
SCHROFF COMPLETE HOUSING, EMC-SHIELDED - PROPAC PRO HOUSING 3HE 63TE 326T
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
19" rack chassis
- Features
with air vents
- Factory colour
Multicolour
- Width
363.7 mm
- Height
155.5 mm
- Content
1 pc(s)
- Dim
(W x H x D) 363.7 x 155.5 x 326 mm
- RoHS-compliant
Yes
- Depth
326 mm
- Type
24576107
- Rack unit
3 U
- Weight
3.989
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2991018 nVent SCHROFF 24576107 19" rack chassis 363.7 x 155.5 x 326 Multicolour 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2991018 nVent SCHROFF 24576107 19" rack chassis 363.7 x 155.5 x 326 Multicolour 1 pc(s) Piece
Description

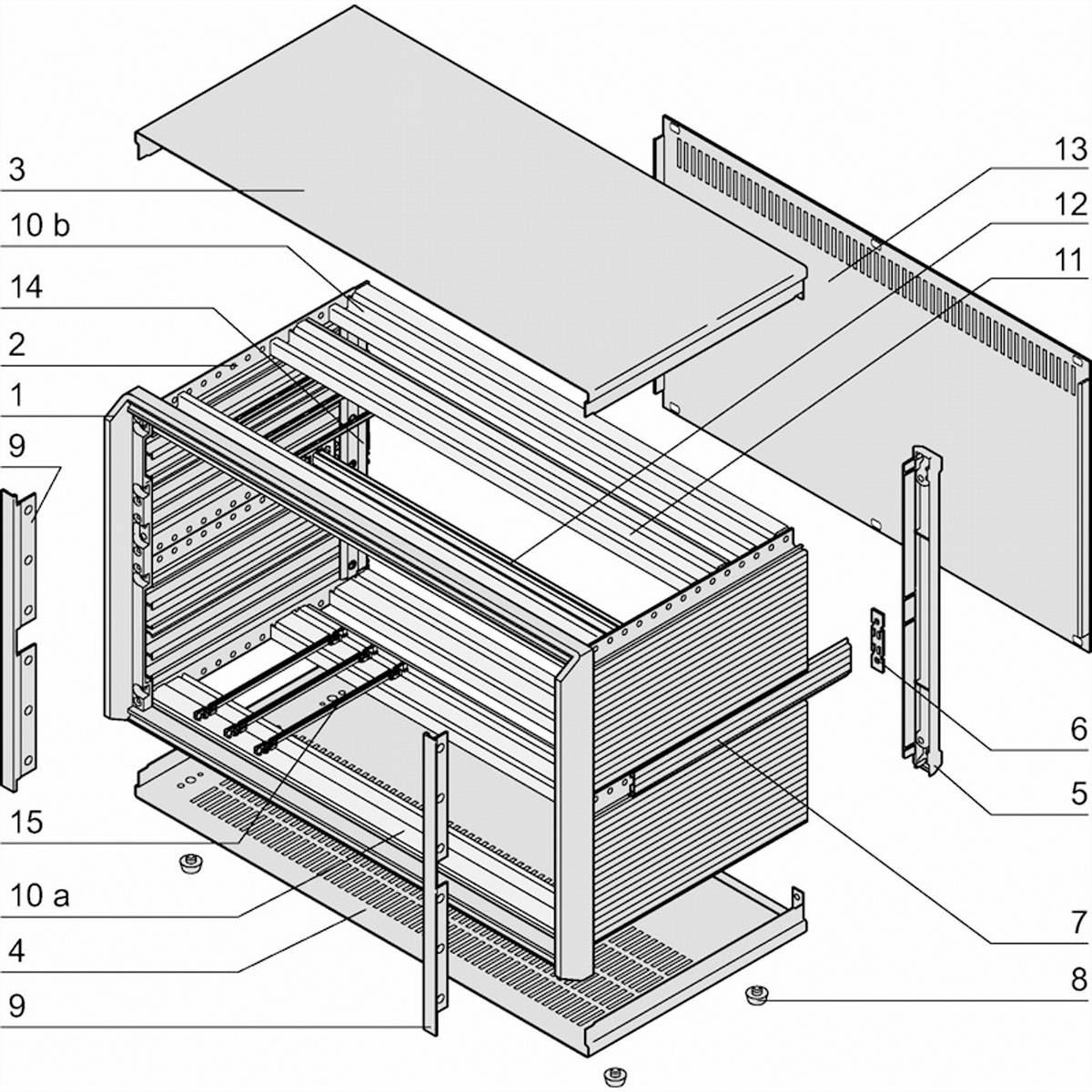

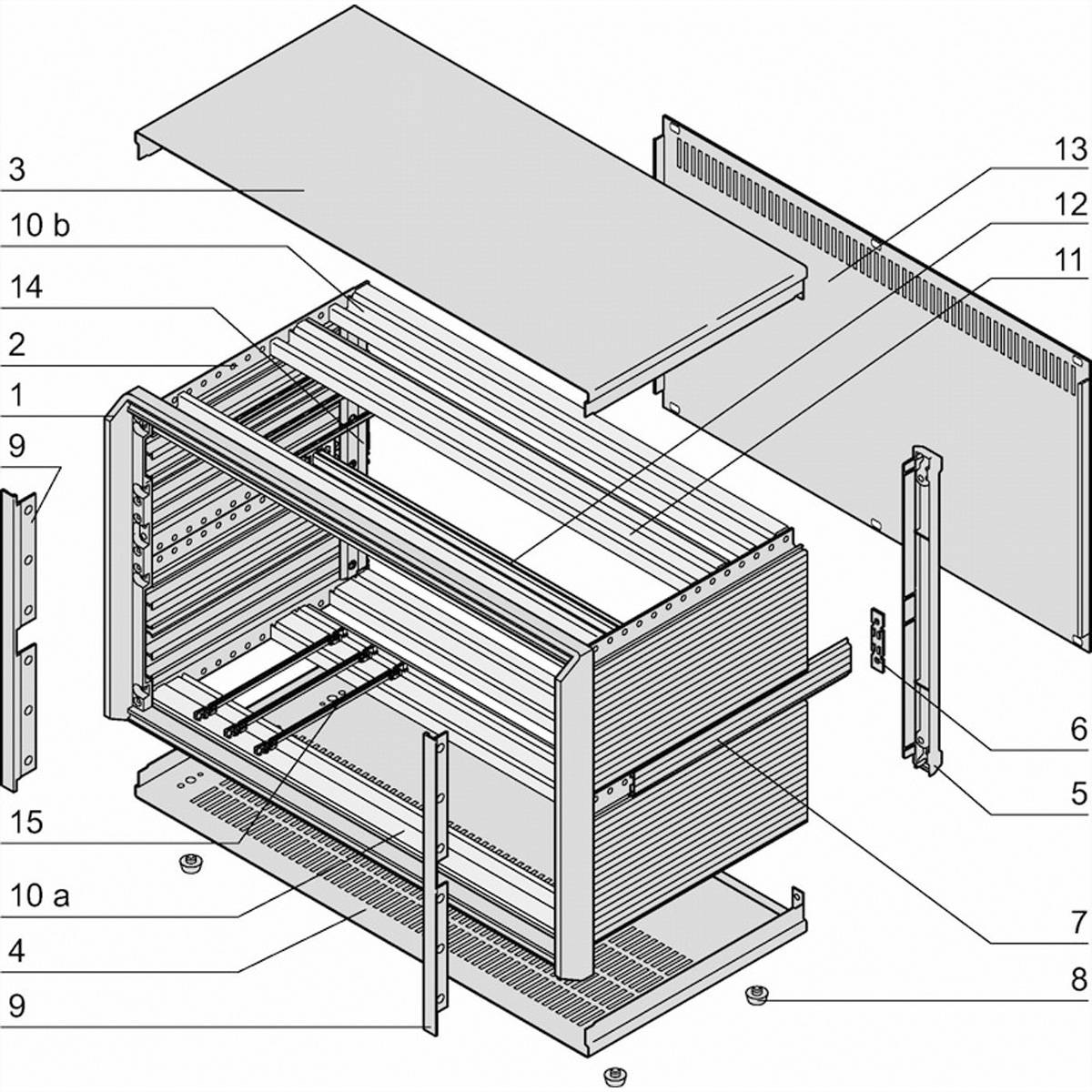

Complete desktop enclosure, PropacPRO shielded, 3 HE, 63 TE, 326 mm
PROPAC PRO CASE 3U 63HP 326D
Table case with pre-assembled expansion parts according to IEC 60297-3-101. Prepared for 19" expansion components, such as plug-in modules and European cards
Ventilation slots in base plate
Rear wall with ventilation slots
This text is machine translated.
PROPAC PRO CASE 3U 63HP 326D
Table case with pre-assembled expansion parts according to IEC 60297-3-101. Prepared for 19" expansion components, such as plug-in modules and European cards
Ventilation slots in base plate
Rear wall with ventilation slots
This text is machine translated.
