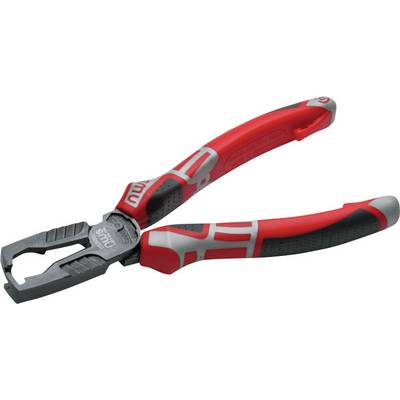

NWS 1451-69-180 Cable stripping pliers incl. cable stripper 10 mm² (max) 8 up to 13 mm
EAN:
Part number:
Item no:
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Soft Wire 220 N/mm² Copper, aluminum, plastic cutting value in millimeters: 6
- Hard Wire 1800 N/mm² wire rope fiber, steel wire-cutting value in millimeters: 2
- Cable-Al + Cu multi-conductor one- and multi-wire-cutting value in millimeters: 11 mm
- Cable minimum cable cross-section in millimeters: 5
- Cable Maximum Cable cross-section in millimeters: 16.
- Product type
Cable stripping pliers
- Suitable for
Round cable
- Operating range (diameter)
8 up to 13 mm
- Working area diameter (min.)
8 mm
- Operating range (diameter) (max.)
13 mm
- Working area (cross section)
10 mm² (max)
- Operating range (cross section) (max.)
10 mm²
- Material
Tool steel
- Material properties
tempered
- Length
180 mm
- Weight
230 g
- Features
incl. cable stripper
Description
For cutting of hard and soft wires.
This text is machine translated.
This text is machine translated.
Features
- With cable stripper function for all common cables of Ø 8 mm to 13 mm diameter.
- For precise, fast and safe stripping of all common cable
- Blades are also induction-hardened
- Precision cutting for finest wires
- With V-shaped cutter for wires and stranded conductors up to a max. diameter of 5 mm or 10 mm² conductor cross-section
- Power transfer with optimum leverage for easy and fatigue-free working
- Ergonomically shaped soft grip handles with multi-component covers
- The soft grip handles with system socket for the admission of optionally available accessories, such as the easy to sliding system clip for protection against crash
- From Special tool steel, forged, oil-hardened.
