Technical specifications
- Product type

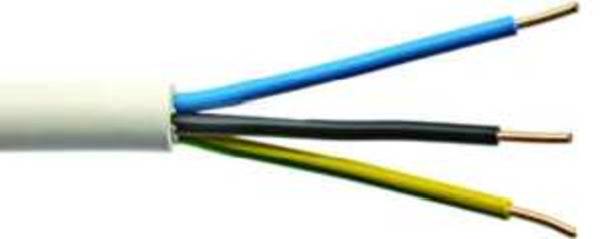

Sheathed cable
- Cable type
NYM-J
- No. of leads
3 x
- Cross section (each core)
2.5 mm²
- Cross section
3 x 2.5 mm²
- Cable features
PVC coating
- Content
100 m
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
No
- Manufacturer part #
NYM-J 3x2,5 RG100
- Insulation material
PVC
- Type
NYM-J 3x2,5 RG100
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
No (0)
2.5 mm²
Polyvinyl chloride (PVC)
500 V
Grey
Polyvinyl chloride (PVC)
300 V
3
10.0 mm
TRUE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984947 NYM-J 3x2,5 RG100 Sheathed cable NYM-J 3 x 2.5 mm² 100 m
Description
According to DIN VDE 0250 part 204, structure: One or multi-wired copper conductor, with multi-wired lines the wires are stranded, insulation sleeve made of PVC and pressed with plastic filling mixture, outer sheath made of PVC, use: For fixed laying on, in and under plaster, in dry and damp rooms, outdoors (but not in direct sunlight), but not in the ground
