Technical specifications
- Setting temperature 5 to 70°C.
- Construction: According to VDE 0250 part 204
- Product type
Sheathed cable
- Cable type
NYM-J
- No. of leads
5 G
- Cross section (each core)
1.5 mm²
- Cross section
5 G 1.5 mm²
- Factory colour
Grey
- Outside Ø
10.1 mm
- Content
100 m
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Manufacturer part #
NYM-J 5x1,5 RG100
- Insulation material
PVC
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+70 °C
- Type
NYM-J 5x1,5 RG100
1.5 mm²
Polyvinyl chloride (PVC)
500 V
Grey
Polyvinyl chloride (PVC)
300 V
5
10.1 mm
TRUE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984939 NYM-J 5x1,5 RG100 Sheathed cable NYM-J 5 G 1.5 mm² Grey 100 m
Description

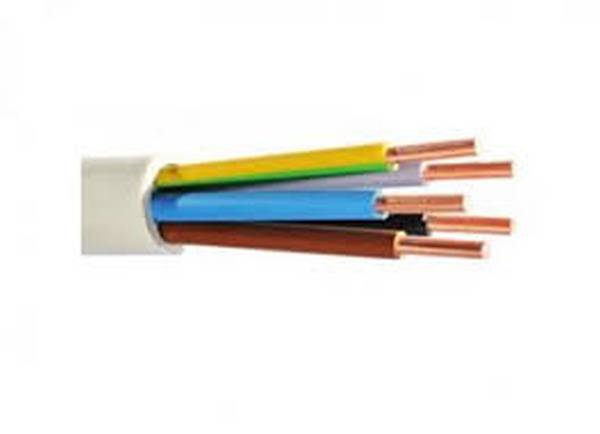

Multi-core PVC installation sheathed cable laying over, on, in and under plaster in dry, damp and wet rooms as well as in masonry and concrete (unsuitable for direct embedding in shaken, vibrated or rammed concrete), suitable for outdoor use (provided protected from direct sunlight), but not in the ground or water, single-wire copper conductor, PVC wire insulation, outer sheath of gray PVC with plastic filling mixture, permitted operating temperature from -40°C to +70°C. Insertion temperature from 5 to 70°C, nominal voltage Uo/U 300V/500V, developed according to VDE 0250 Part 204
