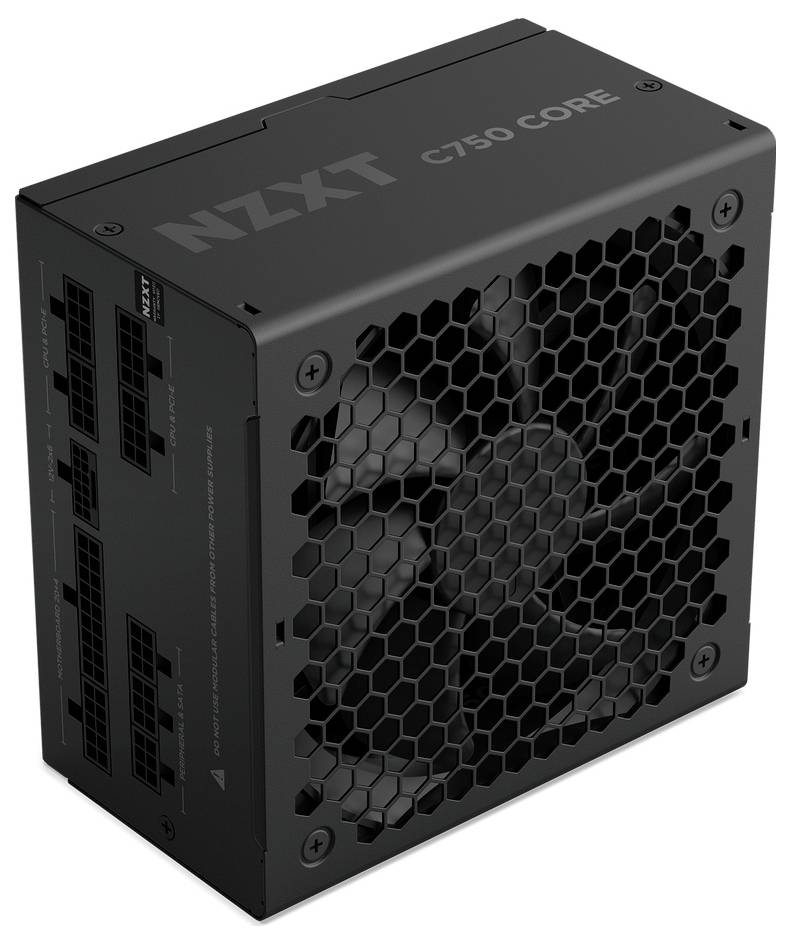

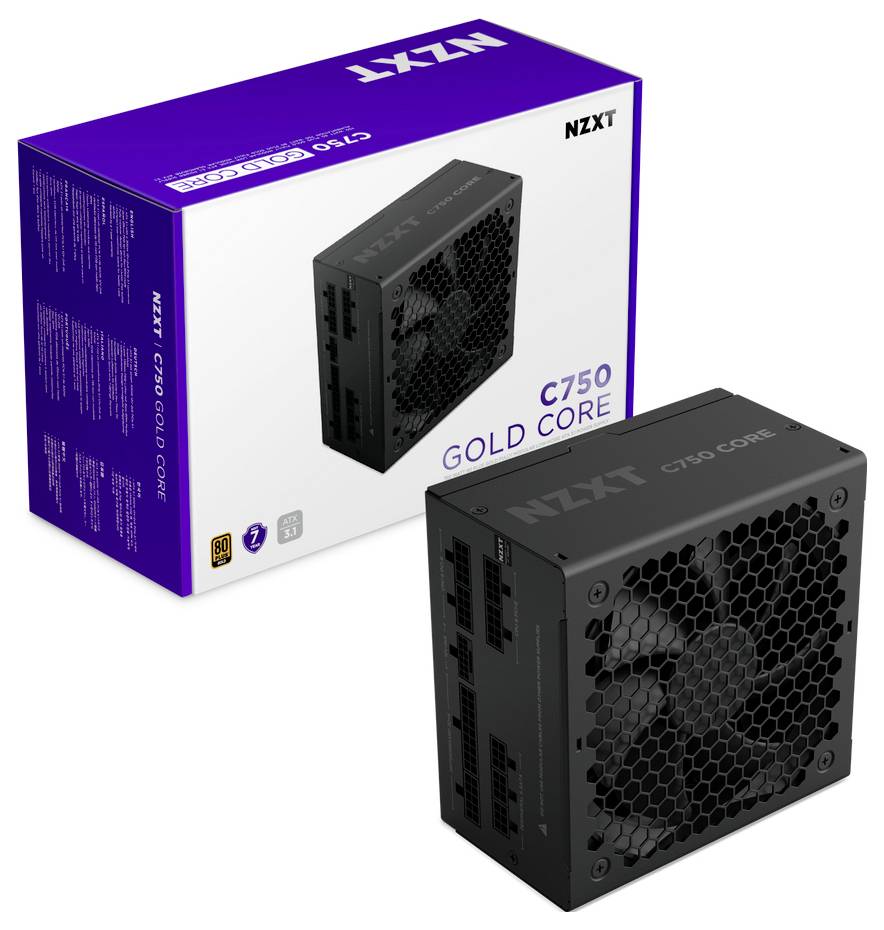

NZXT C750 Power supply unit 750 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
750 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
NZXT C750 Power supply unit
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 2x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
750 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- ATX version
ATX 3.1
- Dim
(W x H x D) 150 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
150 mm
- Weight
3.125
- +12 V/DC (1)
62.5 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
6
- 6-pin PCIe
2
- 6-pin PCIe
2
- 5-pin SATA
6
- Features
ATX 3.1
- Output rating > 500 W
750 W
- Output rating > 700 W
750 W
- Power rating
501 - 750 W
- Cooling
Active
- Fan size
135 mm
- Max. operating noise
40.5 dB
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Motherboard power cable length
60 cm
- CPU power cable length
70 cm
- ATX Power connector (24-pin)
yes
- PCI Express connector
yes
- PCI Express power connectors (12+4 pin)
1
- Mean time between failures (MTBF)
100000 h
- Efficiency
89.53 %
- On/off switch
yes
- CPU power connector (4+4 pin)
yes
- Fan speed
0 - 2300 RPM
- Combined power (+3.3V)
120 W
- Combined power (+12V)
750 W
- Combined power (+5V)
120 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3533494 NZXT C750 Power supply unit 750 W ATX 80 PLUS Gold
