Buy O/L relay 1 maker, 1 breaker Siemens 3RB3113-4PE0 1 pc(s)

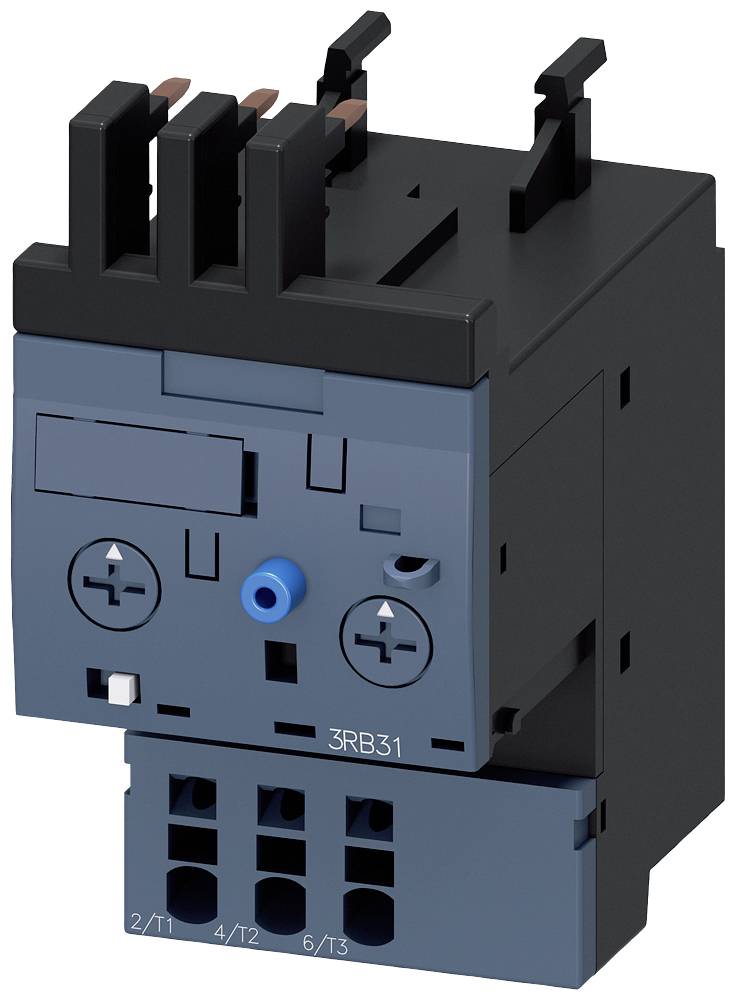

Electric contactor with a blue front panel, featuring multiple terminal connections at the top and bottom. The device is used for controlling electrical circuits.

Image similar

'Open electrical control cabinet with multiple rows of electrical devices and cables, used for electricity control and distribution.'

Diagram shows components of an electrical installation with labelled points: Supports, Relays, Accessories, Pushbuttons and Reset Mechanisms.

Circuit diagram of an electrical control panel with test and reset buttons, 24 V connection, and multiple terminals numbered 1L/1 to 6/T3.

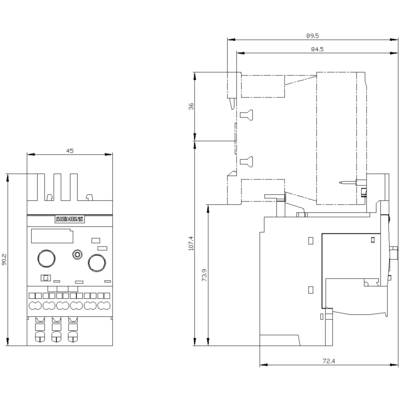

Technical drawing of an electrical device with front and side view. Dimensions are specified in millimetres.

A circuit diagram of a Siemens Sirius overload relay. Shows connections and buttons for resetting and testing the device.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 163.86 / piece)

€

Report legal concerns

Technical specifications

Mounting type: installing contactor
Contact protection against electrical shock: Finger-safe
Number of pins: 3
Tripping class: CLASS 5E, 10E, 20E and 30E adjustable

Type: 3RB3113-4PE0

Type: S00

Operating voltage: 690 V AC

Contact type: 1 maker
1 breaker

Connection: Spring-loaded connector

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 72 mm

Dim: (L x W x H) 90 x 45 x 72 mm

Content: 1 pc(s)

Length: 90 mm

Nominal current: 4 A

AWG max.: 12

AWG (min.): 20

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: Adjustable

: Spring clamp connection

Product type: O/L relay

Documents & Downloads

Datasheet

Datasheet 1743101 O/L relay 1 maker, 1 breaker Siemens 3RB3113-4PE0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1743101 O/L relay 1 maker, 1 breaker Siemens 3RB3113-4PE0 1 pc(s)

Description

Overload relay 6...25 A for motor protection Size S0, Class 5...30 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset Internal ground fault detection
