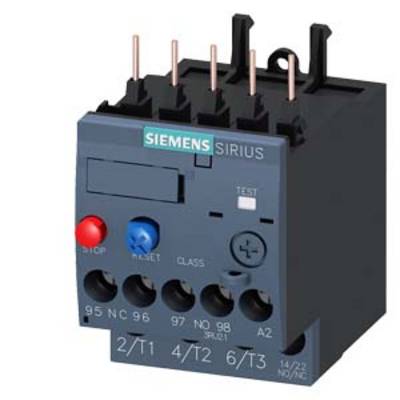

'Illustration of a Siemens Sirius overload relay with test button, connection terminals, and coloured reset and stop buttons.'

Image similar

'Illustration of a Siemens Sirius overload relay with test button, connection terminals, and coloured reset and stop buttons.'

An open electrical cabinet shows several rows of electrical components and wiring, neatly and cleanly arranged.

'Diagram shows an electrical switching unit with accessories: individual listing, overload relay, remote RESET, push button.'

Circuit diagram of an electrical control system with test buttons 'TEST', 'RESET', 'STOP' and connections between the nodes.

'Technical drawing of a protective device with side and frontal views, dimensions in millimetres, Siemens Sirius Model.'

1/6

Image similar

Siemens

Datasheet (PDF)

Deutsch (Deutschland)

Sales and shipping:

Number

Piece(s)

Total (€ 63.86 / piece)

€

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Type: 3RU2116-0DB0

Type: S00

Operating voltage: 690 V

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 76 x 70 mm

Content: 1 pc(s)

Weight: 0.1420 kg

Nominal current: 0.32 A

AWG max.: 12

AWG (min.): 20

Cross section (flexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

Product type: O/L relay

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1729727 O/L relay Siemens 3RU2116-0DB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1729727 O/L relay Siemens 3RU2116-0DB0 1 pc(s)

Description

Circuit breaker size S00 for transformer protection A-release 0.28...0.4 A N-release 8.2 A screw terminal Standard switching capacity
