Buy O/L relay Siemens 3RU2116-0EC1 1 pc(s)

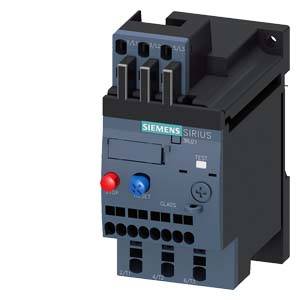

'A Siemens Sirius contactor with test button and screw terminals, suitable for electrical circuits in industrial applications.'

Image similar

Opened electrical cabinet with electronic components and cables, suitable for industrial controls and system integration.

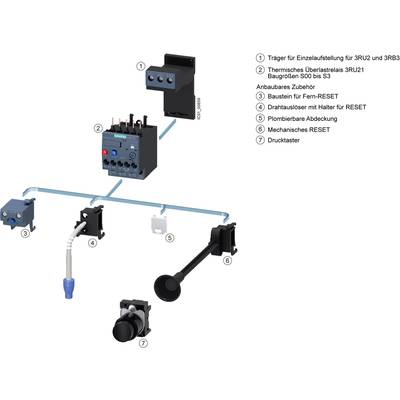

Mechanical and electrical components for switchgear, numbered 1 to 7: Supports, overload trip units, accessories and reset mechanisms.

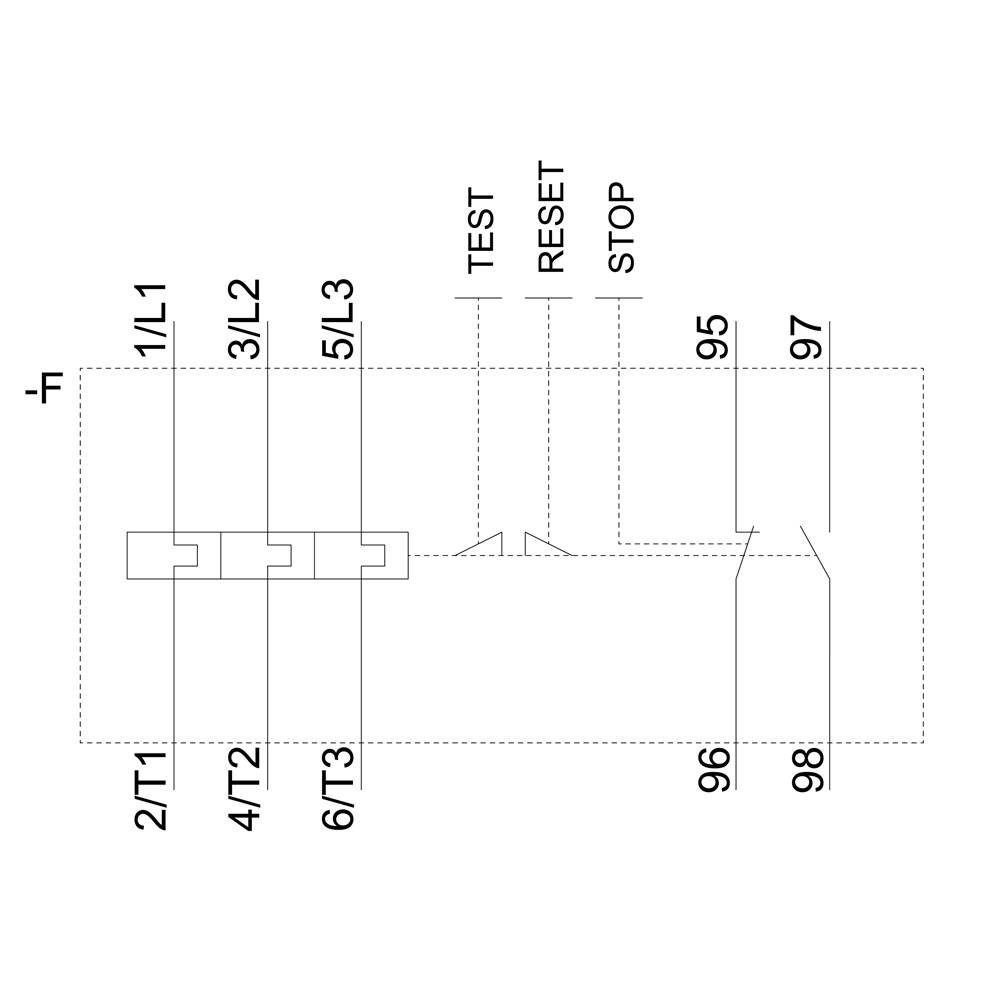

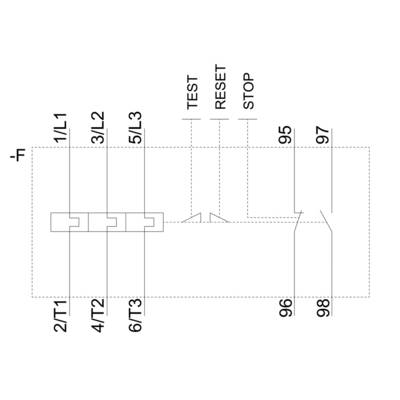

Circuit diagram of a power switch with connections for line 1, 2, 3 and 6. Buttons: 'TEST', 'RESET', 'STOP'. Voltage: 95-98V.

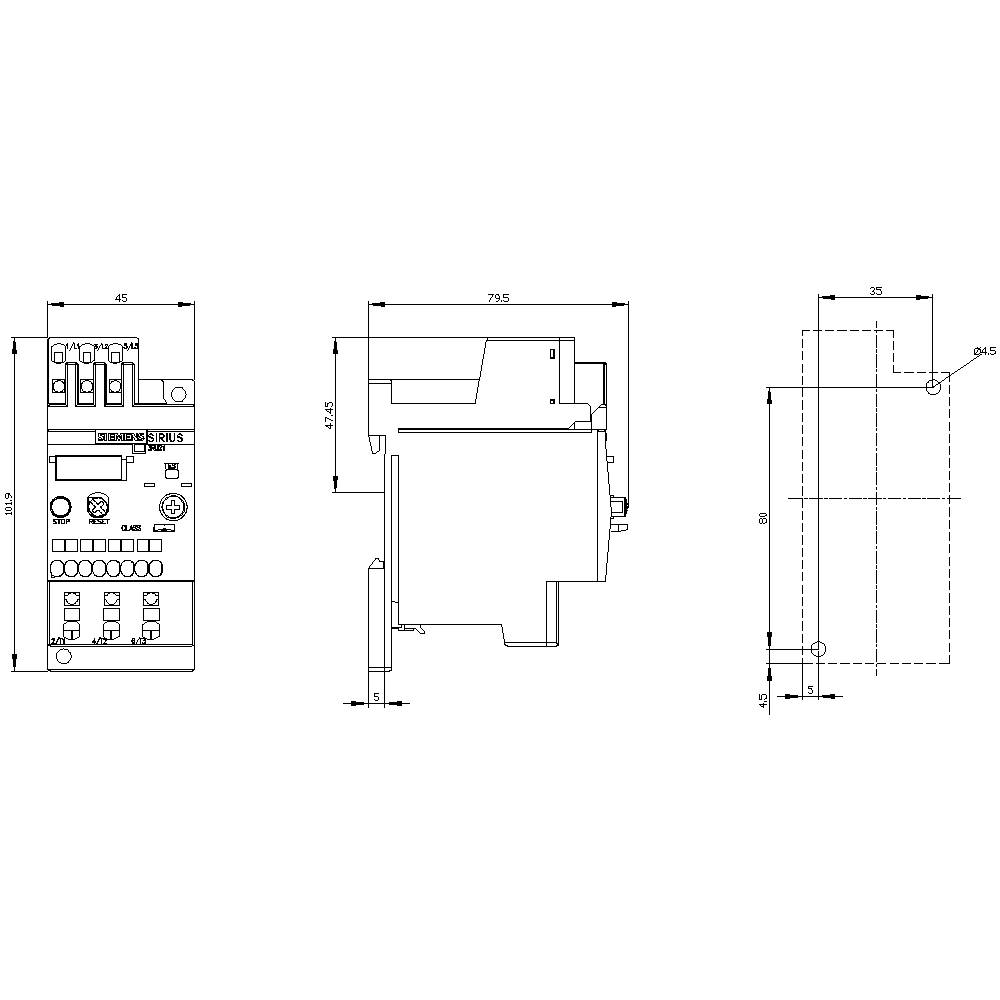

Technical drawing of an electrical device with front and side views, including dimensional specifications for installation purposes.

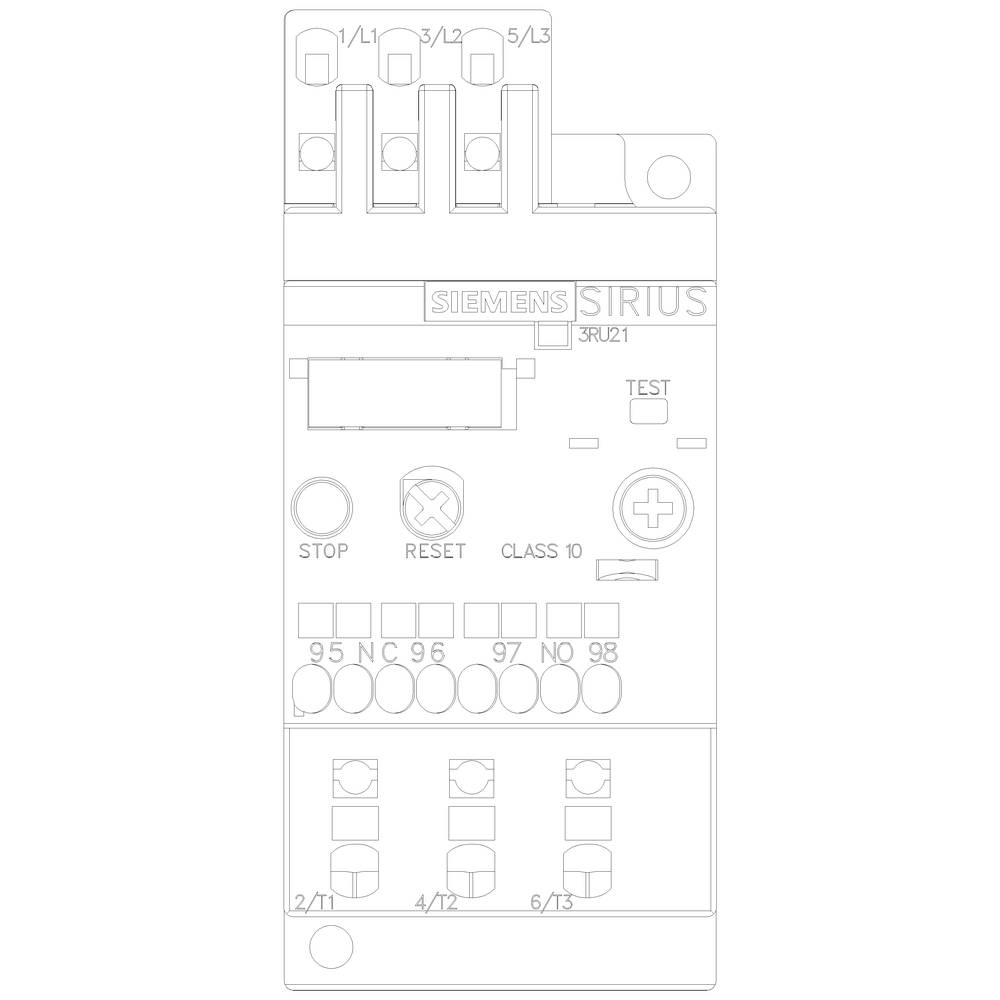

Electronic device with Siemens branding, buttons for 'Stop' and 'Reset', and a test switch. Markings for electrical connections are visible.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Type: 3RU2116-0EC1

Type: S00

Operating voltage: 690 V

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 102 mm

Depth: 79 mm

Dim: (W x H x D) 45 x 102 x 79 mm

Content: 1 pc(s)

Nominal current: 0.4 A

AWG max.: 12

AWG (min.): 20

Cross section (flexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

Product type: O/L relay

Documents & Downloads

Datasheet

Datasheet 1730540 O/L relay Siemens 3RU2116-0EC1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730540 O/L relay Siemens 3RU2116-0EC1 1 pc(s)

Description

Overload relay 0.55...0.80 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
