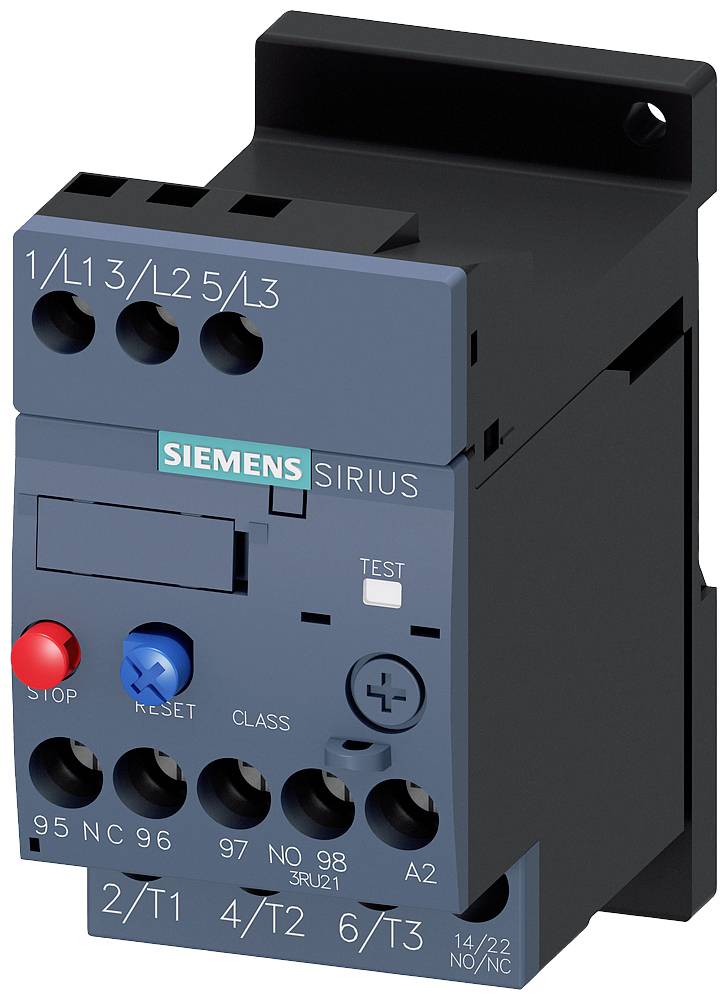

O/L relay Siemens 3RU2116-1AB1 1 pc(s)
EAN:
Part number:
Item no:
Product type
O/L relay
Functions
Overload
Type
3RU2116-1AB1
Type
S00
Operating voltage
690 V
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 88.24
-9 %
€ 80.66
plus VAT.
14-day return policy included
Highlights & Details
LED COVER POS. METAL,230V AC, YELLOW
Our service for you
Technical specifications
- Fuse gG: 6 A, quick-acting: 10A
- Product type
O/L relay
- Type
3RU2116-1AB1
- Type
S00
- Functions
Overload
- Operating voltage
690 V
- Amperage adjustment range (min.)
1.1 A
- Amperage adjustment range (max.)
1.6 A
- Adjustment range (amperage)
1.1 - 1.6 A
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C

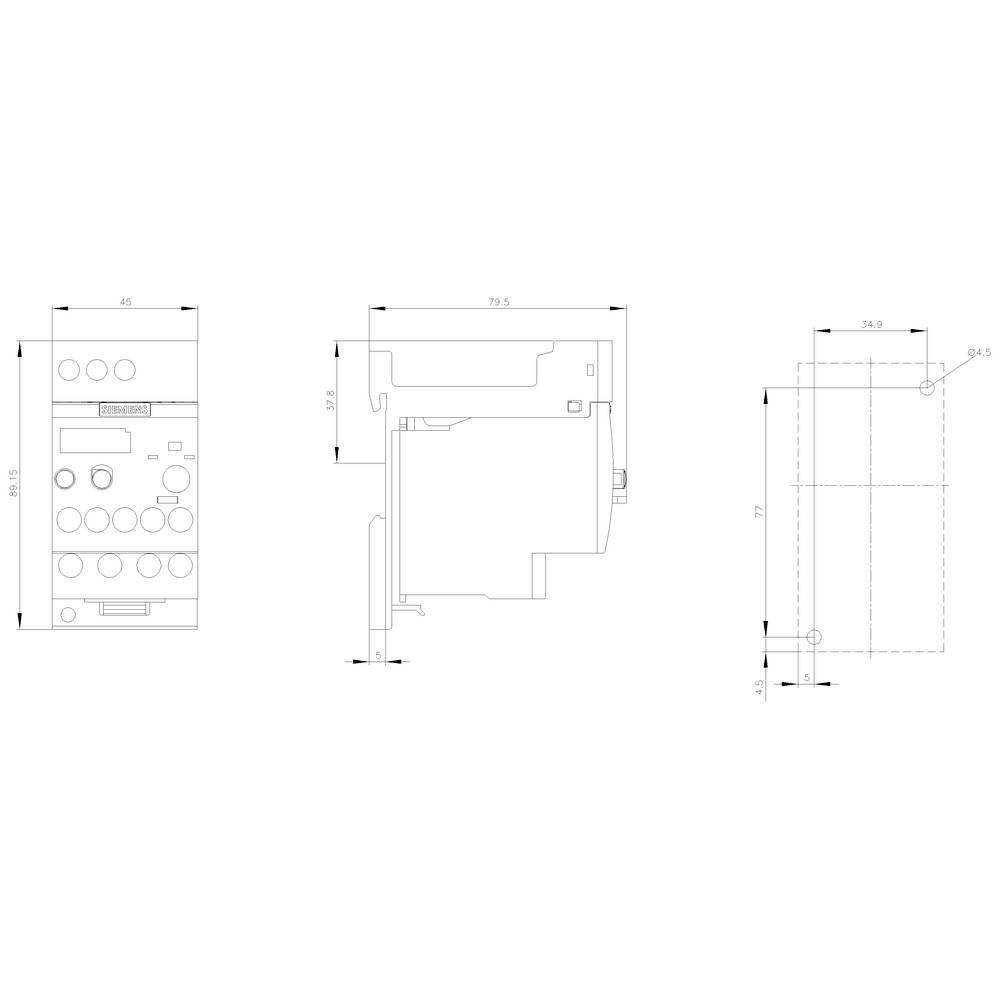

- Width
45 mm
- Height
89 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 89 x 80 mm
- Content
1 pc(s)
- AWG max.
12
- AWG (min.)
20
- Nominal current
1.6 A
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
Separate positioning
1
1
0
CLASS 10
Screw connection
690 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1705879 O/L relay Siemens 3RU2116-1AB1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1705879 O/L relay Siemens 3RU2116-1AB1 1 pc(s)
Description
LED cover for position switch Metal 3SE52, for Enclosure according to EN 50047, 31 mm LEDs, yellow/green, 110-230 V AC Color yellow
