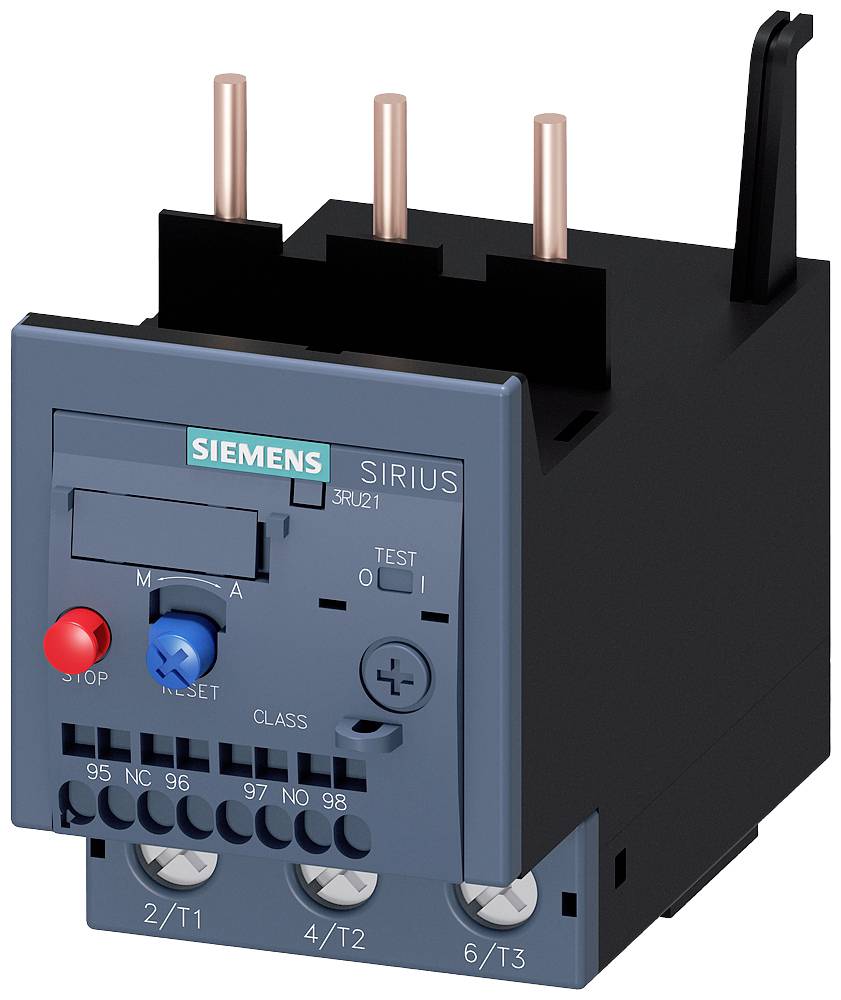

O/L relay Siemens 3RU2136-4HD0 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
O/L relay
Functions
Overload
Type
3RU2136-4HD0
Type
S2
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Technical specifications
- Fuse gG: 6 A, quick-acting: 10A
- Packaging type
Piece
- Product type
O/L relay
- Type
3RU2136-4HD0
- Type
S2
- Functions
Overload
- Operating voltage
690 V
- Amperage adjustment range (min.)
40 A
- Amperage adjustment range (max.)
50 A
- Adjustment range (amperage)
40 - 50 A
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
55 mm
- Height
90 mm
- Depth
105 mm
- Dim
(W x H x D) 55 x 90 x 105 mm
- Content
1 pc(s)
- AWG max.
1
- AWG (min.)
18
- Nominal current
50 A
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (max.)
10 mm²
- Cross section (flexible) (min.)
1 mm²
- Cross section (inflexible) (min.)
1 mm²
Direct attachment
1
1
0
CLASS 10
Screw connection
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744902 O/L relay Siemens 3RU2136-4HD0 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1744902 O/L relay Siemens 3RU2136-4HD0 Piece 1 pc(s)
Description
Overload relay 54...65 A for motor protection Size S2, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
