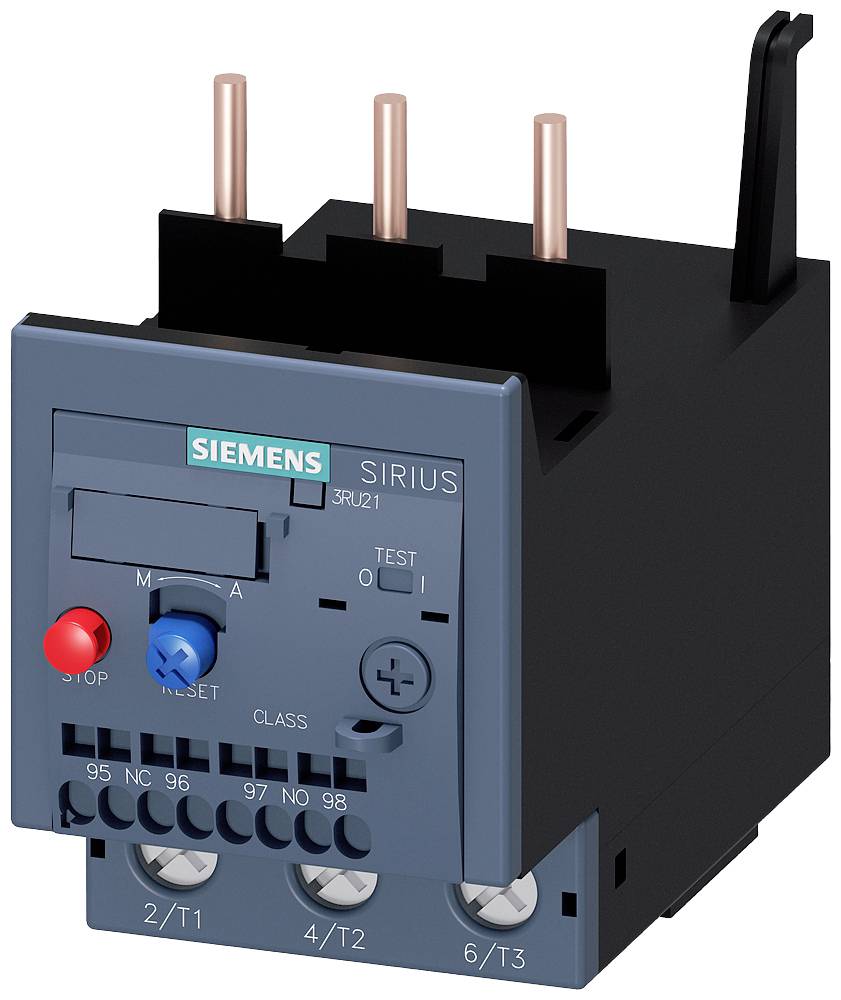

O/L relay Siemens 3RU2136-4KD0 1 pc(s)
EAN:
Part number:
Item no:
Product type
O/L relay
Functions
Overload
Type
3RU2136-4KD0
Type
S2
Features
Automatic/manual switch
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
14 days return policy included
Technical specifications
- Fuse gG: 6 A, quick-acting: 10A
- Product type
O/L relay
- Type
3RU2136-4KD0
- Type
S2
- Functions
Overload
- Features
Automatic/manual switch
- Operating voltage
690 V
- Amperage adjustment range (min.)
62 A
- Amperage adjustment range (max.)
73 A
- Adjustment range (amperage)
62 - 73 A
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
55 mm
- Height
90 mm
- Depth
105 mm
- Dim
(W x H x D) 55 x 90 x 105 mm
- Content
1 pc(s)
- AWG max.
1
- AWG (min.)
18
- Nominal current
73 A
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (max.)
10 mm²
- Cross section (flexible) (min.)
1 mm²
- Cross section (inflexible) (min.)
1 mm²
Direct attachment
1
1
0
CLASS 10 A
Screw connection
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1745422 O/L relay Siemens 3RU2136-4KD0 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1745422 O/L relay Siemens 3RU2136-4KD0 1 pc(s)
Description
