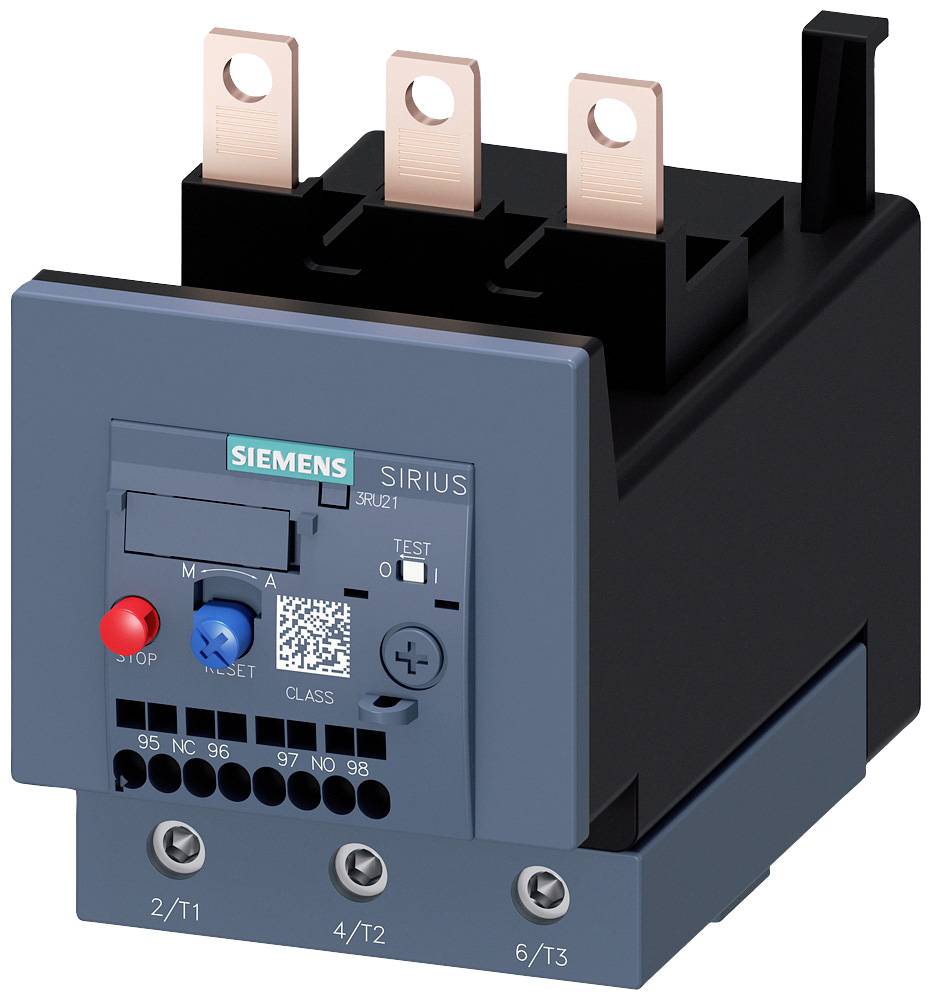

O/L relay Siemens 3RU2146-4HD0 1 pc(s)
EAN:
Part number:
Item no:
Product type
O/L relay
Functions
Overload
Type
3RU2146-4HD0
Type
S3
Operating voltage
690 V
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Highlights & Details
CIRCUIT-BREAKER, 0.22...0.32A
Our service for you
Technical specifications
- Fuse gG: 6 A, quick-acting: 10A
- Product type
O/L relay
- Type
3RU2146-4HD0
- Type
S3
- Functions
Overload
- Operating voltage
690 V
- Amperage adjustment range (min.)
36 A
- Amperage adjustment range (max.)
50 A
- Adjustment range (amperage)
36 - 50 A
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
70 mm
- Height
105 mm
- Depth
125 mm
- Dim
(W x H x D) 70 x 105 x 125 mm
- Content
1 pc(s)
- AWG max.
1
- AWG (min.)
10
- Nominal current
50 A
- Cross section (flexible) (max.)
50 mm²
- Cross section (flexible) (min.)
2.5 mm²
Direct attachment
1
1
0
CLASS 10
Screw connection
1000 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1745431 O/L relay Siemens 3RU2146-4HD0 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1745431 O/L relay Siemens 3RU2146-4HD0 1 pc(s)
Description
Circuit breaker size S0 For transformer protection A-release 0.22...0.32 A Short-circuit release 6.5 A Screw terminal Standard switching capacity !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is 3RV2411-0DA10
