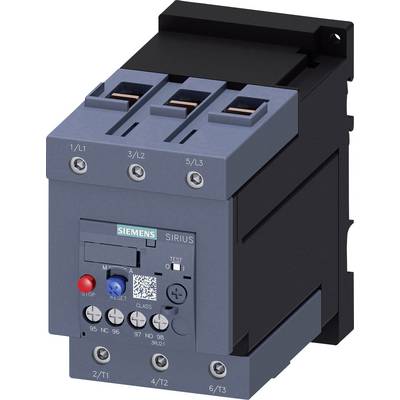

O/L relay Siemens 3RU2146-4KB1 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
O/L relay
Functions
Overload
Type
3RU2146-4KB1
Type
S3
Datasheet (PDF)
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
Technical specifications
- Fuse gG: 6 A, quick-acting: 10A
- Packaging type
Piece
- Product type
O/L relay
- Type
3RU2146-4KB1
- Type
S3
- Functions
Overload
- Operating voltage
690 V
- Amperage adjustment range (min.)
57 A
- Amperage adjustment range (max.)
75 A
- Adjustment range (amperage)
57 - 75 A
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C

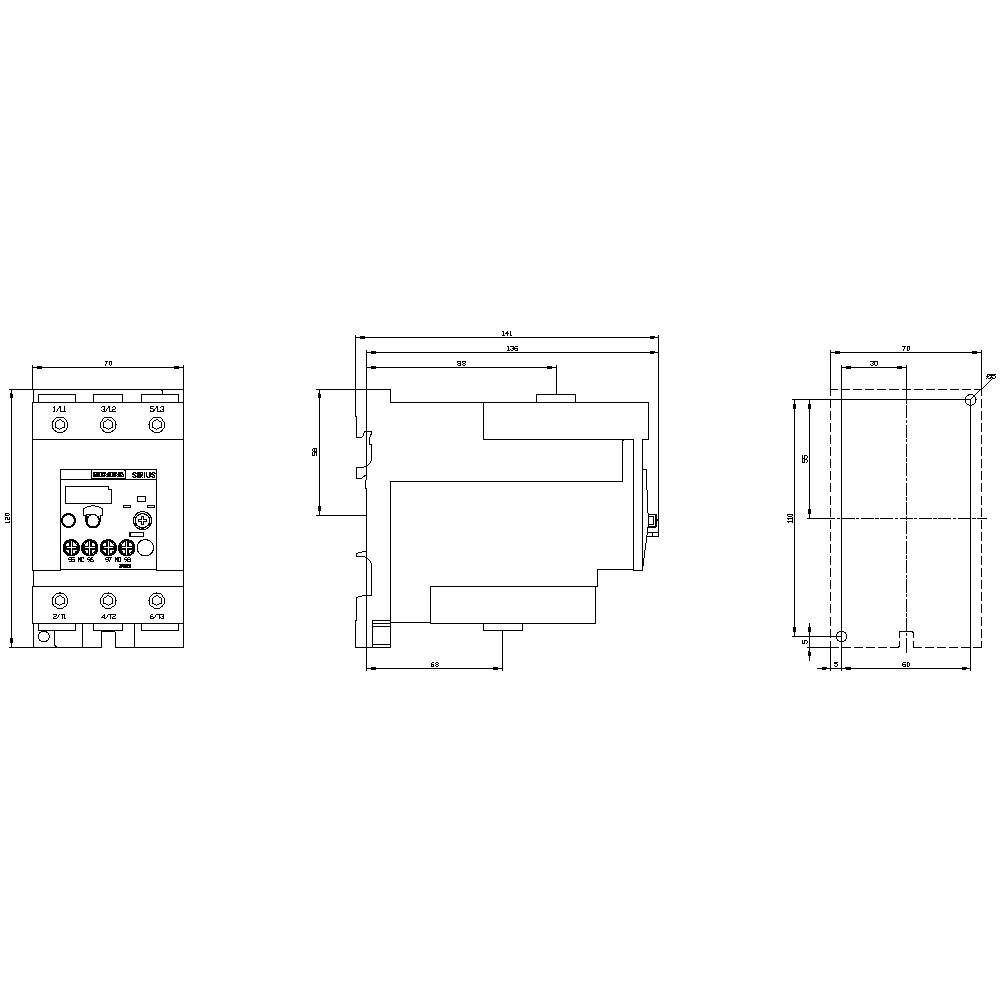

- Width
70 mm
- Height
120 mm
- Depth
140 mm
- Dim
(W x H x D) 70 x 120 x 140 mm
- Content
1 pc(s)
- AWG max.
1
- AWG (min.)
10
- Nominal current
75 A
- Cross section (flexible) (max.)
50 mm²
- Cross section (flexible) (min.)
2.5 mm²
Separate positioning
1
1
0
CLASS 10
Screw connection
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1702474 O/L relay Siemens 3RU2146-4KB1 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1702474 O/L relay Siemens 3RU2146-4KB1 Piece 1 pc(s)
Description
Overload relay 45...63 A for motor protection Size S3, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
