OBO Bettermann 1186418 Clamp 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Clamping range 16..22 mm
- For pipes (metric): 22
- Max. Number of cables: 3
- Material of the clamp: Aluminium
- Material quality of the clamp: Other
- Material of tub: Plastic
- Material quality of tray: Polypropylene (PP)
- Screw material: Aluminium
- Material quality of the screw: Other
- With counter-tray: No.
- Mounting type: Profile rail
- Halogen-free: Yes
- Product type
Clamp
- Component
Universal wire clip
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162179 OBO Bettermann 1186418 Clamp 1 pc(s)
Description

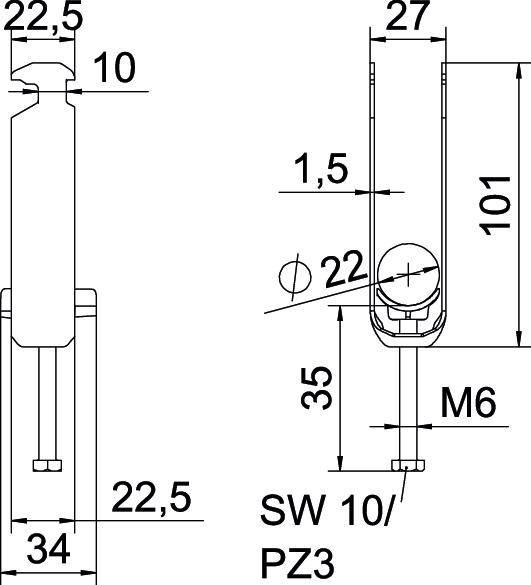

Clamp with hammer head base, plastic press-in tank made of polypropylene. For vertical and horizontal mounting of 3 individual cables at C-profile rails. For slotted width 16 - 17 mm. With 1-common screw at press tray, universal hexagonal screw head SW10, with slit and cross-head. Suitable for installation indoors and outdoors. Several cables should be separated by double tubs. The use of a counter tray is recommended.
