OBO Bettermann 1186762 Clamp 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Clamping range 58..64 mm
- For pipes (metric): 64
- Max. Number of cables: 1
- Material of the clamp: Steel
- Surface protection clamp: Hot-dip galvanized
- Material of tub: Plastic
- Material quality of tray: Polypropylene (PP)
- Surface protection trough: Hot-dip galvanized
- Material of the screw: Steel
- Surface protection screw: Hot-dip galvanized
- With counter-tray: No.
- Mounting type: Profile rail
- Halogen-free: Yes
- Product type
Clamp
- Content
1 pc(s)

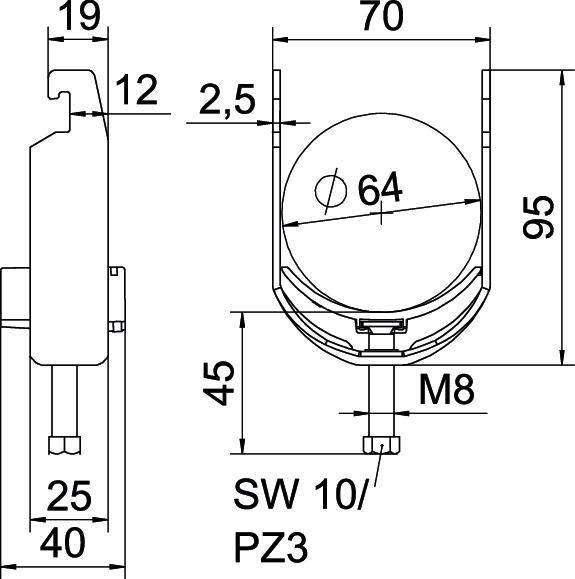

- Dim
(W x H x D) 25.0000 x 70.0000 x 95.0000 mm
- Width
25.0000 mm
- Height
70.0000 mm
- Depth
95.0000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162324 OBO Bettermann 1186762 Clamp 1 pc(s)
Description
Clamp with U-base, plastic pressure tray made of polypropylene. For vertical and horizontal mounting of 1 individual cables at C-profile rails. For slotted width 18 - 22 mm. With 1-common screw at press tray, universal hexagonal screw head SW10, with slit and cross-head. Suitable for interior and exterior installation. The use of a counter tray is recommended.
