OBO Bettermann 1187838 Clamp 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Clamping range 40..46 mm
- For pipes (metric): 46
- Max. Number of cables: 1
- Material of the clamp: Stainless steel
- Material quality of the clamp: Stainless steel 304 (1.4301)
- Surface protection clamp: Untreated
- Material of tub: Plastic
- Material quality of tray: Polypropylene (PP)
- Surface protection trough: Untreated
- Screw material: Stainless steel
- Material quality of screw: Stainless steel 304 (1.4301)
- Surface protection screw: Untreated
- With counter-tray: No.
- Mounting type: Angle profile
- Halogen-free: Yes
- Product type
Clamp
- Component
Cable mount
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162274 OBO Bettermann 1187838 Clamp 1 pc(s)
Description

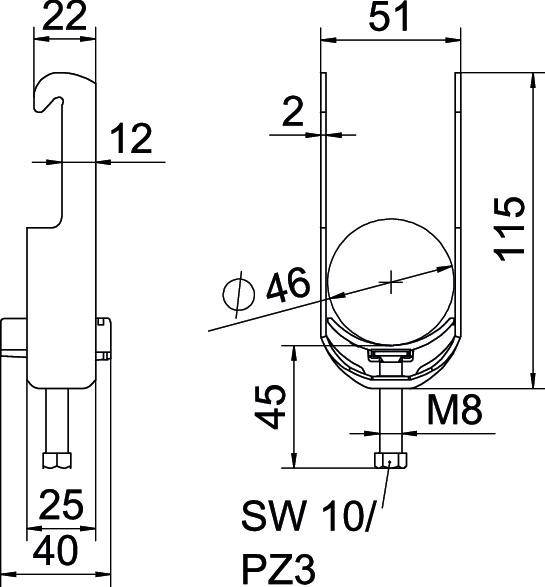

Clamp with W-base, plastic pressure tray made of polypropylene. For vertical and horizontal mounting of 1 individual cables at angle railways up to < 40 mm. With 1-common screw at press tray, universal hexagonal screw head SW10, with slit and cross-head. Suitable for interior and exterior installation. The use of a counter tray is recommended.
