Buy OBO Bettermann 1362780 Spacer ring 1 pc(s)

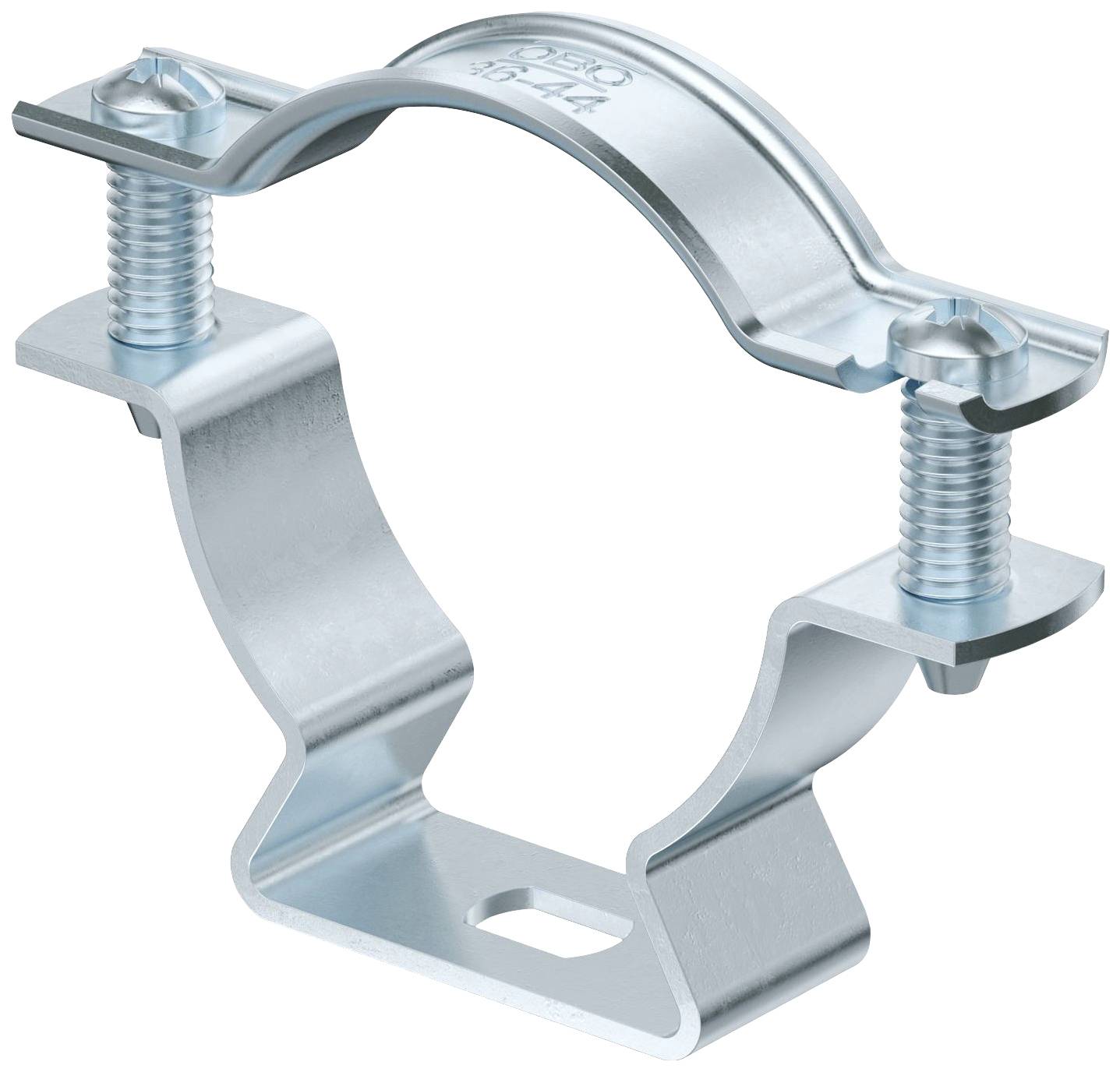

Metal clamp with two screw connections, suitable for securing pipes or cables, demonstrates a simple and robust construction.

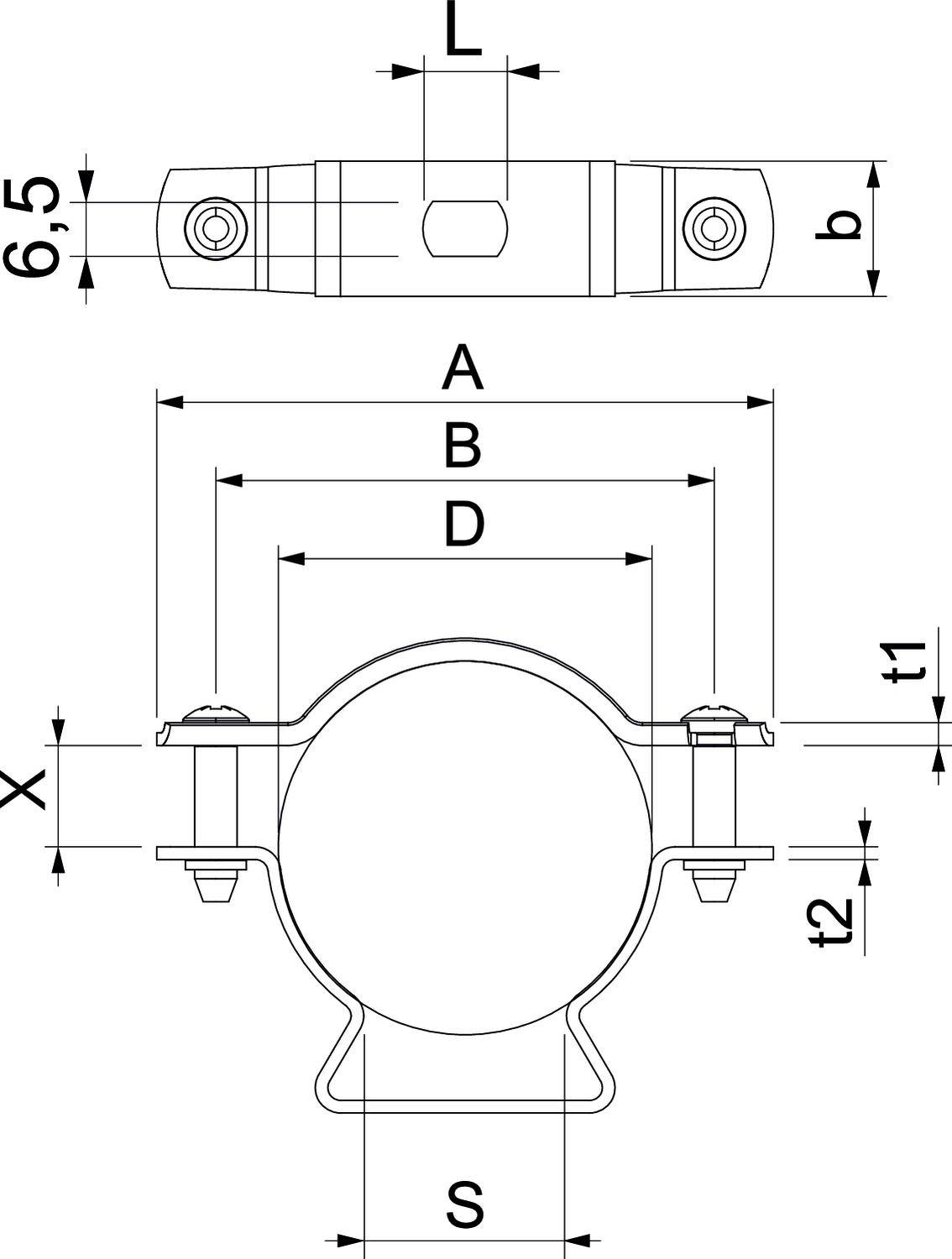

Technical drawing of a pipe clamp with dimensions: L, b, A, B, D, X, S, t1, t2. Shows top and front views.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Spacer ring

Content: 1 pc(s)

Factory colour: Multicolour

Dim: (W x H x D) 73.0000 x 16.0000 x 56.0000 mm

Width: 73.0000 mm

Height: 16.0000 mm

Depth: 56.0000 mm

Material: Steel

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2744189 OBO Bettermann 1362780 Spacer ring 1 pc(s)

Description

Spacer for mounting pipes and cables to wall, ceiling and floor. With self-locking upper section. Mounting via slot. From the size of clamp 20 onwards, suitable for mounting with nail tools or bolt-setting equipment. Approved for maintaining the functionality according to DIN 4102 part 12, retaining functional classes E 30 to E 90 (except ALU).

This text is machine translated.
