OBO Bettermann 2001802 Junction box (L x W x H) 50 x 110 x 110 mm Grey IP67 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section: 6 mm²
- Installation type: flush-mounted
- Number of Entries: 7
- The type of entry: cable gland
- Halogen-free: yes
- With cover: yes
- Sealable: no
- Rated insulation voltage 400 V
- Operating temperature: -30..90 °C
- Product type
Junction box
- Factory colour
Grey
IP67

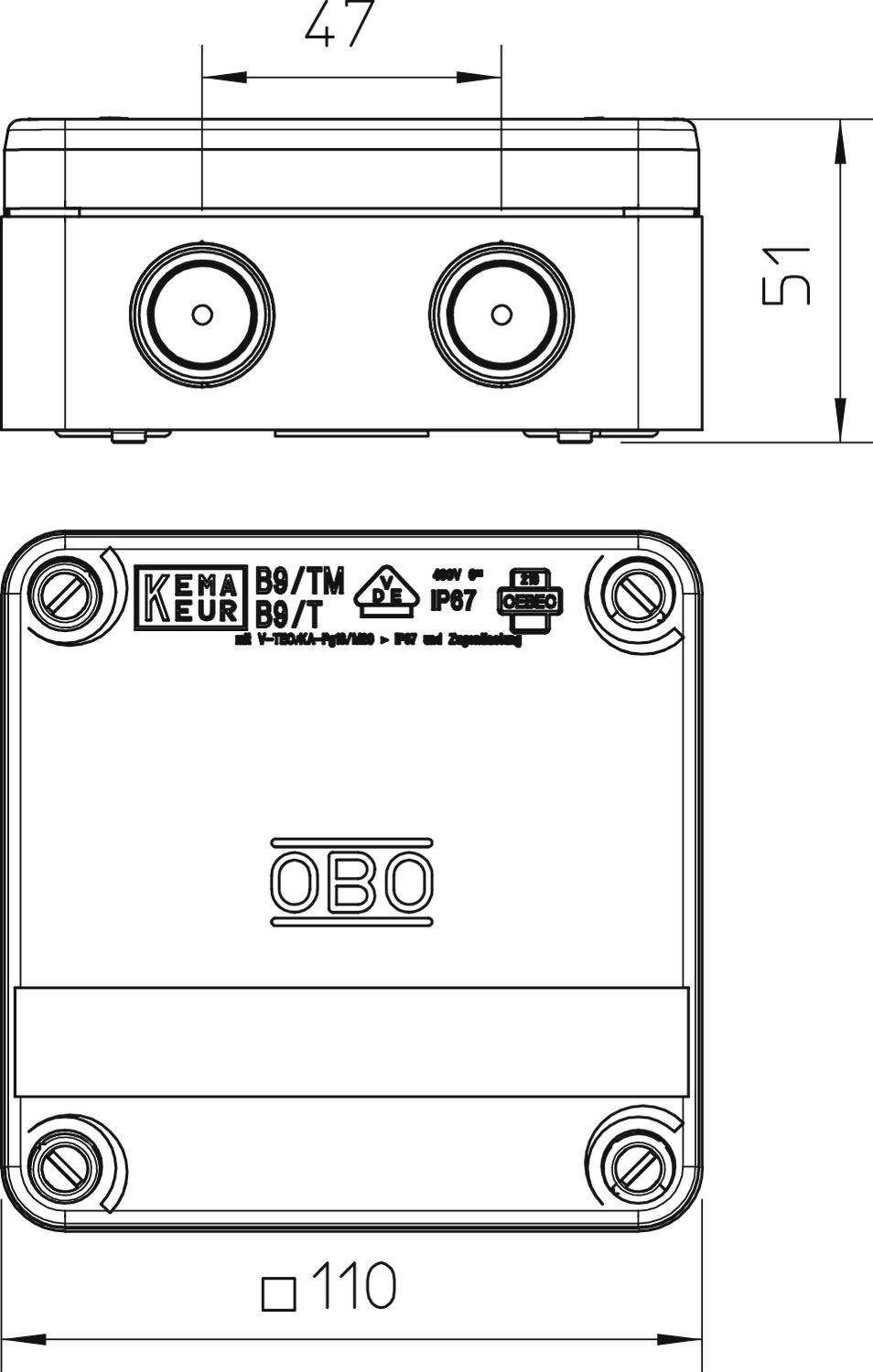

- Dim
(L x W x H) 50 x 110 x 110 mm
- Content
1 pc(s)
- Material
Plastic
- Width
110 mm
- Height
110 mm
- Length
50 mm
- Mounting type
Flush mount
Wall-/ceiling mounting
Grey
110
TRUE
51 mm
Square
Untreated
400 V
110 m
-5-60 °C
Plastic
FALSE
IP67
None
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966716 OBO Bettermann 2001802 Junction box (L x W x H) 50 x 110 x 110 mm Grey IP67 1 pc(s)
Description
B9/T...: consists of two different halogen-free plastic components, 8 threaded inserts (PG 16) With puncture membrane (for cable diameter up to 15 mm) in the floor area. When using the cable glands (additional strain) is a remove of the membrane is not required (time). Protection class IP67 degree of protection with puncture membrane and cable gland without removing the puncture membrane. Nominal voltage 400 V nominal diameter 4 ÷ 6 mm². The cover is screwed with 4 pre-installed, undetachable cover quick fixing (180°). The mounting holes are provided with a soft plastic component splashing out for screws diameter 5 mm (distance 75 mm). Internal dimensions 98x98x40
