OBO Bettermann 2001845 Junction box (L x W x H) 50 x 110 x 110 mm Grey IP67 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 26.88
-50 %
€ 13.44
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Max. Conductor cross-section: 6 mm²
- Mounting type: wall mounted
- Number of Entries: 7
- The type of entry: cable gland
- Halogen-free: yes
- With cover: yes
- Sealable: no
- Rated insulation voltage 400 V
- Operating temperature: -30..90 °C
- Product type
Junction box
- Factory colour
Grey
IP67
- Dim
(L x W x H) 50 x 110 x 110 mm
- Content
1 pc(s)
- Material
Plastic
- Width
110 mm
- Height
110 mm
- Length
50 mm
- Mounting type
Surface-mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959958 OBO Bettermann 2001845 Junction box (L x W x H) 50 x 110 x 110 mm Grey IP67 1 pc(s)
Description

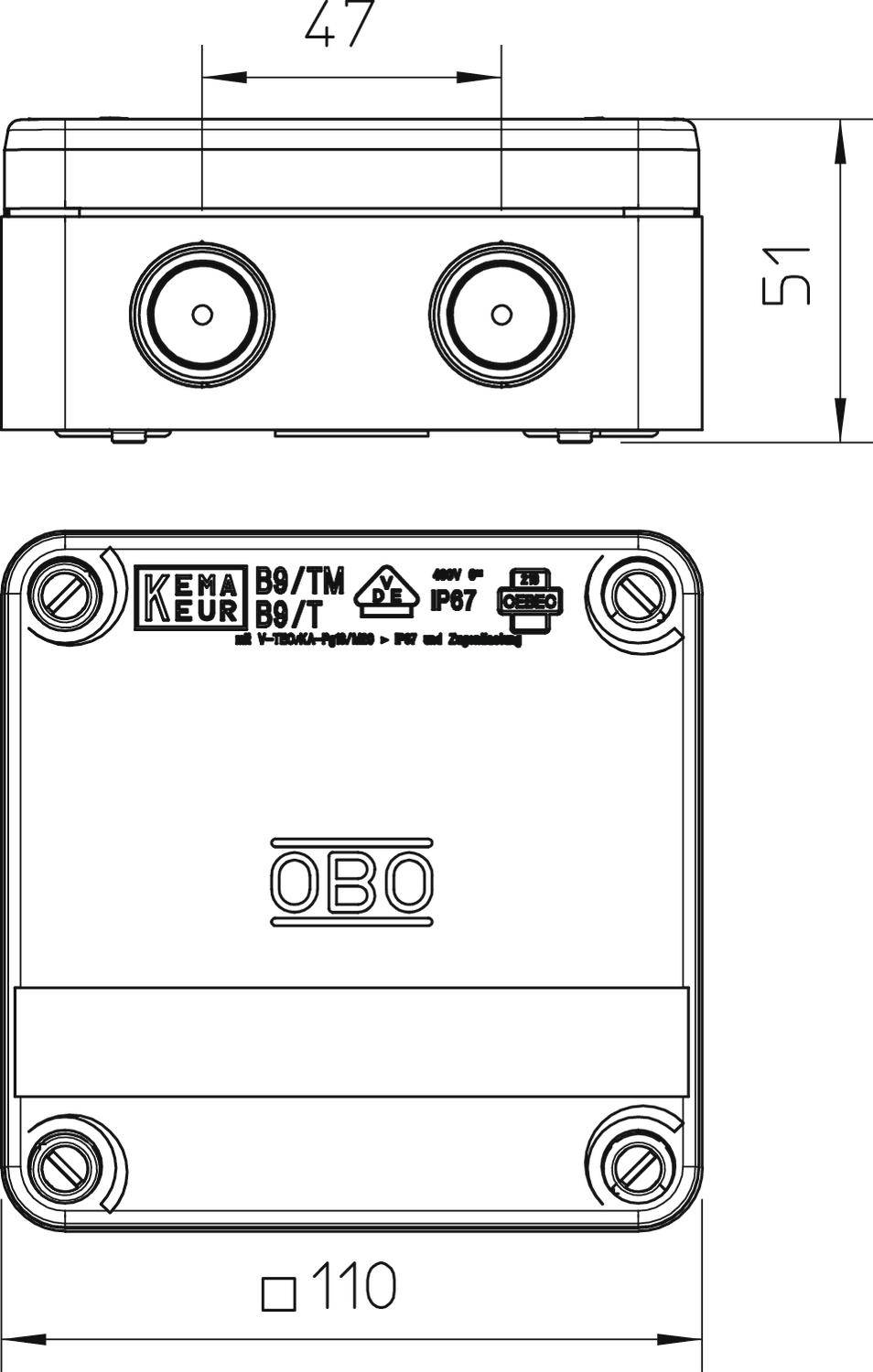

The Moist room cable junction box consists of two different halogen-free plastic components, 2 Introduction In addition in the ground with puncture membrane (for cable diameter up to 15 mm) with puncture membrane (for cable diameter up to 15 mm). When using the cable glands (additional strain) is a remove of the membrane is not required (time). Protection class IP67 With puncture membrane and cable gland. Nominal voltage 400 V nominal diameter 4 ÷ 6 mm². The cover is with, lead-sealable. The mounting holes are provided with a soft plastic component splashing out for screws diameter 5 mm (distance 75 mm). 2 mounting screws caps and 1 mounting screw. Internal dimensions: 98 x 98 x 40
