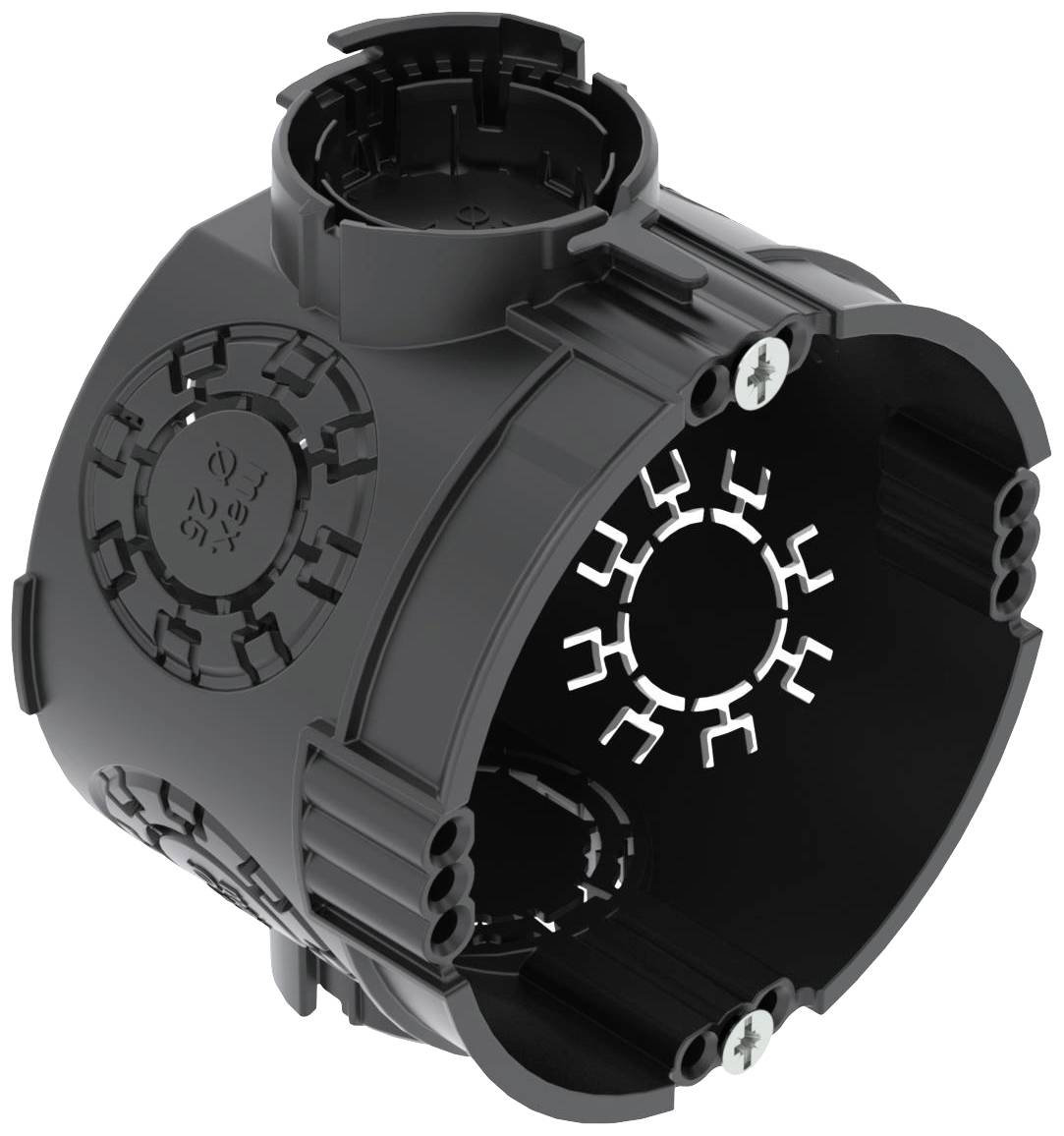

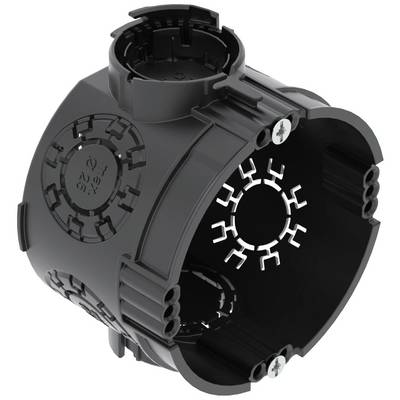

OBO Bettermann 2003701 Dry lining box (Ø x D) 60 mm x 46 mm 25 pc(s)
EAN:
Part number:
Item no:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
5% = € 0.55
€ 10.37
5
7% = € 0.76
€ 10.16
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 25 pc(s))
Total (€ 0.44 / piece)
€ 10.92
plus VAT.
Only 7 Set(s) available
Highlights & Details
UP DEVICE SOCKET UG 46-GS
- FLUSH-MOUNTED device socket 46, with device screws
Technical specifications
- Number of introductions: 7
- With device screws
- Product type
Dry lining box
- Mounting type
Flush-mount
- Content
25 pc(s)
- Factory colour
Black

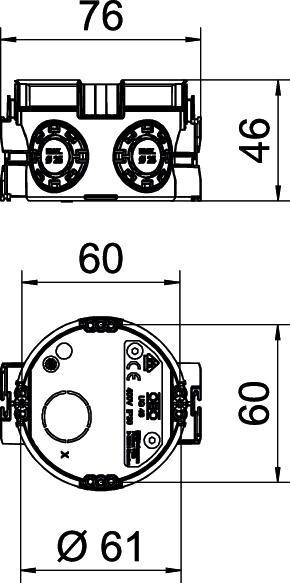

- Dim
(Ø x H) 60 mm x 46 mm
- Length
60 mm
- Width
60 mm
- Height
46 mm
- Depth
46 mm
- (Ø)
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525530 OBO Bettermann 2003701 Dry lining box (Ø x D) 60 mm x 46 mm 25 pc(s)
Description
Flush-mounted device socket for use in masonry with a minimum installation depth of 46 mm.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
1 insertion up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
1 insertion up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
