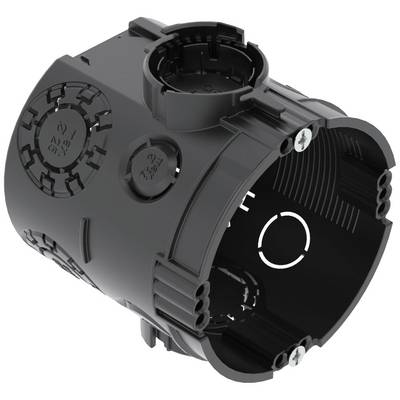

OBO Bettermann 2003703 Device lining box (Ø x D) 60 mm x 66 mm 25 pc(s)
EAN:
Part number:
Item no:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 25 pc(s))
Total (€ 0.60 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
UP device connection socket UG 66-GS
- FLUSH-MOUNTED device connection box, with device screws
Technical specifications
- Number of introductions: 11
- With device screws
- Product type
Device lining box
- Mounting type
Flush-mount
- Content
25 pc(s)
- Factory colour
Black

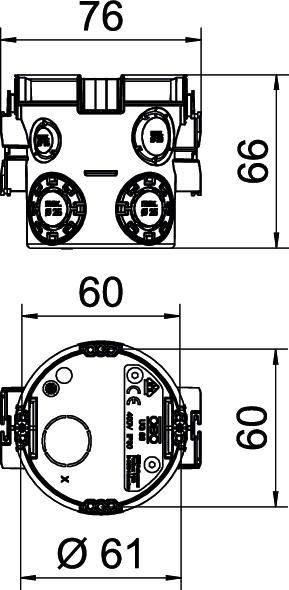

- Dim
(Ø x H) 60 mm x 66 mm
- Width
60 mm
- Height
66 mm
- Depth
66 mm
- (Ø)
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525532 OBO Bettermann 2003703 Device lining box (Ø x D) 60 mm x 66 mm 25 pc(s)
Description
Flush-mounted device socket for use in masonry with a minimum installation depth of 66 mm.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm
2 inserts up to Ø 14 mm
1 insertion up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm
2 inserts up to Ø 14 mm
1 insertion up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
