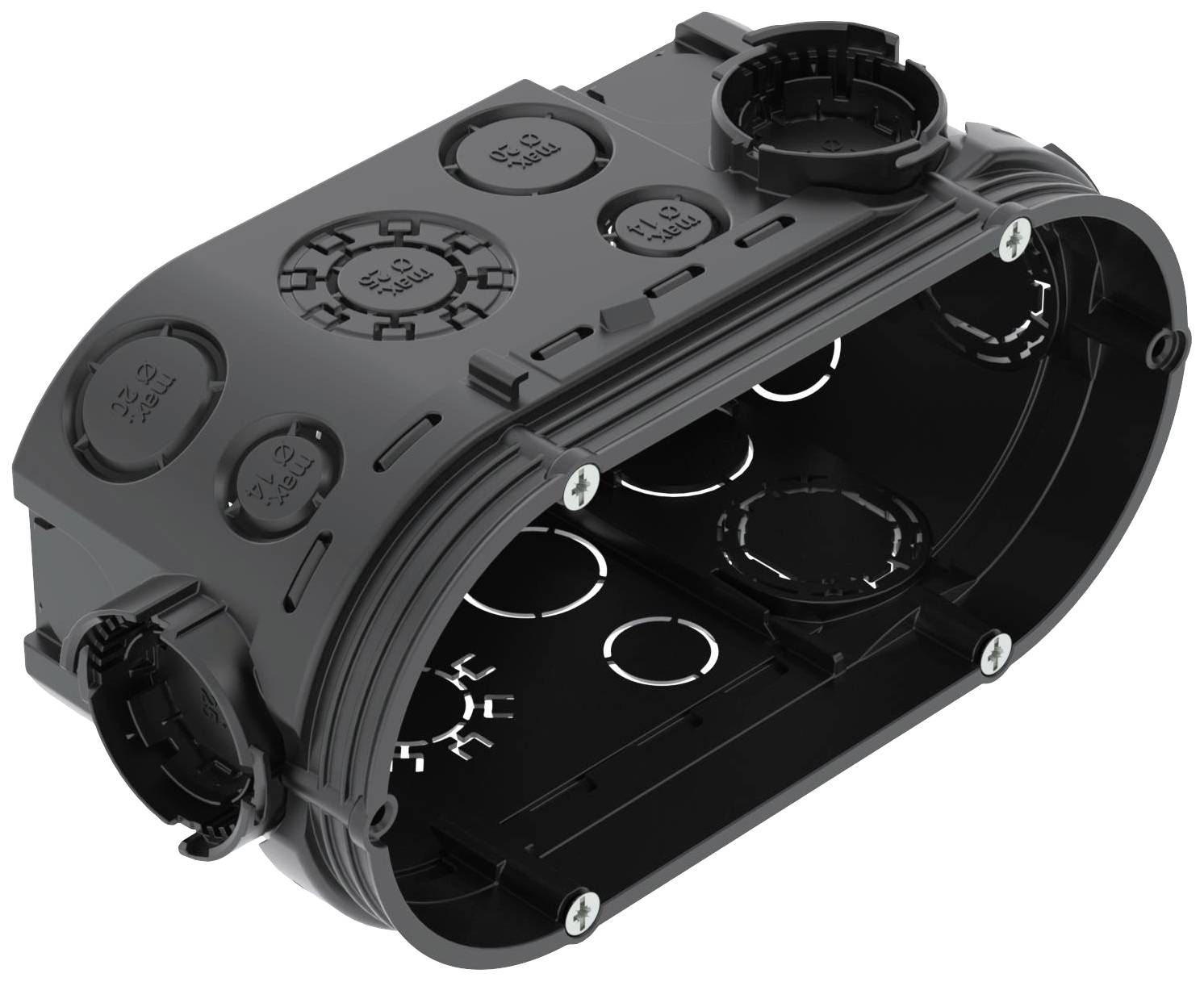

OBO Bettermann 2003720 Device lining box (Ø x D) 60 mm x 66 mm 10 pc(s)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 5.04 / piece)
€ 50.41
plus VAT.
Only 1 Set(s) available
Highlights & Details
UP device connection socket UG 66-DV, double design
- FLUSH-MOUNTED device connection box 66, double design
Technical specifications
- Number of introductions: 22
- With device screws
- Product type
Device lining box
- Features
Two-gang
- Mounting type
Flush-mount
- Content
10 pc(s)
- Factory colour
Black

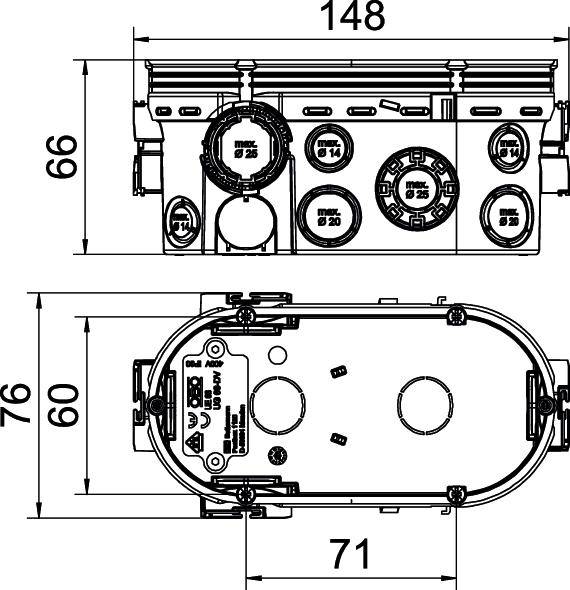

- Dim
(Ø x D) 60 mm x 66 mm
- Width
148 mm
- Depth
66 mm
- (Ø)
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525540 OBO Bettermann 2003720 Device lining box (Ø x D) 60 mm x 66 mm 10 pc(s)
Description
Double flush-mounted device socket for use in masonry with an installation depth of at least 66 mm.
With 4 connectable connection sockets with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
8 inserts up to Ø 20 mm
6 inserts up to Ø 14 mm
2 inserts up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
With 4 connectable connection sockets with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
8 inserts up to Ø 20 mm
6 inserts up to Ø 14 mm
2 inserts up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
