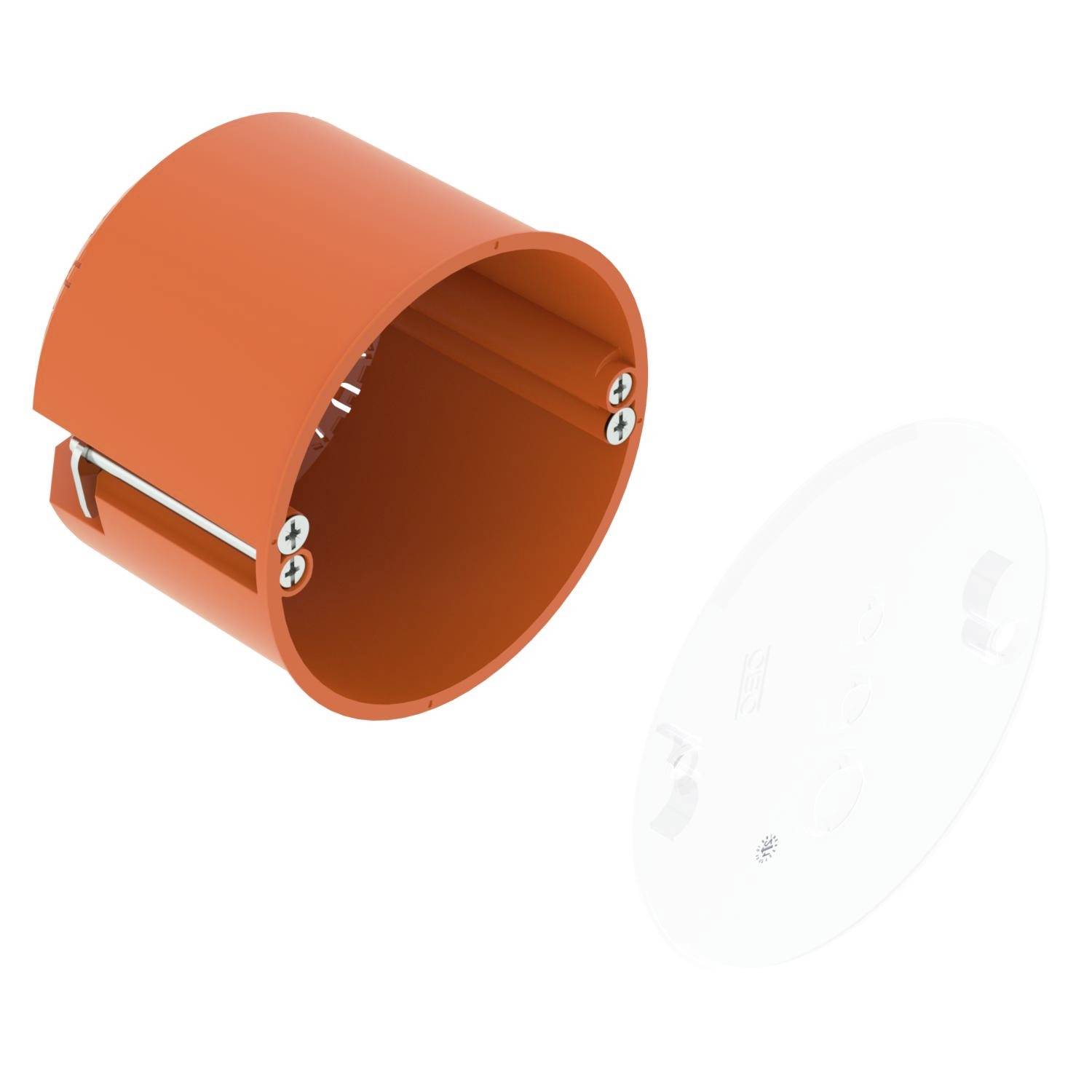

OBO Bettermann 2003820 Cavity wall lining box (Ø x D) 68 mm x 61 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
HW DEVICE SOCKET HG 61-AD-D.
- HW cavity wall device socket 61, CEE/PERILEX, with cover
Technical specifications
- Number of introductions: 9
- With cover
- Product type
Cavity wall lining box
- Mounting type
Cavity wall
- Content
10 pc(s)
- Factory colour
Orange
- Dim
(Ø x D) 68 mm x 61 mm
- Depth
61 mm
- (Ø)
68 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525565 OBO Bettermann 2003820 Cavity wall lining box (Ø x D) 68 mm x 61 mm 10 pc(s)
Description
CEE/PERILEX cavity wall device box with cover, for use in hollow walls with a minimum installation depth of 61 mm and a panel thickness of 5 - 40 mm.
2 Screw dome
Device screws, clamp brackets
3 combi pipe entries Ø 20 and 25 mm
3 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
1 Introduction for NYM cables 3 x 1.5 mm²
Tested according to DIN EN 60670-1, DIN… EN 60670-22 and DIN 49073-1.
