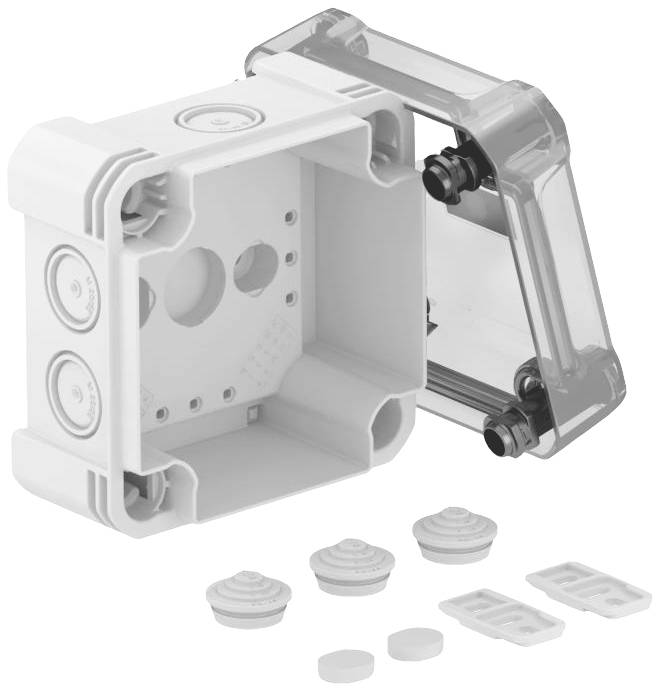

OBO Bettermann 2005058 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 4 mm²
- Assembly = without
- The form = square
- Mounting type = wall/ceiling mounting
- Introduction of rear = No

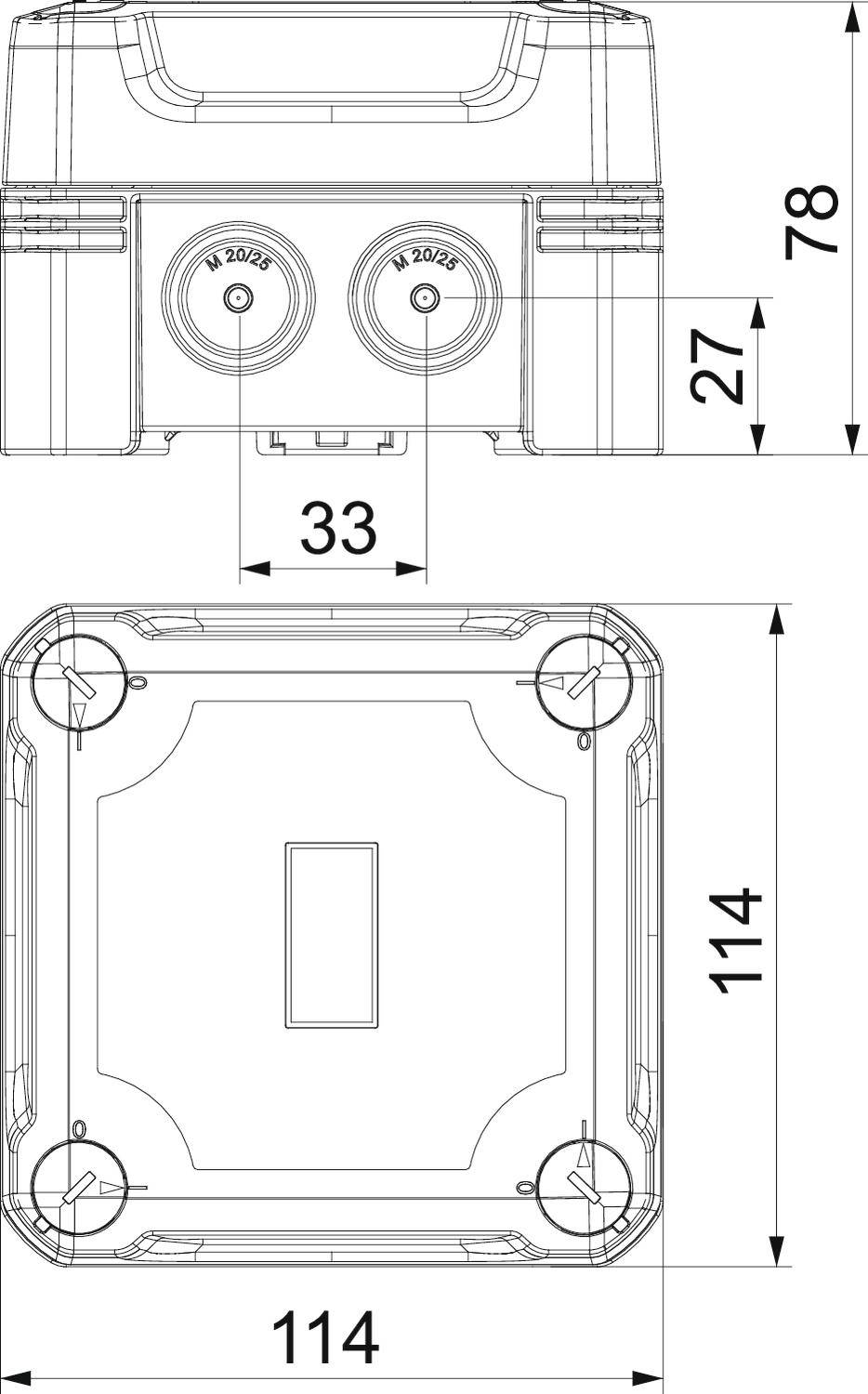

- Length = 114 mm
- Width = 114 mm
- Depth = 78 mm
- Can be stacked end-to-end = Yes
- The number of entries = 7
- The type of casing feed = Knockout
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- IP67 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=750 V
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-25: 0.65°C
- Explosion tested design = No
- Product type
Junction box
- Features
Weather-proof
Halogen-free
Sealable
- Content
1 pc(s)
- Dim
(L x W) 114 mm x 114 mm
- Length
114 mm
- Width
114 mm
- Depth
78 mm
IP67
- Mounting
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957687 OBO Bettermann 2005058 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
Description
In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016).
