OBO Bettermann 2005092 Junction box (L x W) 151 mm x 167 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 6 mm²
- Assembly = mounting rail
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = No
- Length = 151 mm.
- Width = 167 mm
- Depth = 87 mm
- Can be stacked end-to-end = Yes
- The number of entries = 8
- The type of casing feed = Knockout
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- IP67 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=750 V
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-25: 0.65°C
- Explosion tested design = No
- Product type
Junction box
- Features
Weather-proof
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 151 mm x 167 mm
- Length
151 mm
- Width
167 mm
- Depth
87 mm
IP67
- Mounting
Mounting rail
Wall-/ceiling mounting
Grey
117
TRUE
86 mm
Rectangular
Untreated
750 V
151 m
-5-60 °C
Plastic
FALSE
IP67
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961747 OBO Bettermann 2005092 Junction box (L x W) 151 mm x 167 mm 1 pc(s)
Description

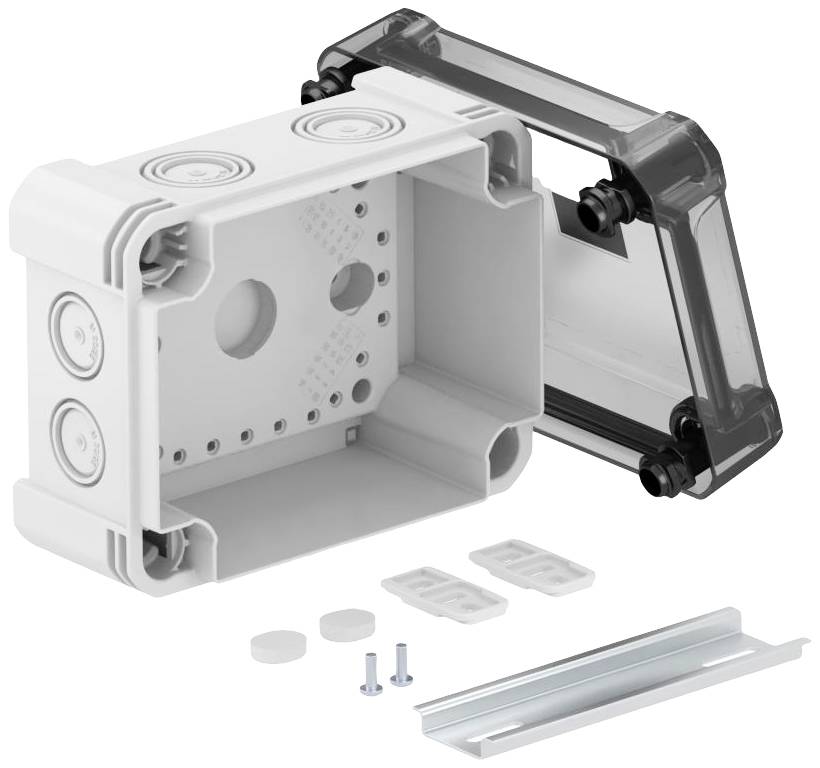

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). With transparent lid and top hat profile rail type 2069 with mounting set.
