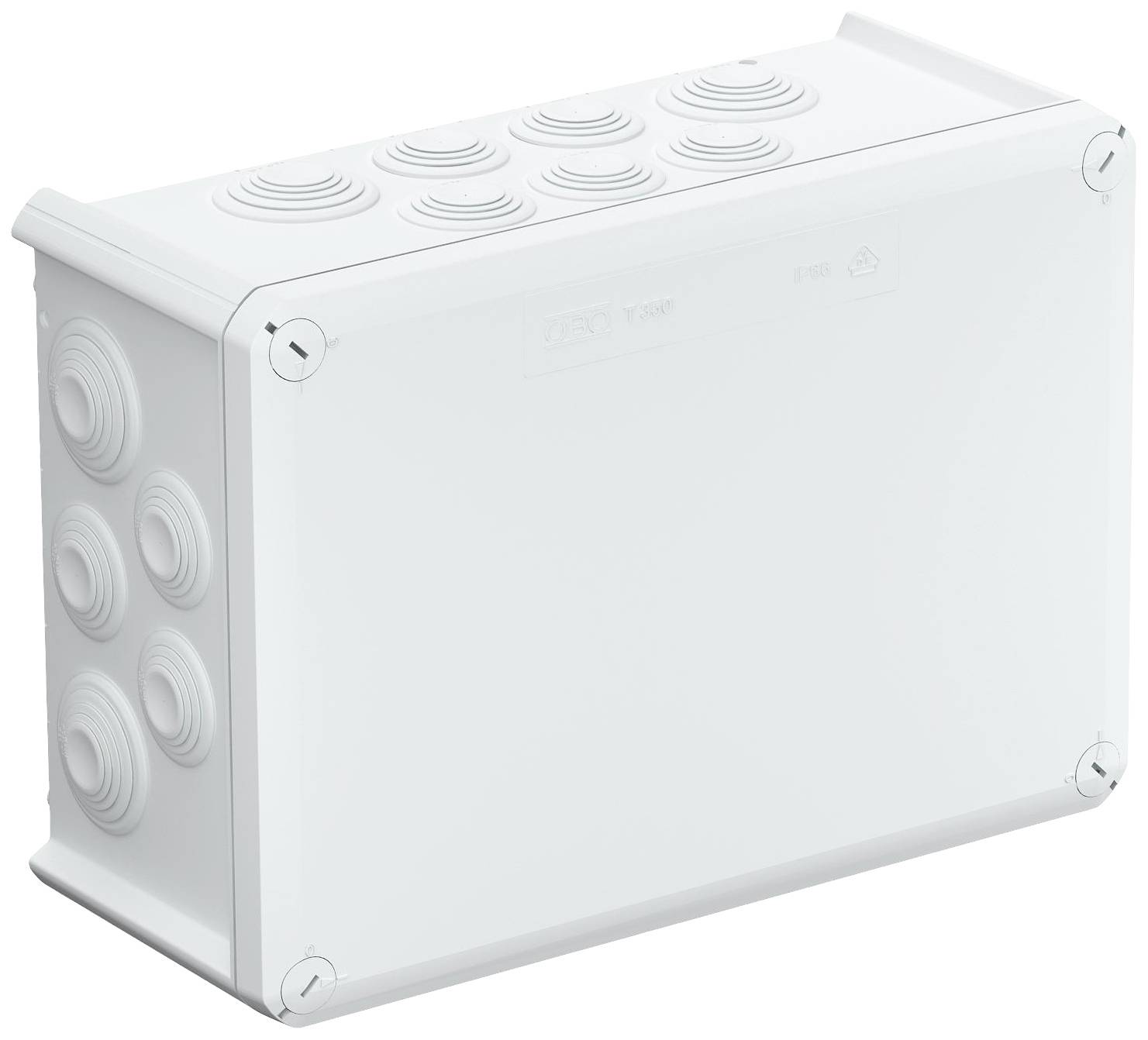

OBO Bettermann 2007125 Junction box Halogen-free, Sealable (L x W) 285 mm x 201 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: Yes
- Number of introductions: 24
- Type of housing bushing: Can be cut off step membrane
- Rated insulation voltage UI: 500 V.
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -5..60 °C.
- Shape: Rectangular
- Max. Conductor cross-section 35 mm²
- Surface: Untreated
- IP66 protection rating
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey

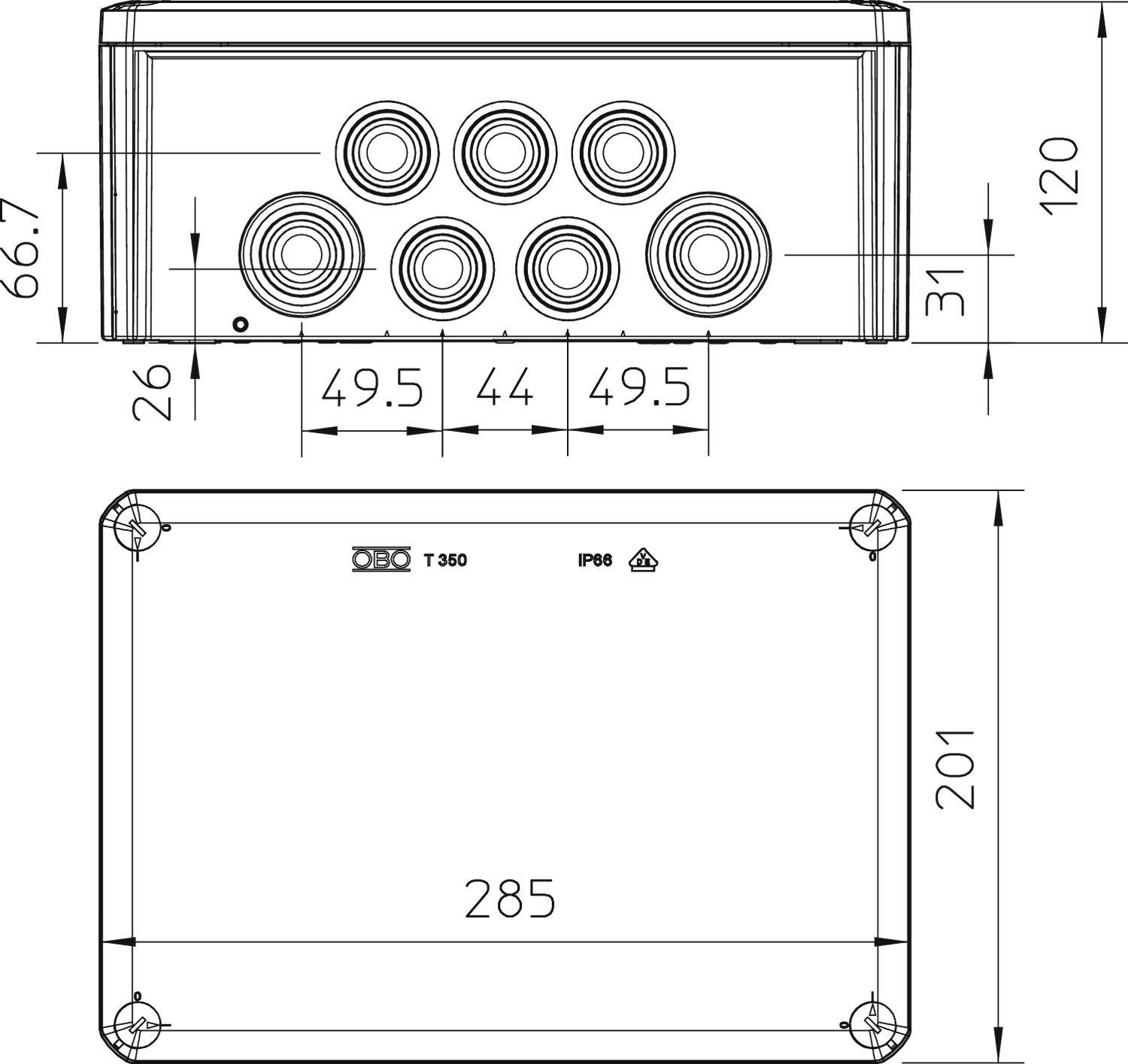

- Dim
(L x W) 285 mm x 201 mm
- Length
285 mm
- Width
201 mm
- Depth
120 mm
Wall-/ceiling mounting
Grey
201
TRUE
120 mm
Rectangular
Untreated
500 V
285 m
-5-60 °C
Plastic
FALSE
IP66
None
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294253 OBO Bettermann 2007125 Junction box Halogen-free, Sealable (L x W) 285 mm x 201 mm 1 pc(s)
Description
The cable junction boxes are made of thermoplastic polypropylene with ethylene vinyl acetate EVA plug-in seals. Lines can be installed directly through the 16 x M32 8 x M40 seals, or the seals can be cut into place with a knife to create a pipe or pipe inlet. Alternatively, cable glands can be inserted in place of the seals through the openings and countered from the inside with a counter nut. The cable junction boxes can be mounted on mounting plates with 3.5x9.5 sheet metal screws in openings on the floor. Clear inner dimensions: 267x182x110 cover with labeling field and sealable.
