OBO Bettermann 2007287 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 25 mm²
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 240 mm
- Width = 190 mm
- Depth = 95 mm
- Can be stacked end-to-end = Yes
- The type of casing feed = without
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- Use temperature =-5.:00-15 °C
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim

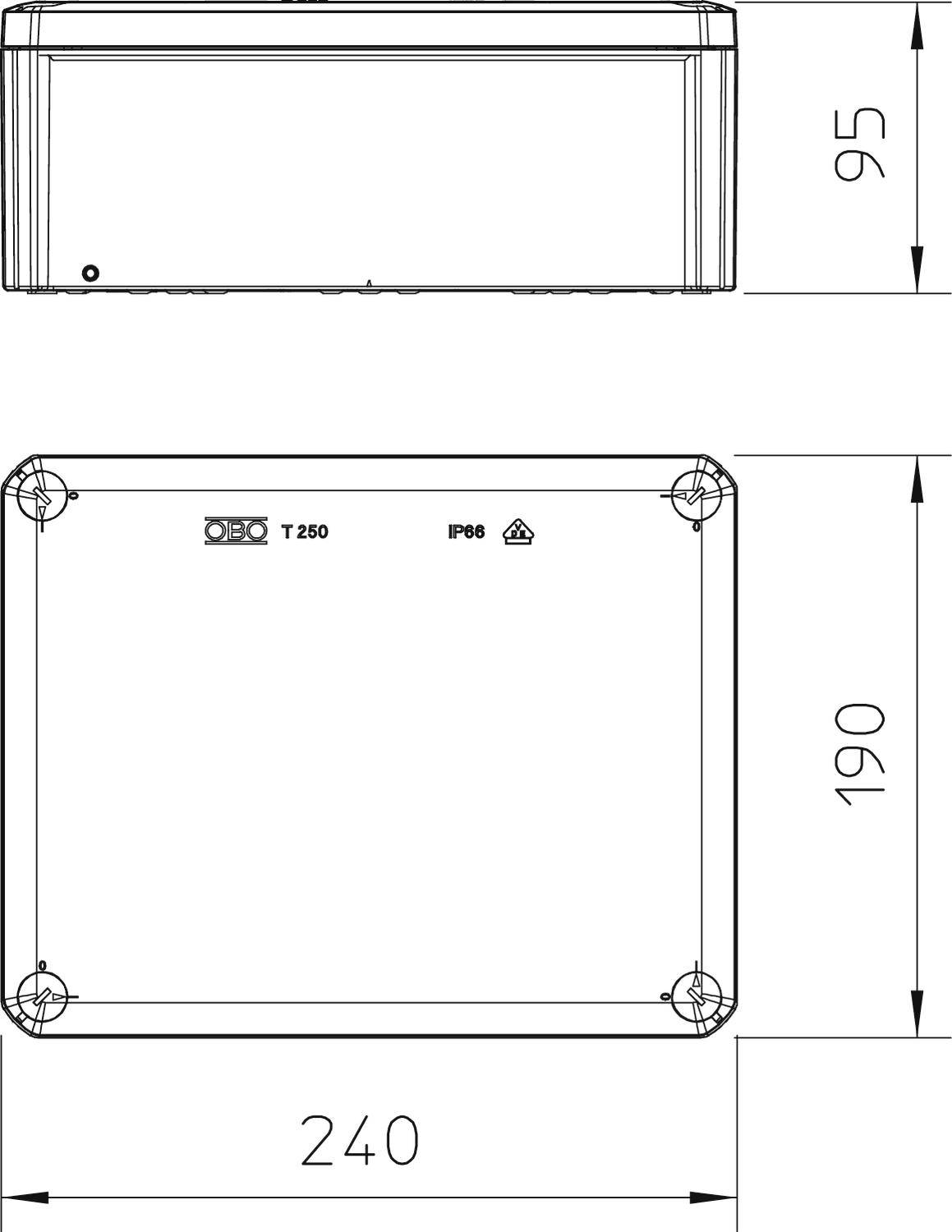

(L x W) 240 mm x 190 mm
- Length
240 mm
- Width
190 mm
- Depth
95 mm
IP66
- Mounting
None
Wall-/ceiling mounting
Grey
190
TRUE
95 mm
Rectangular
Untreated
500 V
240 m
-5-60 °C
Plastic
FALSE
IP66
None
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962104 OBO Bettermann 2007287 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
Description
All cable junction box T-series are UV resistant. They are made of polypropylene (a thermoplastic plastic) and have closed side walls. Required openings can be introduced at any point. In these openings can plug-in seals EDK or screwed cable glands with locknuts are used, in order to lines. The cable junction box can with sheet-metal screws 3.5 x 9.5 in holes on mounting plates can be mounted. Internal dimensions: 225 x 173 x 86 mm cover with labelling field and lead-sealable.
