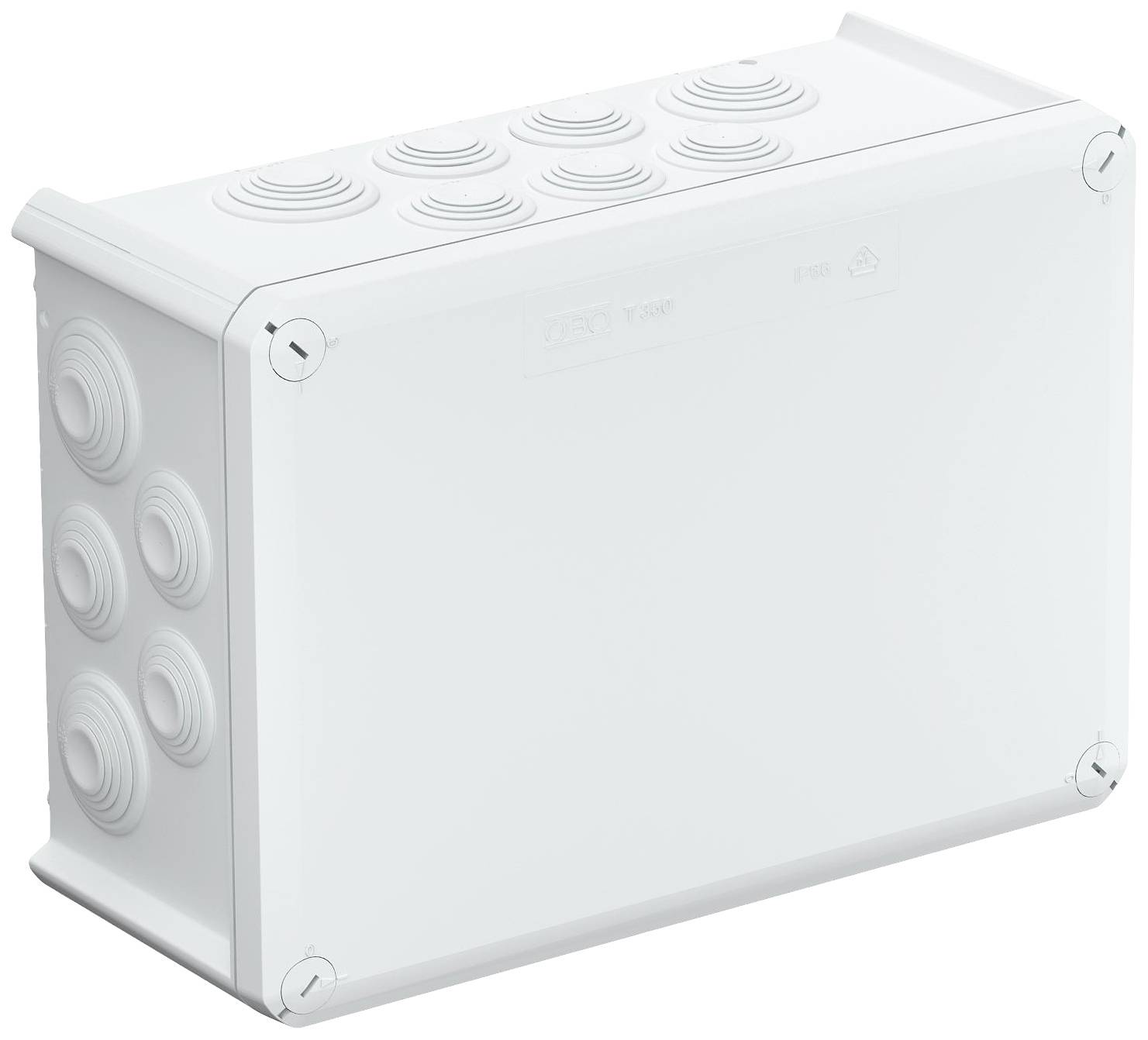

OBO Bettermann 2007371 Junction box (L x W) 285 mm x 201 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 35 mm²
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes

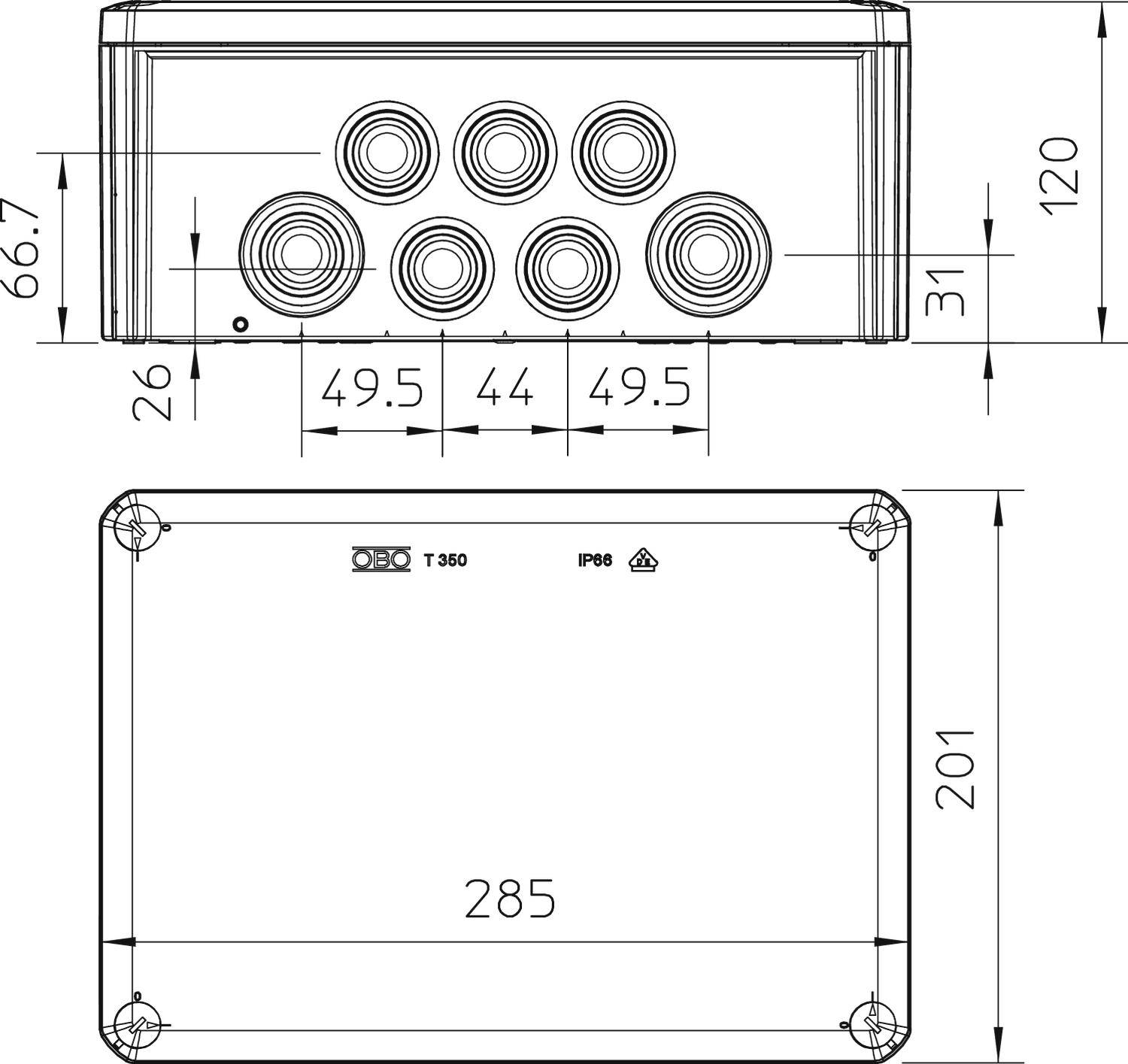

- Length = 285 mm
- Width = 201 mm
- Depth = 120 mm
- Can be stacked end-to-end = Yes
- The number of entries = 24
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- Use temperature =-5.:00-15 °C
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 285 mm x 201 mm
- Length
285 mm
- Width
201 mm
- Depth
120 mm
IP66
- Mounting
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963441 OBO Bettermann 2007371 Junction box (L x W) 285 mm x 201 mm 1 pc(s)
Description
The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 16 x M32 8 x M40 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 267 x 182 x 110 lid with labelling field and lead-sealable.
