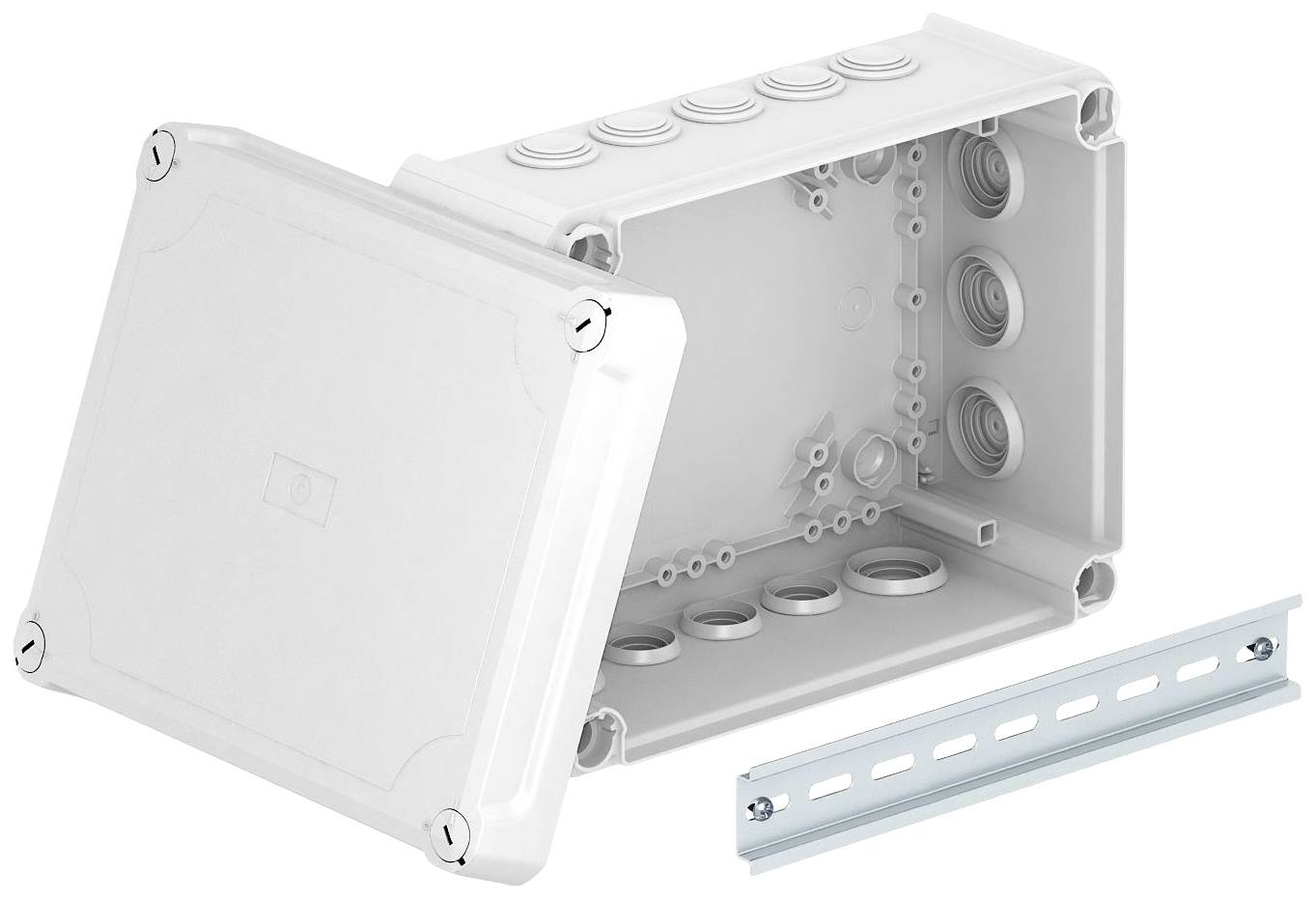

OBO Bettermann 2007716 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 240 mm
- Width = 190 mm
- Depth = 112 mm
- Can be stacked end-to-end = Yes
- The number of entries = 16
- The type of casing feed = other
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = Yes
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim

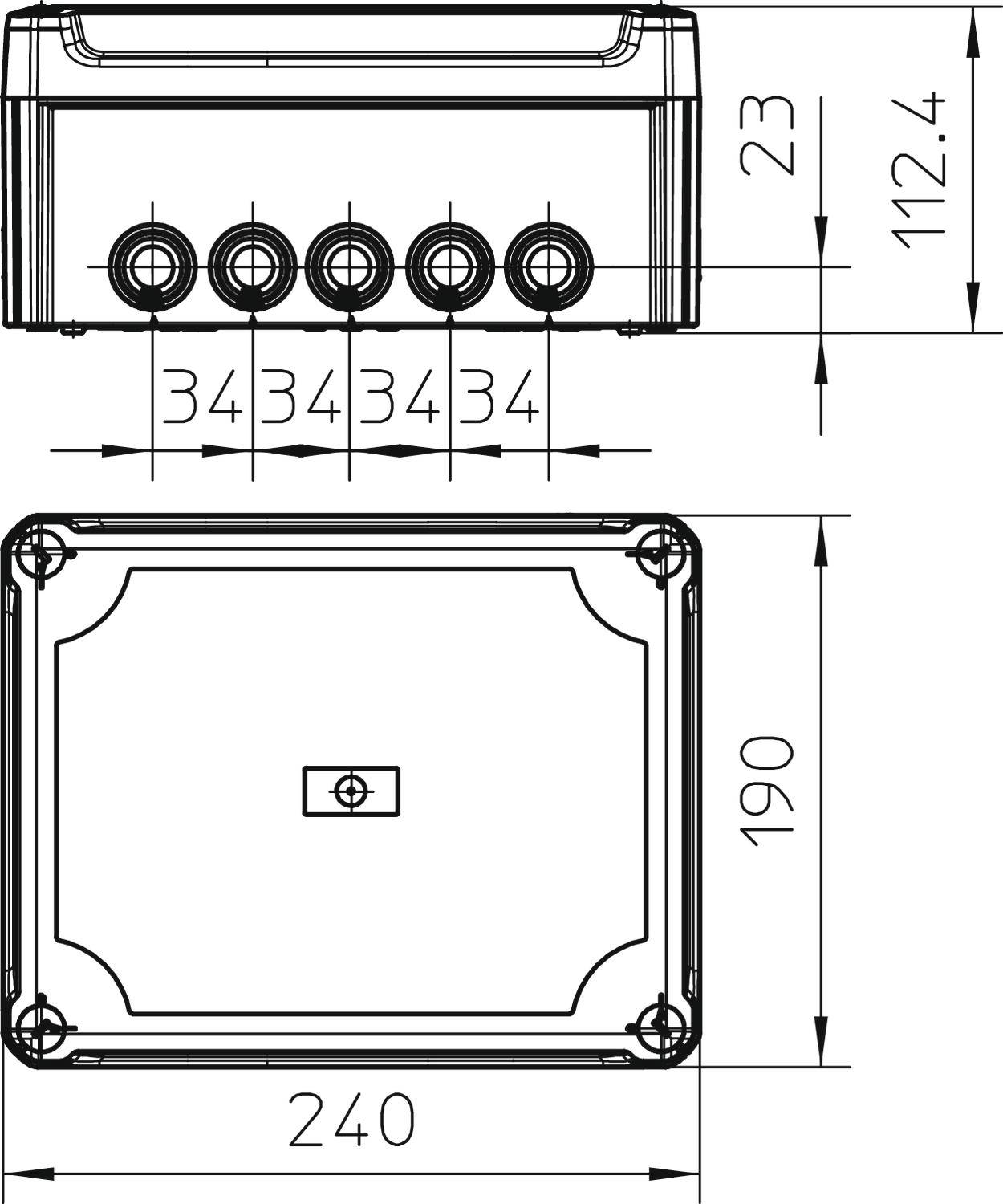

(L x W x H) 240 x 190 x 112 mm
- Length
240 mm
- Width
190 mm
- Height
112 mm
- Depth
112 mm
IP66
- Mounting
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963401 OBO Bettermann 2007716 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
Description
The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 9 xM25+7 xM 32 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 225 x 173 x 103 lid with labelling field and lead-sealable.
