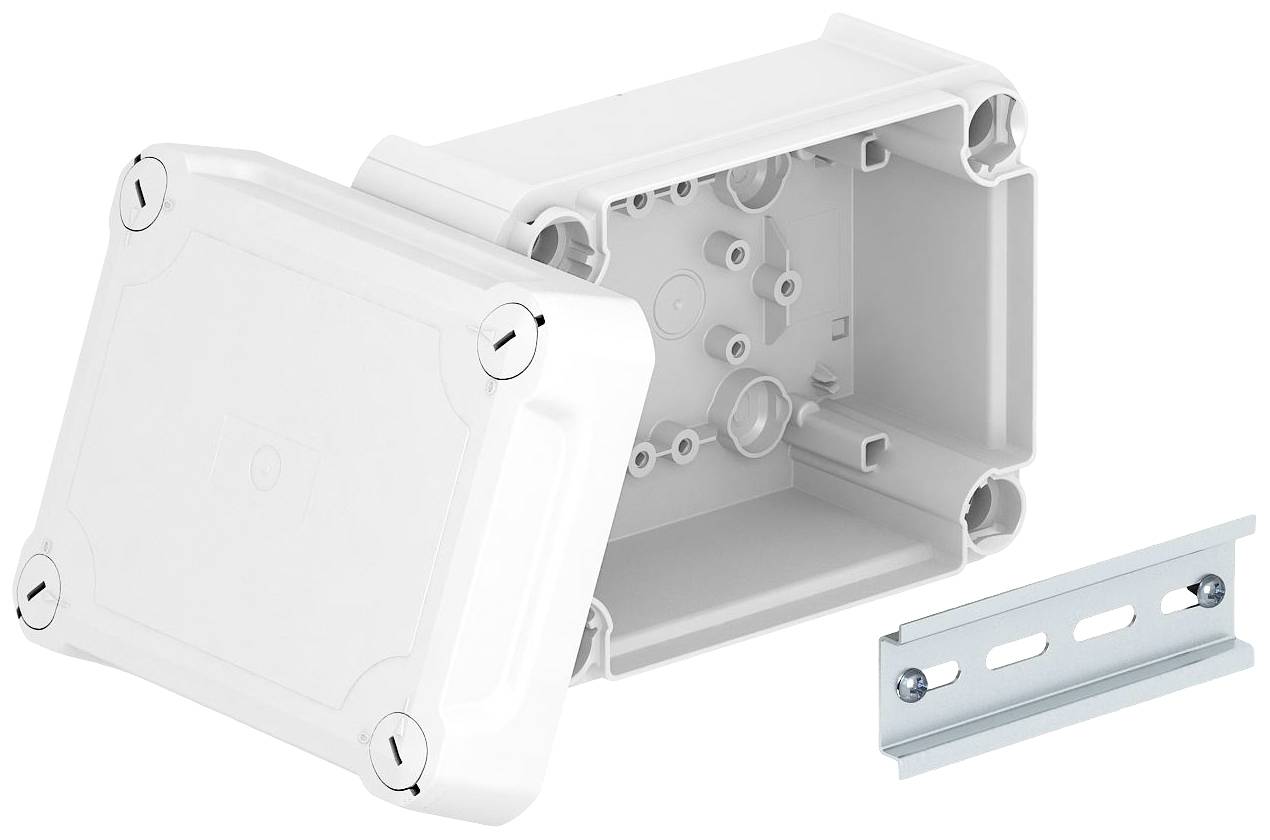

OBO Bettermann 2007732 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 151 mm.
- Width = 117 mm
- Depth = 84 mm
- Can be stacked end-to-end = Yes
- The type of casing feed = without
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-5.:00-15 °C
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

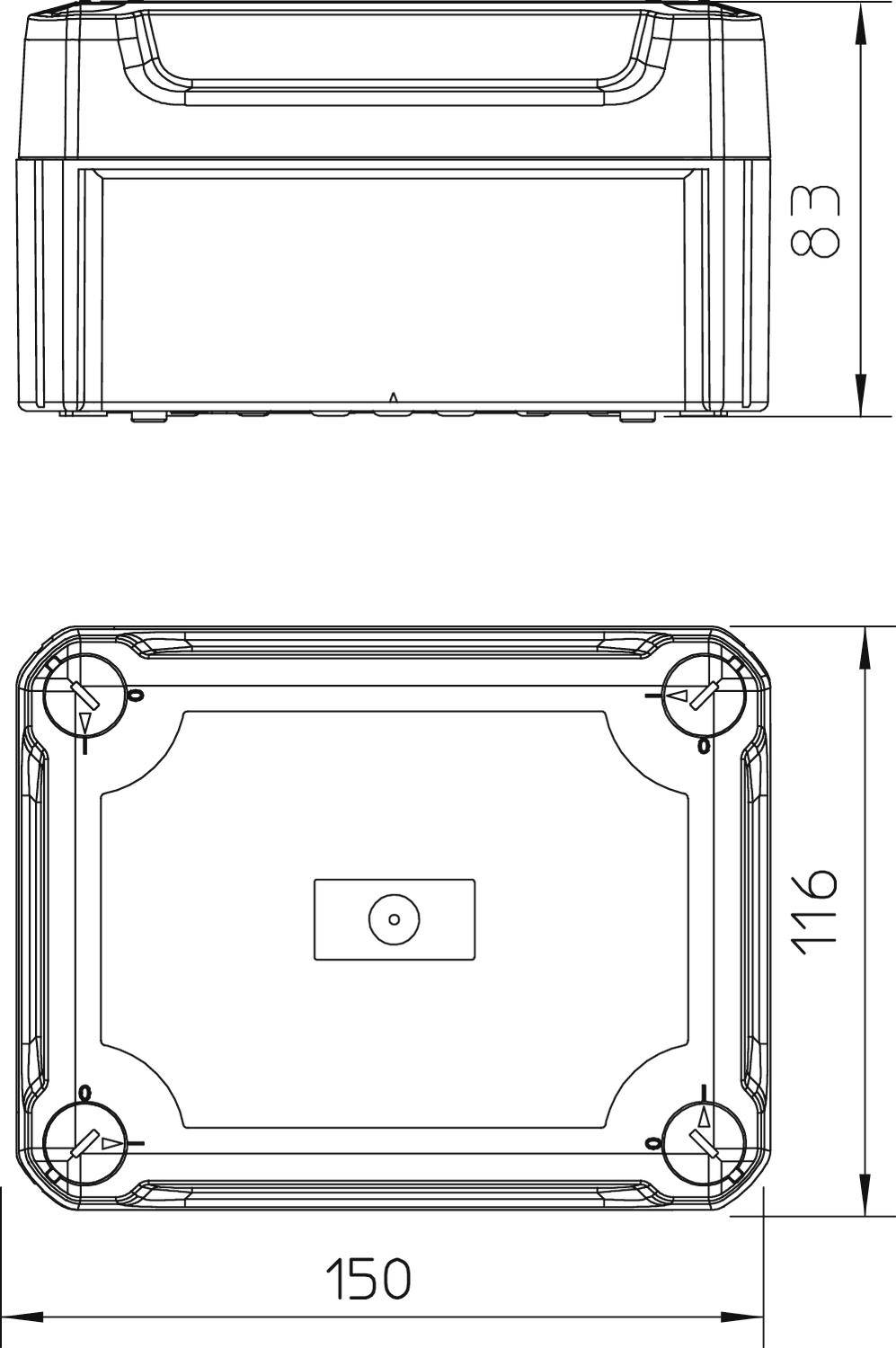

(L x W x H) 151 x 117 x 84 mm
- Length
151 mm
- Width
117 mm
- Height
84 mm
- Depth
84 mm
IP66
- Mounting
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964757 OBO Bettermann 2007732 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
Description
The cable junction box are made of thermoplastic. The box bottom parts are made of impact-resistant polypropylene, the box cover is made of extremely durable, impact-resistant polycarbonate. This is also due to the high impact strength of IK10 to -5 °C to recognize. Due to the high cover is significantly more wiring space is created. This creates the possibility for the installation and protection from OBO push buttons, terminal blocks, keeping control sensors, switches and electronic devices in the housing and installation technology. Together with the mounting plate, it is an ideal companion at sight mounting.
