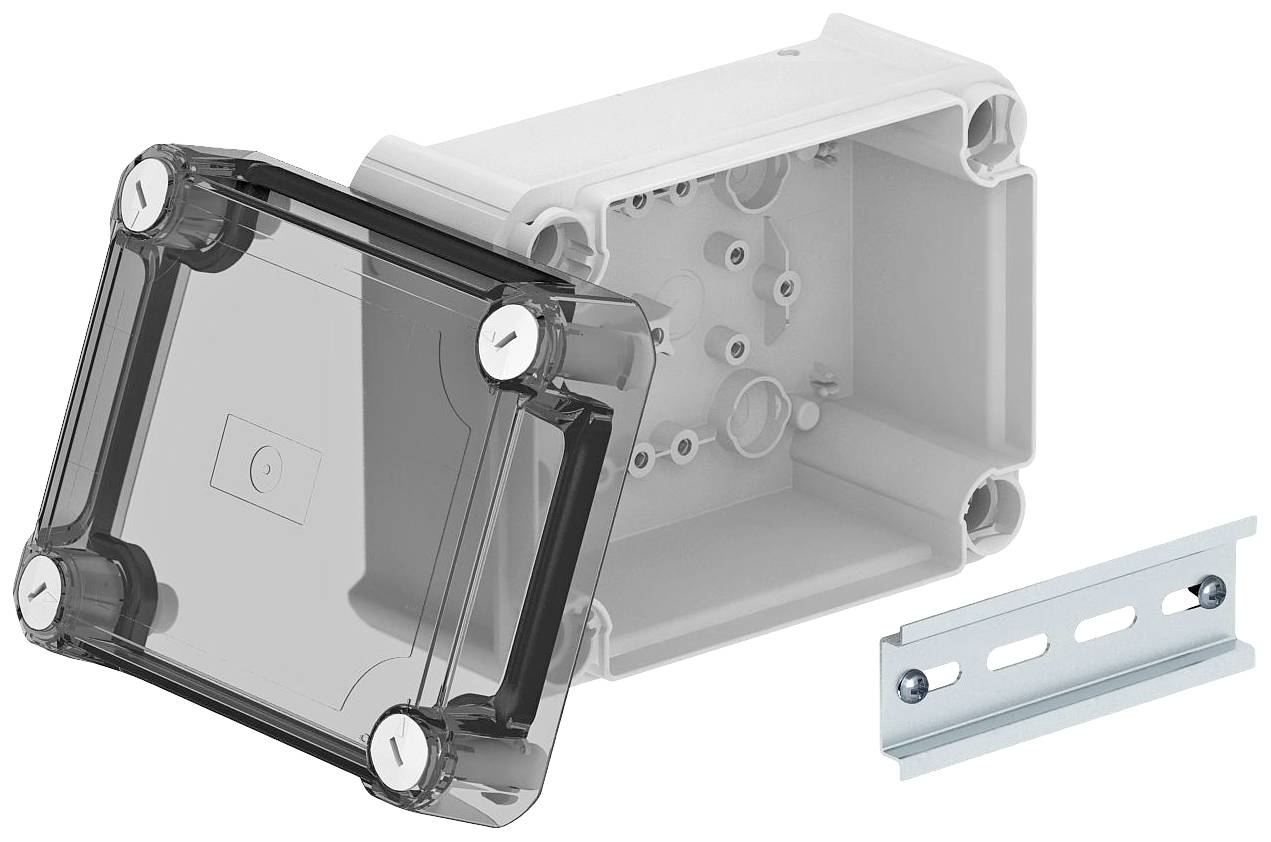

OBO Bettermann 2007772 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes

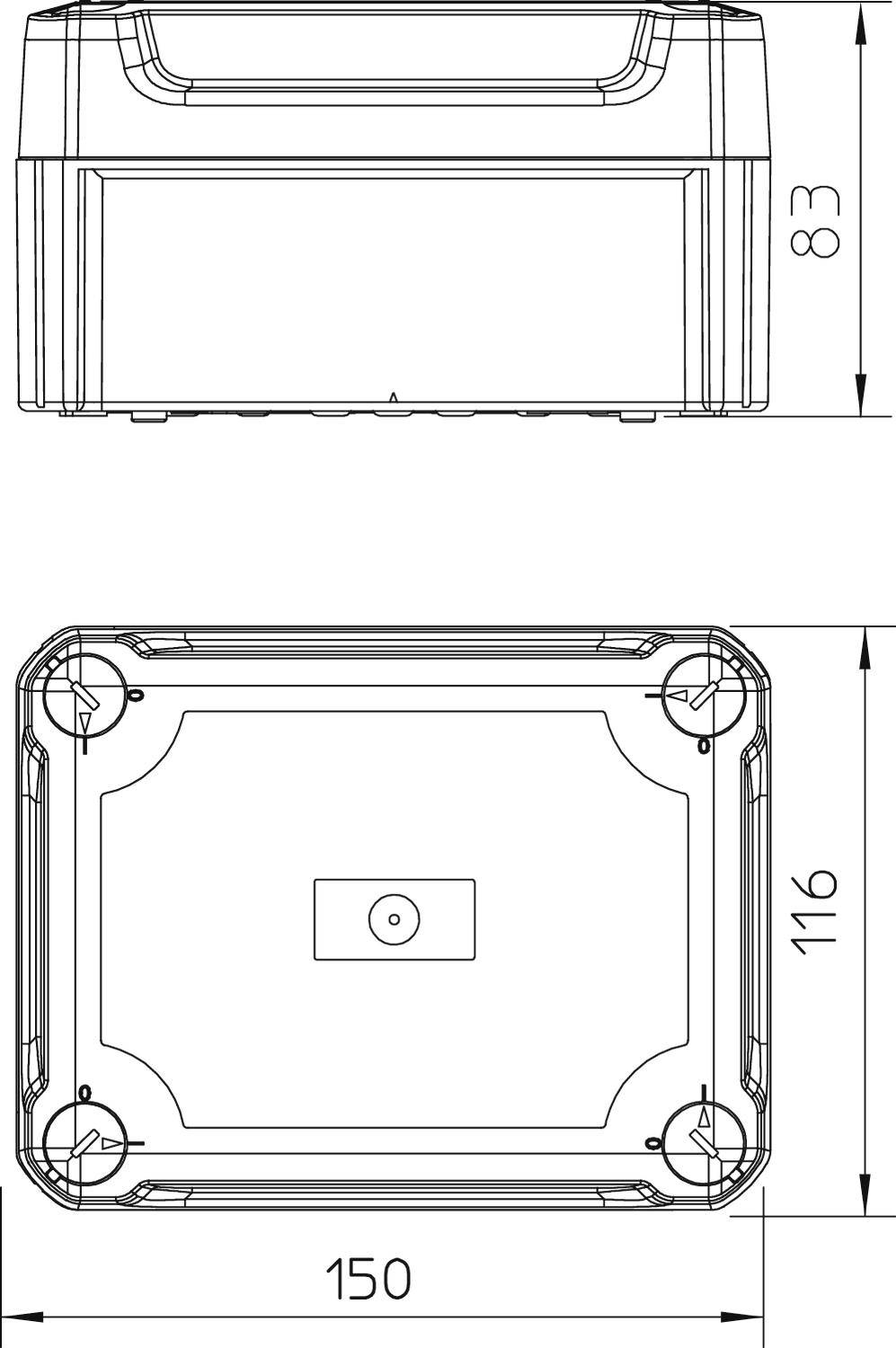

- Length = 151 mm.
- Width = 117 mm
- Depth = 84 mm
- Can be stacked end-to-end = Yes
- The type of casing feed = without
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-5.:00-15 °C
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 151 mm x 117 mm
- Length
151 mm
- Width
117 mm
- Depth
84 mm
IP66
- Mounting
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966093 OBO Bettermann 2007772 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
Description
The cable junction box made of thermoplastic consist of either polypropylene or polyethylene. These two plastics are soft, which means that they can be due to the move. Thus, leads to either a Piercing spike directly through the wall but the wall can be installed or cut with a knife to points intended to be an introduction opening for the cables.
