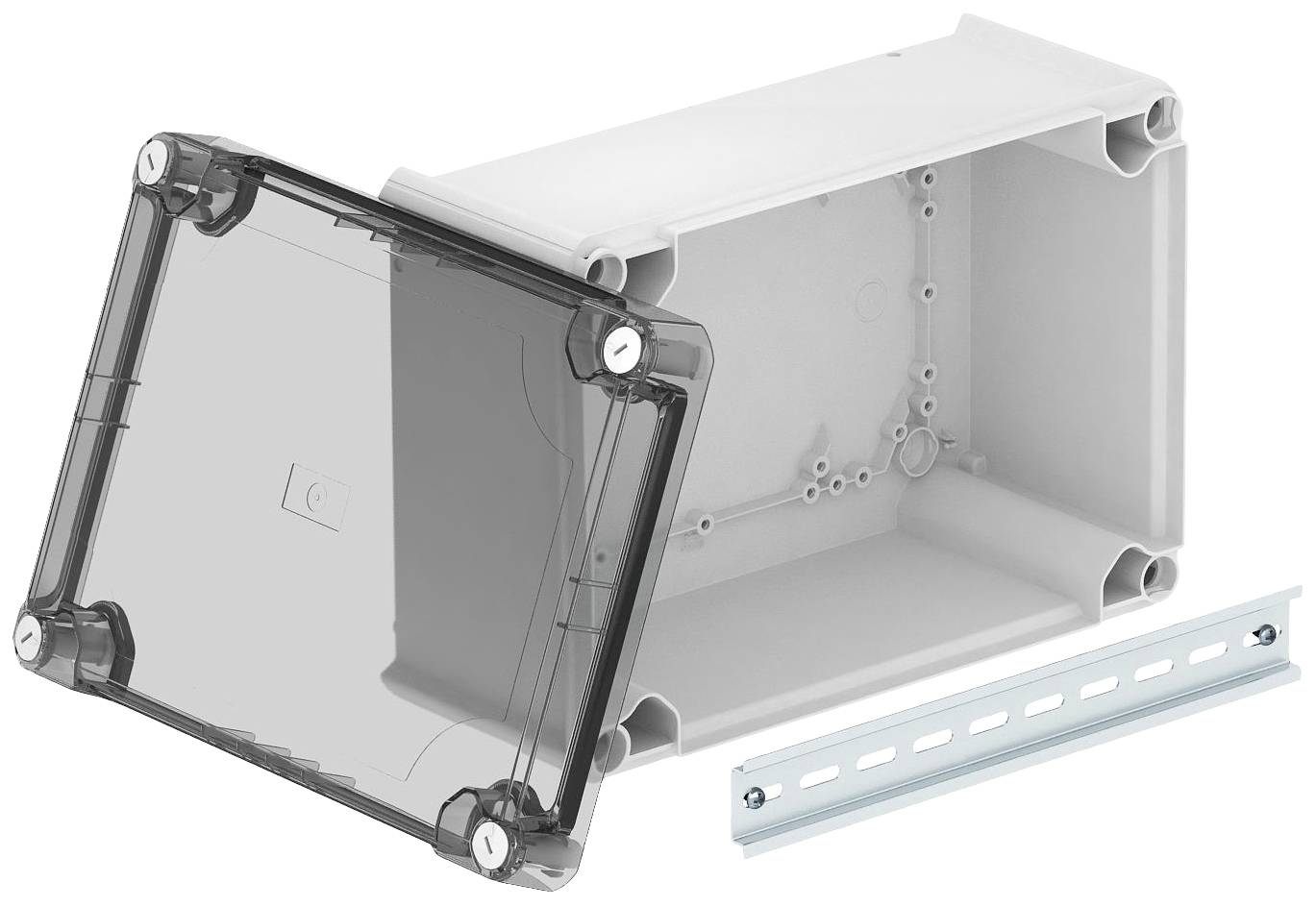

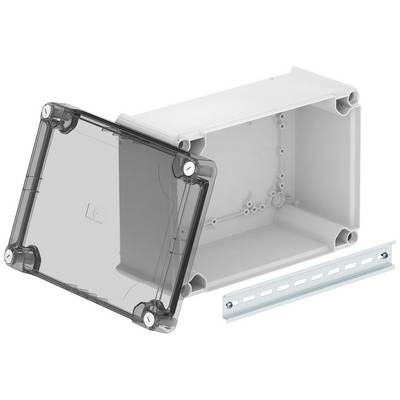

OBO Bettermann 2007778 Junction box (L x W) 285 mm x 201 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 35 mm²
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 285 mm
- Width = 201 mm
- Depth = 137 mm
- Can be stacked end-to-end = Yes
- The type of casing feed = without
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-5.:00-15 °C
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Content
1 pc(s)
- Factory colour
Grey

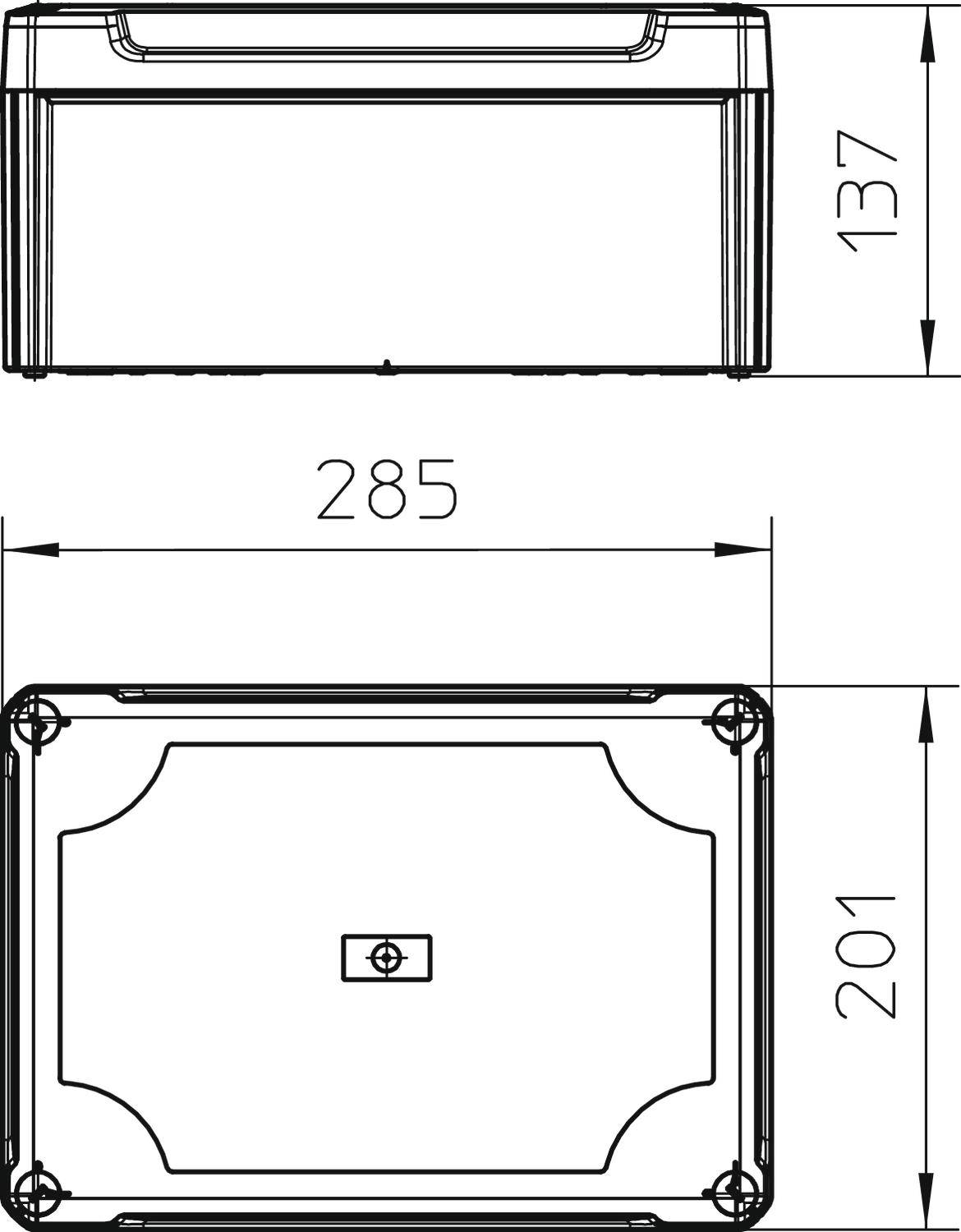

- Dim
(L x W) 285 mm x 201 mm
- Length
285 mm
- Width
201 mm
- Depth
137 mm
IP66
- Mounting
None
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962061 OBO Bettermann 2007778 Junction box (L x W) 285 mm x 201 mm 1 pc(s)
Description
The cable junction box made of thermoplastic consist of either polypropylene or polyethylene. These two plastics are soft, which means that they can be due to the move. Thus, leads to either a Piercing spike directly through the wall but the wall can be installed or cut with a knife to points intended to be an introduction opening for the cables.
