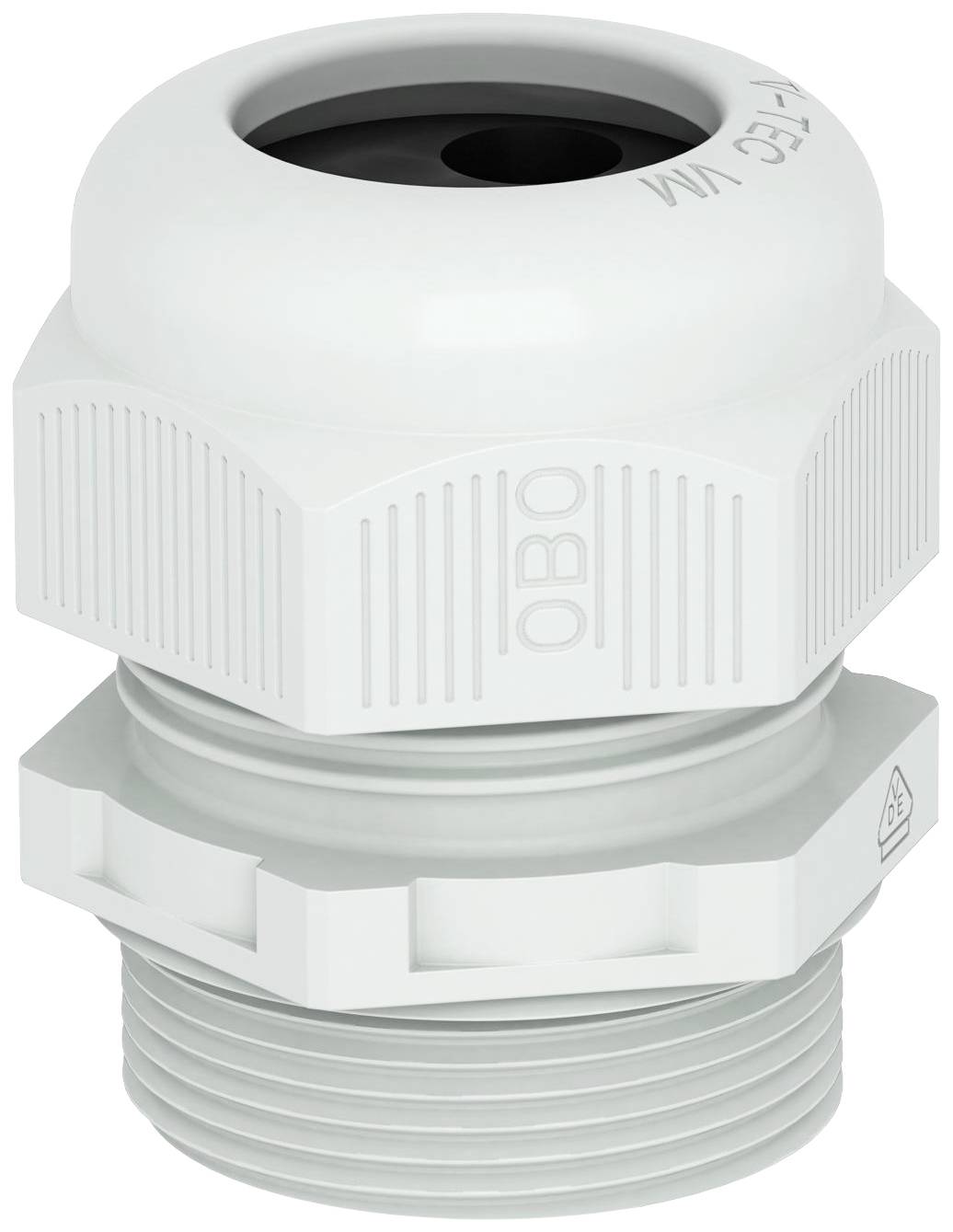

OBO Bettermann 2022120 Cable gland 1.5 mm Plastic, PA 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Type
Straight
Material
Plastic
PA
Features
with strain relief
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 25
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- External thread
M25
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
PA
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
24 mm
- Halogen-free
Yes
- Content
25 pc(s)
- Manufacturer part #
2022120
- Type
V-TEC VM25 5x4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959128 OBO Bettermann 2022120 Cable gland 1.5 mm Plastic, PA 25 pc(s)
Description
The fastest and most comfortable way with cable glands at cable branch boxes and housings for strain-relief and sealing to ensure: the tried-and-tested V-TEC VM cable glands from OBO. With the integrated lip seal and special OBO lamellae technology, the protection class IP68 is achieved. Strain-relief and sealing are tested according to DIN EN 50262. The connection threads are metric and thus can be used without sell. Once screwed, keeps the installation forever: The ideal thread adjustment with the right slope provides permanently for vibration strength. Applications: from the private residential area with cable junction box to industrial applications in the distribution cabinet. Temperature range: -20°C to +65°C
