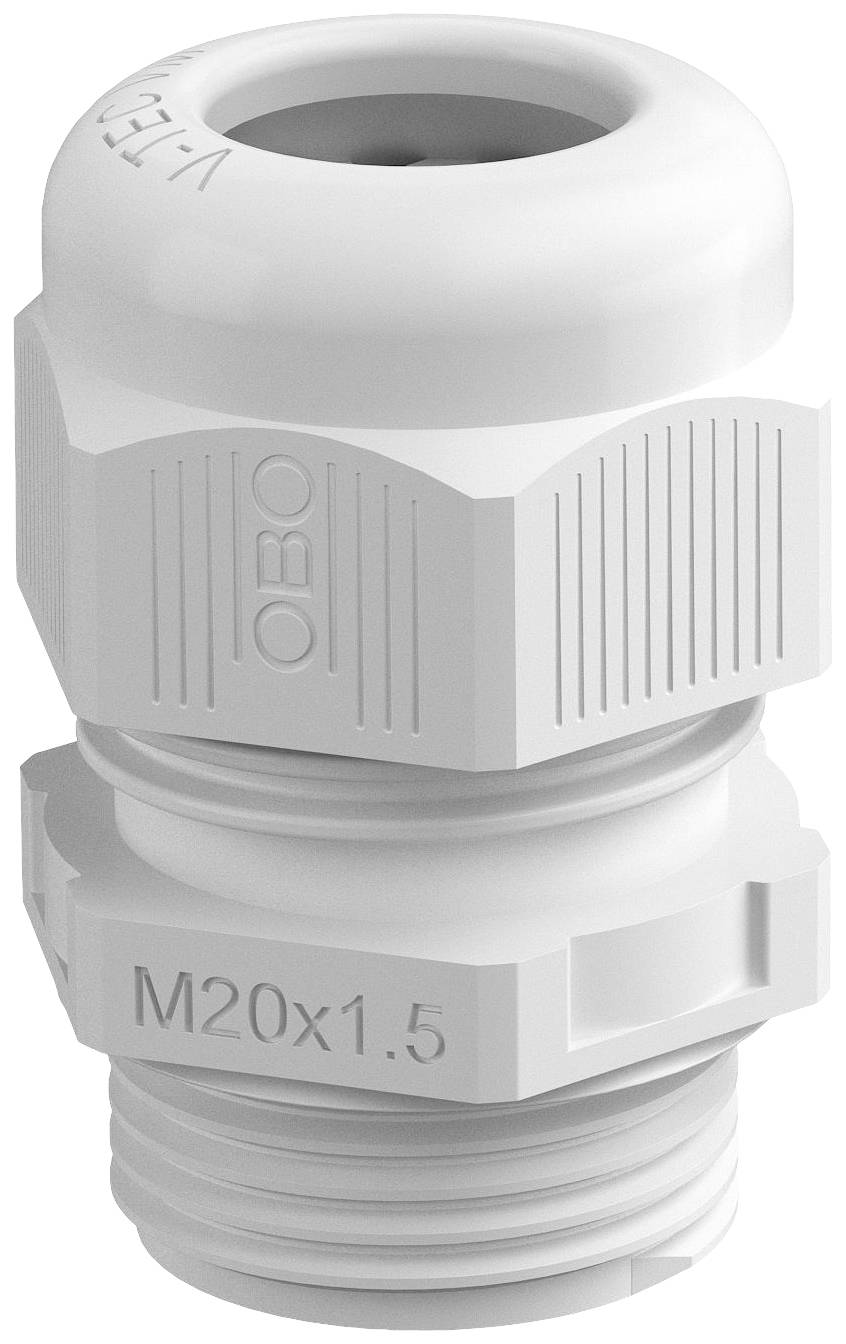

OBO Bettermann 2022902 Cable gland 1.5 mm Plastic, PA 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Type
straight
Material
Plastic
PA
Clamp Ø
6 mm
Terminal Ø (max.)
13 mm
Technical specifications
- Thread type: Metric
- Thread size metric/PG: 20
- Suitable for cable diameter 6..13 mm
- Surface: Untreated
- Glass-fiber reinforced: No.
- Shock-resistant: No.
- Bend protection: No.
- With locknut: No.
- Multiple sealing application: No.
- Flat cable screwing: No.
- With strain relief: Yes
- Type of seal: Sealing ring
- Separable screw connection: No
- Explosion-tested version: No.
- For Ex-zone gas: Without
- For Ex-Zone Dust: Without
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Grey
- Internal thread
1.5 mm
- Type
straight
- Material
Plastic
PA
- Clamp Ø
6 mm
- Terminal Ø (max.)
13 mm
- Thread length
9 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
24 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2022902
- Type
V-TEC VM20UV LGR
Grey
Straight
TRUE
FALSE
Untreated
24 mm
9 mm
TRUE
FALSE
Sealing ring
Polyamide (PA)
-20-65 °C
Metric
Plastic
1.5 mm
FALSE
FALSE
FALSE
FALSE
27 mm
FALSE
6-13 mm
IP68
None
20
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332512 OBO Bettermann 2022902 Cable gland 1.5 mm Plastic, PA 1 pc(s)
Description
The fastest and most comfortable way to ensure cable strain relief and leak tightness with cable glands at cable junction boxes and housings: The proven V-TEC VM cable glands from OBO. The protection class IP68 is achieved using the integrated sealing lip and the special OBO lamellae technology. Strain relief and leak tightness have been tested according to DIN EN 50262. The connection thread is metric and thus can be used universally. Once screwed down, the installation will last forever: The optimum thread adjustment with the correct pitch ensures vibration resistance on a permanent basis. Applications: From private residential use with cable junction boxes to industrial applications in the distribution cabinet. Temperature usage range -20°C to +65°C.
