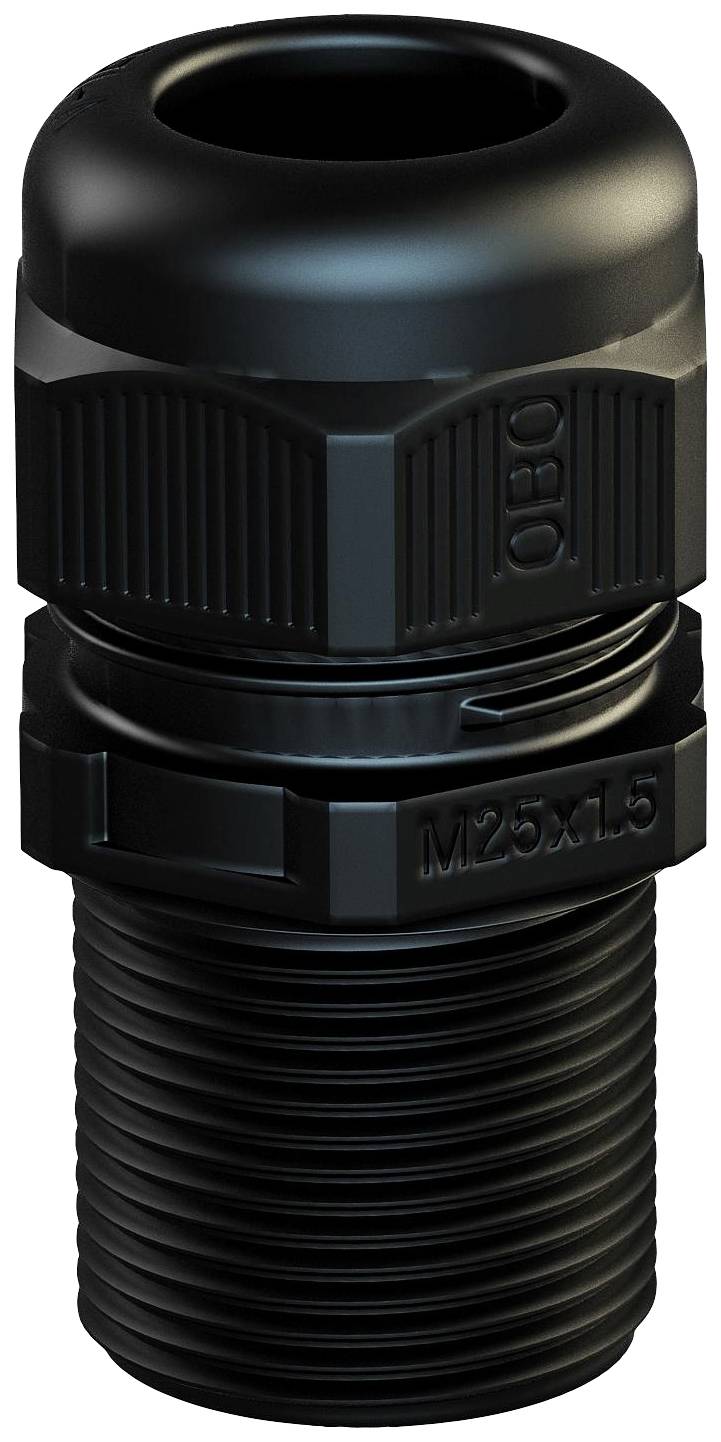

OBO Bettermann 2022991 Cable gland 1.8 mm Plastic, PA Black 20 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Type
Straight
Material
Plastic
PA
Clamp Ø
15 mm
Terminal Ø (max.)
21 mm
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 32
- Suitable for cable diameter: 15 .21 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Colour: Black
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Black
- Internal thread
1.8 mm
- Type
Straight
- Material
Plastic
PA
- Clamp Ø
15 mm
- Terminal Ø (max.)
21 mm
- Thread length
24 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
36 mm
- Halogen-free
Yes
- Content
20 pc(s)
- Manufacturer part #
2022991
- Type
V-TEC VM LL32 SW
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960469 OBO Bettermann 2022991 Cable gland 1.8 mm Plastic, PA Black 20 pc(s)
Description
Robust cable gland with metric connection thread according to IEC 423 in domed cap design for high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Sealing ring made of acrylonitrile butadiene rubber/Polychloropren. Molded shape lip seal between the two fittings, so no connecting thread sealing ring is required, VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar/1 h. Temperature range -20°C to +65°C.
