OBO Bettermann 2054425 61 HSK45 flexible: 0.02-4 mm² fixed: 0.02-2.5 mm² Number of pins: 5 45 pc(s) Transparent
EAN:
Part number:
Item no:
Cross section (flexible) (min.)
0.02 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.02 mm²
Cross section (inflexible) (max.)
2.5 mm²
Number of pins
5
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 45 pc(s))
Total (€ 0.54 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details

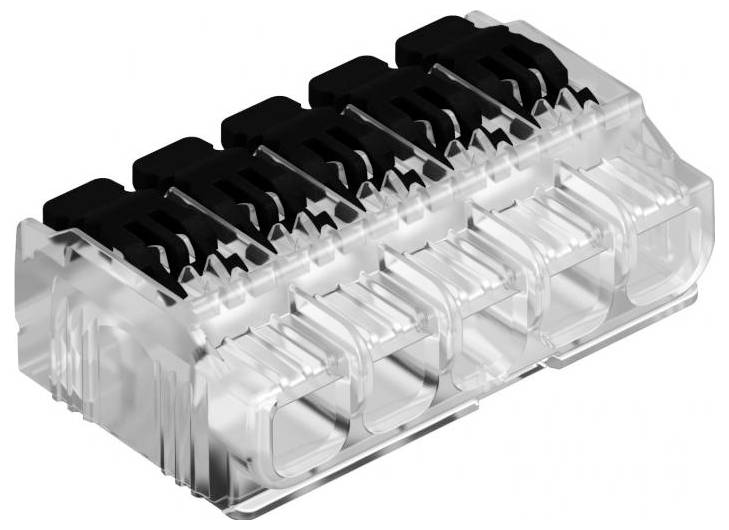

The universal lever-plug terminal
- Easy to use
- Very small dimensions
- Large selection of cross sections
- Up to 24% smaller design than the previous terminals
Technical specifications
- Height: 10.45 mm
- Cross section (flexible) (min.)
0.02 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.02 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
5
- Factory colour
Transparent
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
45 pc(s)

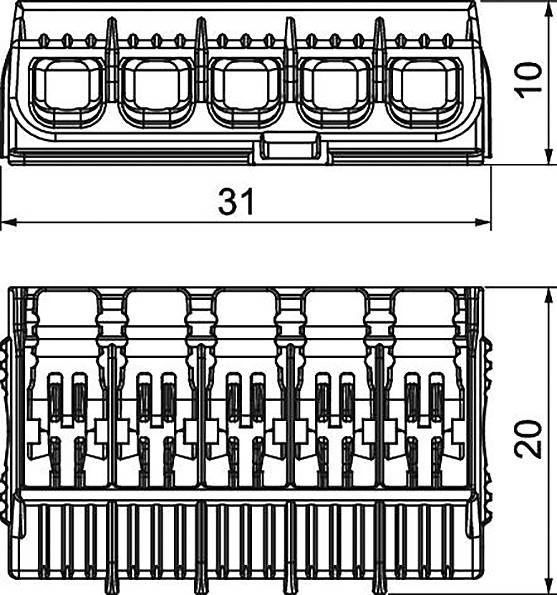

- Dim
(L x W) 19.6 mm x 31.3 mm
- Manufacturer part #
2054425
24 - 12
- Stripping length
9 - 10 mm
- Connection
Pull spring
- Nominal voltage
450 V AC
- Width
31.3 mm
- Length
19.6 mm
- Temperature range
-5 - +85 °C
- Connector clip features
Latch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3474416 OBO Bettermann 2054425 61 HSK45 flexible: 0.02-4 mm² fixed: 0.02-2.5 mm² Number of pins: 5 45 pc(s) Transparent
User & Safety Instructions
User & Safety Instructions 3474416 OBO Bettermann 2054425 61 HSK45 flexible: 0.02-4 mm² fixed: 0.02-2.5 mm² Number of pins: 5 45 pc(s) Transparent
Information
Information 3474416 OBO Bettermann 2054425 61 HSK45 flexible: 0.02-4 mm² fixed: 0.02-2.5 mm² Number of pins: 5 45 pc(s) Transparent
Description
Screwless universal lever terminal for connecting electrical conductors. Suitable for flexible or rigid ladder. With release lever to insert and pull out the conductor. Rigid conductors can be plugged in directly. Stripped insulation length 11-12 mm. Test hole at the top of the terminal, accessible with phase tester and test pin (max. Ø 2 mm). Tested according to the ENEC - method, which ensures compliance with EN 60998 and conforms to VDE certification.
